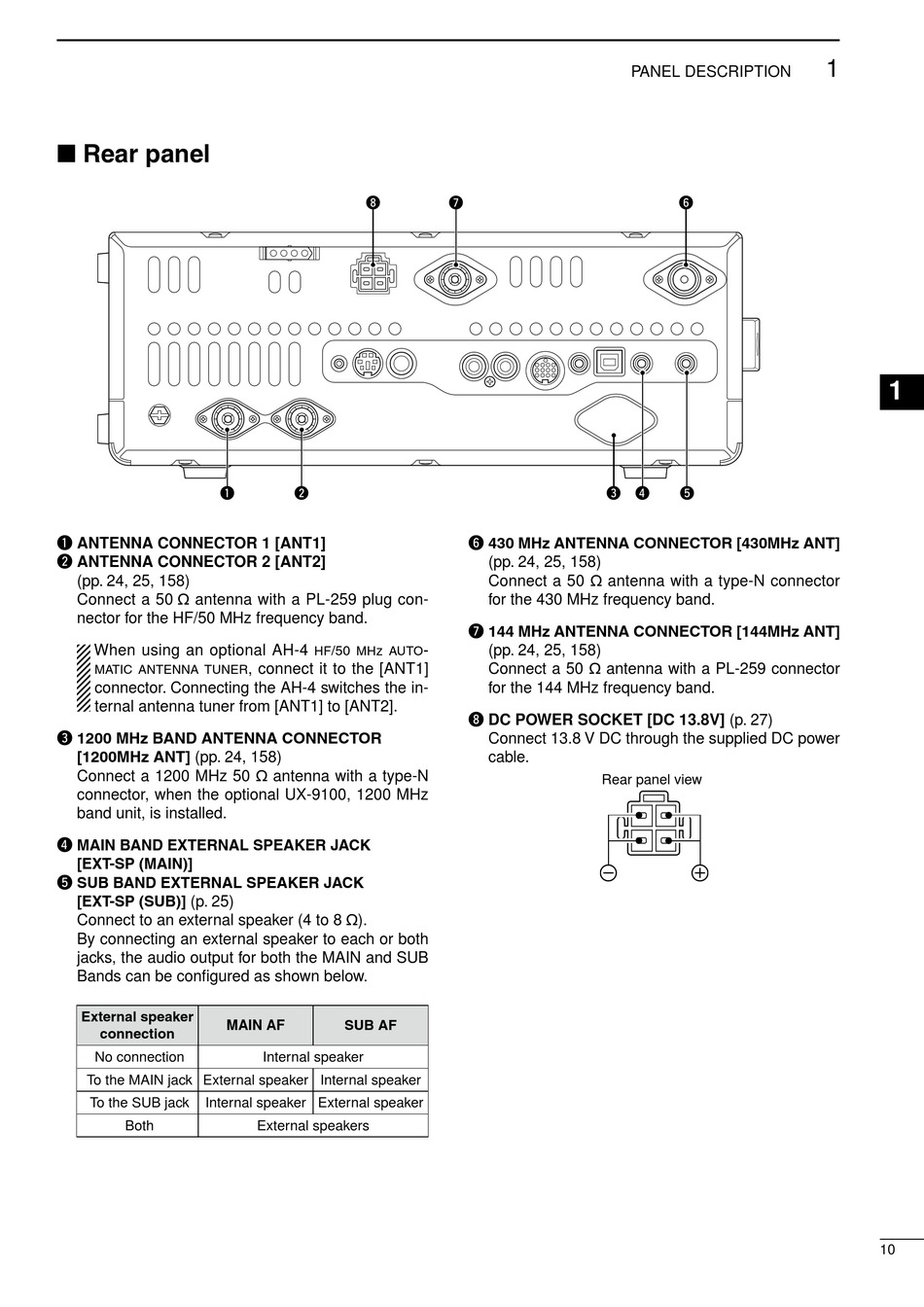

■ Rear panel

q
q ANTENNA CONNECTOR 1 [ANT1]
w ANTENNA CONNECTOR 2 [ANT2]
(pp. 24, 25, 158)
Connect a 50 ø antenna with a PL-259 plug con-
nector for the HF/50 MHz frequency band.
When using an optional AH-4
matic antenna tuner
connector. Connecting the AH-4 switches the in-
ternal antenna tuner from [ANT1] to [ANT2].
e 1200 MHz BAND ANTENNA CONNECTOR
[1200MHz ANT] (pp. 24, 158)
Connect a 1200 MHz 50 ø antenna with a type-N
connector, when the optional UX-9100, 1200 MHz
band unit, is installed.
r MAIN BAND EXTERNAL SPEAKER JACK
[EXT-SP (MAIN)]
t SUB BAND EXTERNAL SPEAKER JACK
[EXT-SP (SUB)] (p. 25)
Connect to an external speaker (4 to 8 ø).
By connecting an external speaker to each or both
jacks, the audio output for both the MAIN and SUB
Bands can be configured as shown below.
External speaker
MAIN AF
connection
No connection
To the MAIN jack External speaker Internal speaker
To the SUB jack Internal speaker External speaker
Both
i
w
/50
hf mh auto
z
, connect it to the [ANT1]
SUB AF
Internal speaker
External speakers
u
y 430 MHz ANTENNA CONNECTOR [430MHz ANT]
(pp. 24, 25, 158)
Connect a 50 ø antenna with a type-N connector
for the 430 MHz frequency band.
u 144 MHz ANTENNA CONNECTOR [144MHz ANT]
-
(pp. 24, 25, 158)
Connect a 50 ø antenna with a PL-259 connector
for the 144 MHz frequency band.
i DC POWER SOCKET [DC 13.8V] (p. 27)
Connect 13.8 V DC through the supplied DC power
cable.
