3. Slide the power supply module into the system until it clicks into place.
4. Secure the power supply with a screw if you plan to ship the system to another
location. See letter "A" in the following figure.

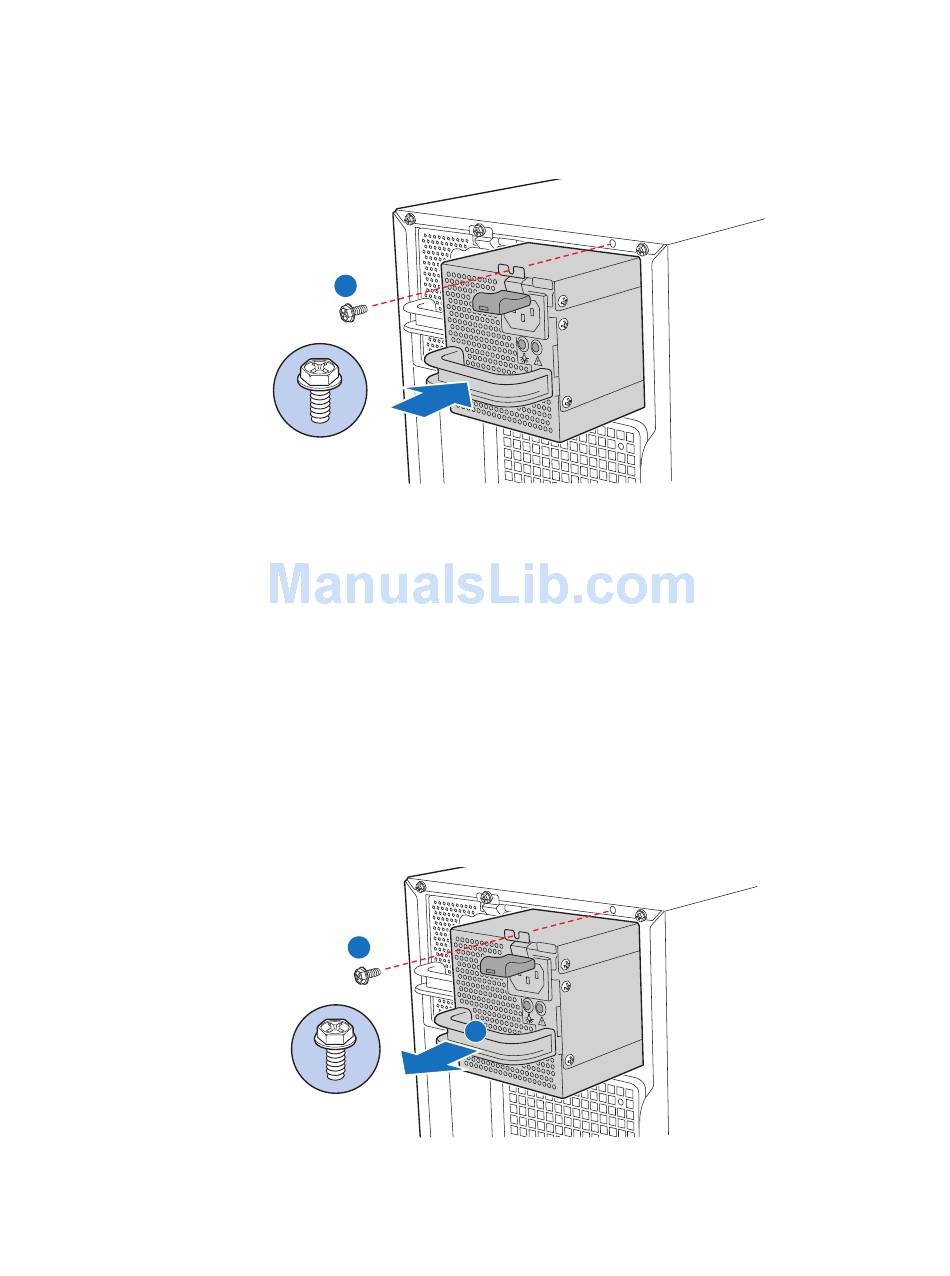

Figure 92. Installing an Additional Hot-swap Power Supply Module

Replacing a Hot-swap Power Supply

Warning: Hazardous voltage, current, and energy levels are present inside the power supply. There
are no user-serviceable parts inside it; servicing should be done by technically qualified
personnel.
1. Remove the power cable from the defective hot swap power supply.
2. If present, remove shipping screw that secures the power supply power supply to
the server system. See letter "A" in the following figure.
3. Press on green latch while pulling on handle to remove power supply from the
server system. See letter "B" in the figure.
86
A
A
B

Figure 93. Removing a Hot-swap Power Supply

AF000956
Intel® Server System SC5400RA User's Guide
AF000603
