Analog Output Units
128

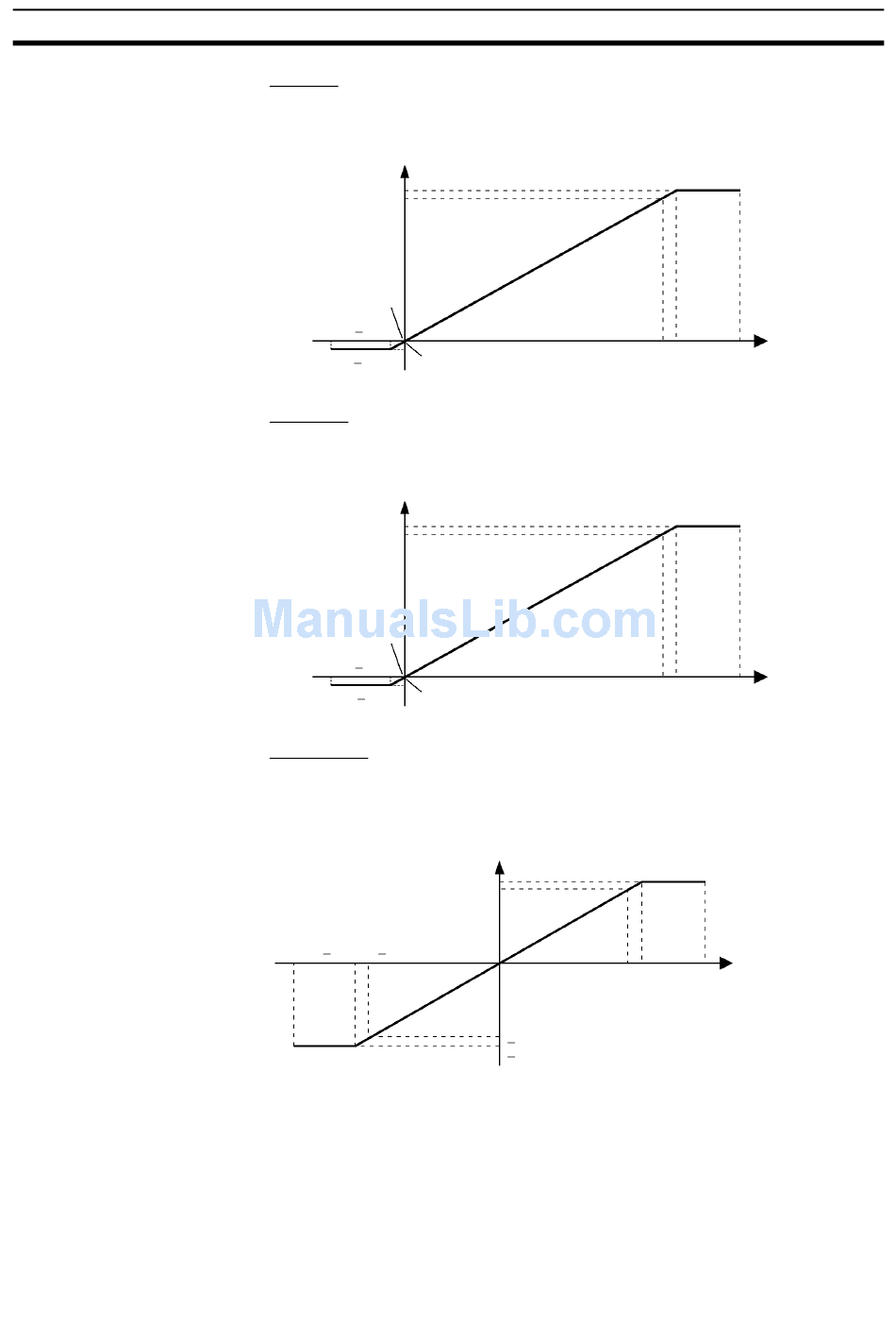

0 to 5 V
The hexadecimal values 0000 to 1770 (0 to 6000) correspond to an analog
voltage range of 0 to 5 V. The entire output range is –0.25 to 5.25 V.
Voltage
5.25 V
5 V
0 V
8000 FED4 ( 300)
0000 (0)
0.25 V
0 to 10 V
The hexadecimal values 0000 to 1770 (0 to 6000) correspond to an analog
voltage range of 0 to 10 V. The entire output range is –0.5 to 10.5 V.
Voltage
10.5 V
10 V
0 V
8000 FED4 ( 300)
0000 (0)
0.5 V
–10 to 10 V
The hexadecimal values F448 to 0BB8 (–3000 to 3000) correspond to an ana-
log voltage range of –10 to 10 V. The entire output range is –11 to 11 V. Spec-
ify a negative voltage as a two's complement (16 bits).
F31C F448
( 3300) ( 3000) 0000 (0)
8000
1770
(6000)
1770
(6000)
Voltage
11 V
10 V
0 V
0BB8
(3000)
10 V
11 V
Section 5-2
Converted
data
189C
7FFF
Hexadecimal
(6300)
(Decimal)
Converted
data
189C
7FFF
Hexadecimal
(6300)
(Decimal)
Converted data
Hexadecimal
0CE4
7FFF
(Decimal)
(3300)
