Analog Output Units
Clearing Offset and Gain
Settings

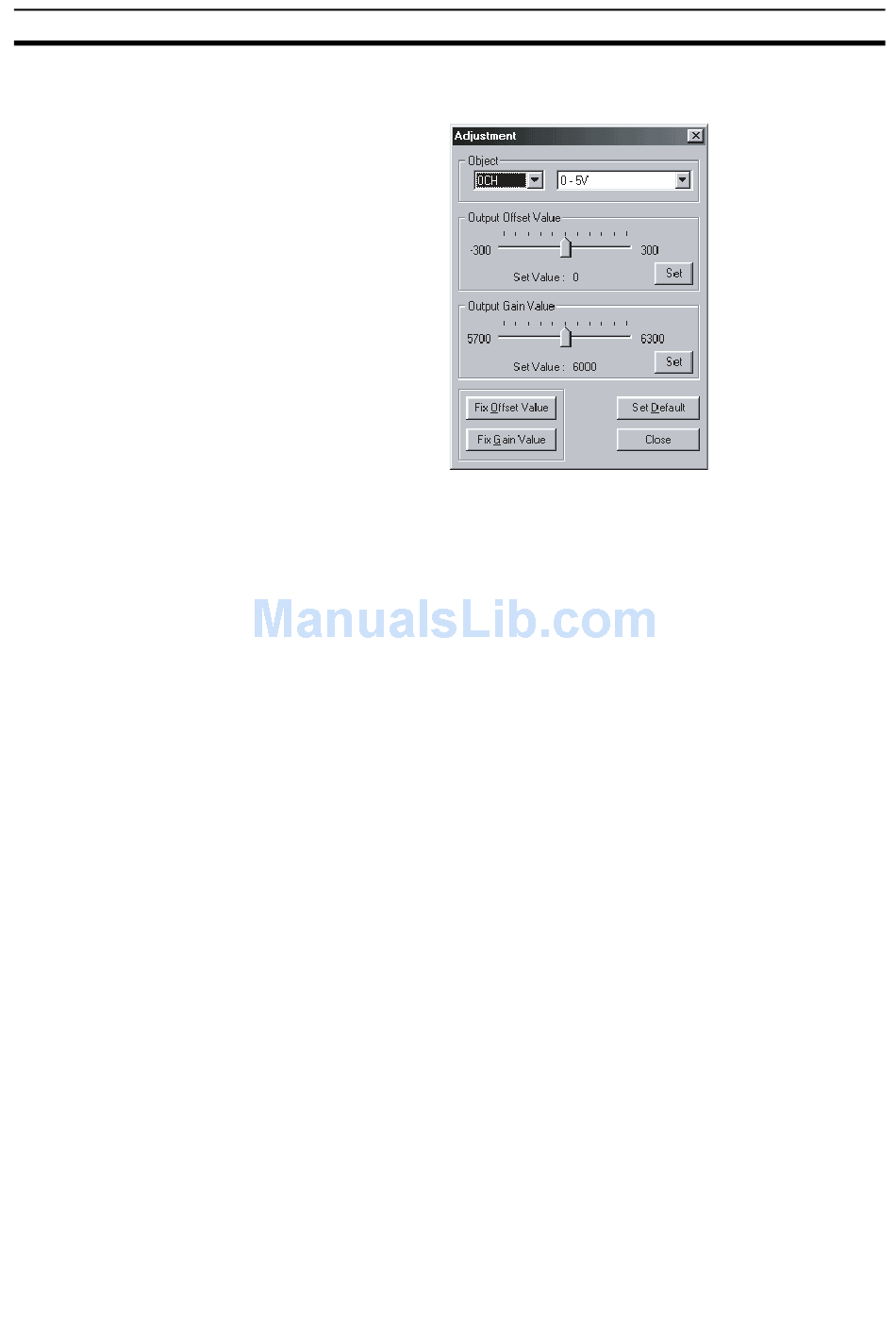

11. Click Fix Gain Value when the voltage output or current output is correct
for 100%.
The gain value set using the slider bar will be stored in the EEPROM in the
Analog Output Unit. Reset the Unit to enable the new setting.
12. Repeat steps 7 to 11 to adjust other outputs as necessary.
13. When you have completed all the adjustments, click Close. A message
asking if you want to reset will appear. Click Yes. The Communications Unit
and all I/O Units connected to it will be reset, and the new settings will be
enabled.
All offset and gain settings in the Analog Output Unit can be cleared at once.
Use the following procedure to clear the offset and gain settings stored in the
EEPROM in the Analog Output Unit. The DeviceNet and the MULTIPLE I/O
TERMINAL must be connected first.
Note The offset and gain can be adjusted only with a Configurator Ver. 1.20 or later.
1,2,3... 1. Turn ON the power supply for all the Units of the MULTIPLE I/O TERMI-
NAL, including the Communications Unit and the Analog Output Unit to be
cleared.
2. Connect the Configurator to the DeviceNet network and go online.
Section 5-2
145
