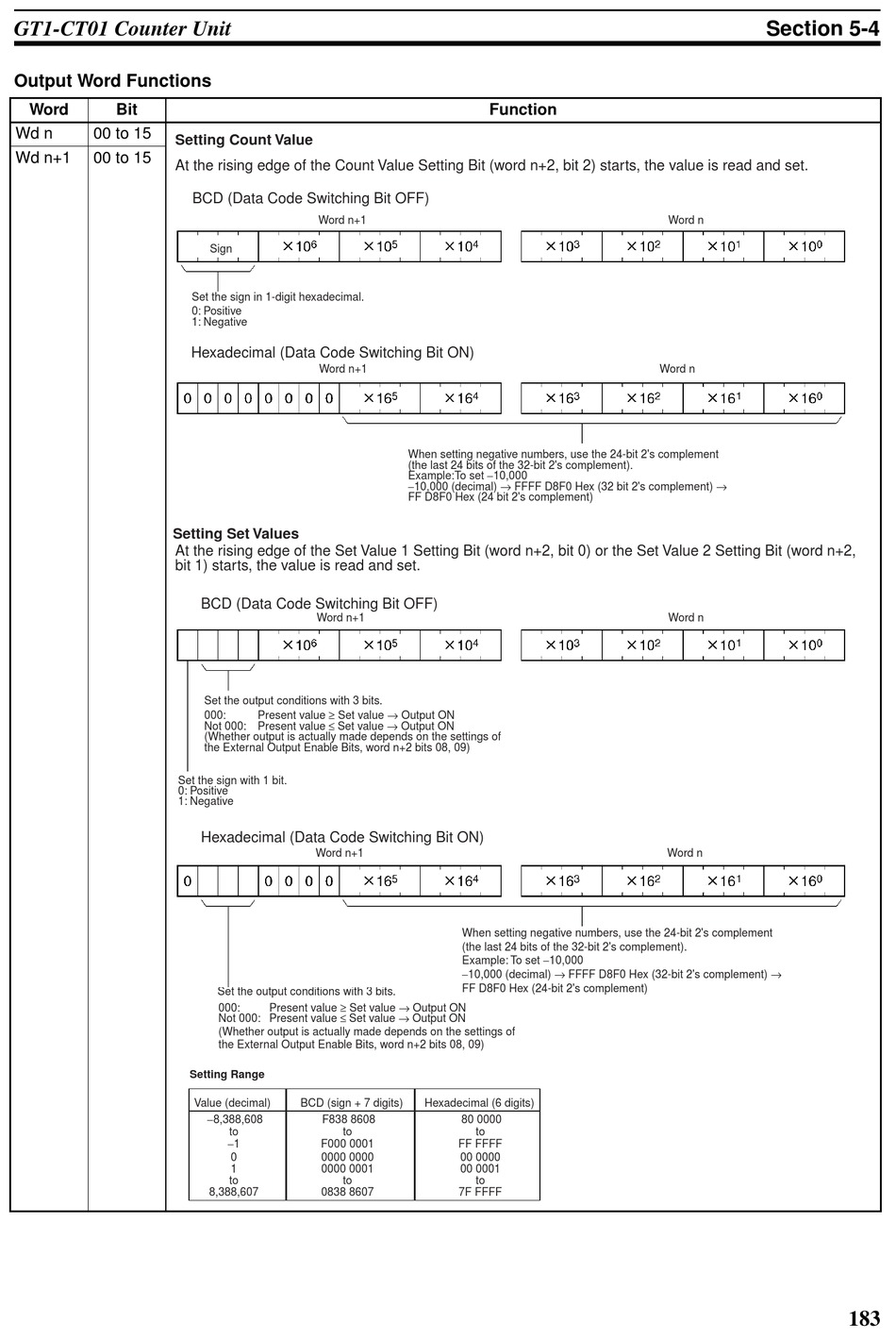

Omron DEVICENET#05-2003 Operation Manual page 193

GT1-CT01 Counter Unit
Output Word Functions
Word Bit
Wd n 00 to 15
Setting Count Value
Wd n+1 00 to 15
At the rising edge of the Count Value Setting Bit (word n+2, bit 2) starts, the value is read and set.
Setting Set Values
At the rising edge of the Set Value 1 Setting Bit (word n+2, bit 0) or the Set Value 2 Setting Bit (word n+2,
bit 1) starts, the value is read and set.
Set the sign with 1 bit.
0: Positive
1: Negative
BCD (Data Code Switching Bit OFF)
Word n+1
Sign
Set the sign in 1-digit hexadecimal.
0: Positive
1: Negative
Hexadecimal (Data Code Switching Bit ON)
Word n+1
BCD (Data Code Switching Bit OFF)
Word n+1
Set the output conditions with 3 bits.
000: Present value Set value
Not 000: Present value Set value
(Whether output is actually made depends on the settings of
the External Output Enable Bits, word n+2 bits 08, 09)
Hexadecimal (Data Code Switching Bit ON)
Word n+1
Set the output conditions with 3 bits.
000: Present value Set value
Not 000: Present value Set value
(Whether output is actually made depends on the settings of
the External Output Enable Bits, word n+2 bits 08, 09)
Setting Range
Value (decimal) BCD (sign + 7 digits)
8,388,608 F838 8608
to to
1 F000 0001
0 0000 0000
1 0000 0001
to to
8,388,607 0838 8607
Function
When setting negative numbers, use the 24-bit 2's complement
(the last 24 bits of the 32-bit 2's complement).
Example:To set 10,000
10,000 (decimal) FFFF D8F0 Hex (32 bit 2's complement)
FF D8F0 Hex (24 bit 2's complement)
Output ON
Output ON
When setting negative numbers, use the 24-bit 2's complement
When setting negative numbers, use the 24-bit 2's complement
(the last 24 bits of the 32-bit 2's complement). (the last 24 bits of the 32-bit 2's complement).
Example:To set -10,000
Example: To set 10,000
-10,000 (decimal) " FFFF D8F0 Hex (32-bit 2's complement) "
10,000 (decimal) FFFF D8F0 Hex (32-bit 2's complement)
FF D8F0 Hex (24-bit 2's complement)
FF D8F0 Hex (24-bit 2's complement)
Output ON
Output ON
Hexadecimal (6 digits)
80 0000
to
FF FFFF
00 0000
00 0001
to
7F FFFF
Section 5-4
Word n
Word n
Word n
Word n
183
