GT1-CT01 Counter Unit
Procedure Example
Dimensions
This section provides a procedure example starting from the settings of the
Counter Unit up to the outputting of comparison results.
This example only provides the basic procedure. For details about actual set-
ting and programming, refer to page 182, Word Functions or 3-1 Examples of
Counter Unit Operation.

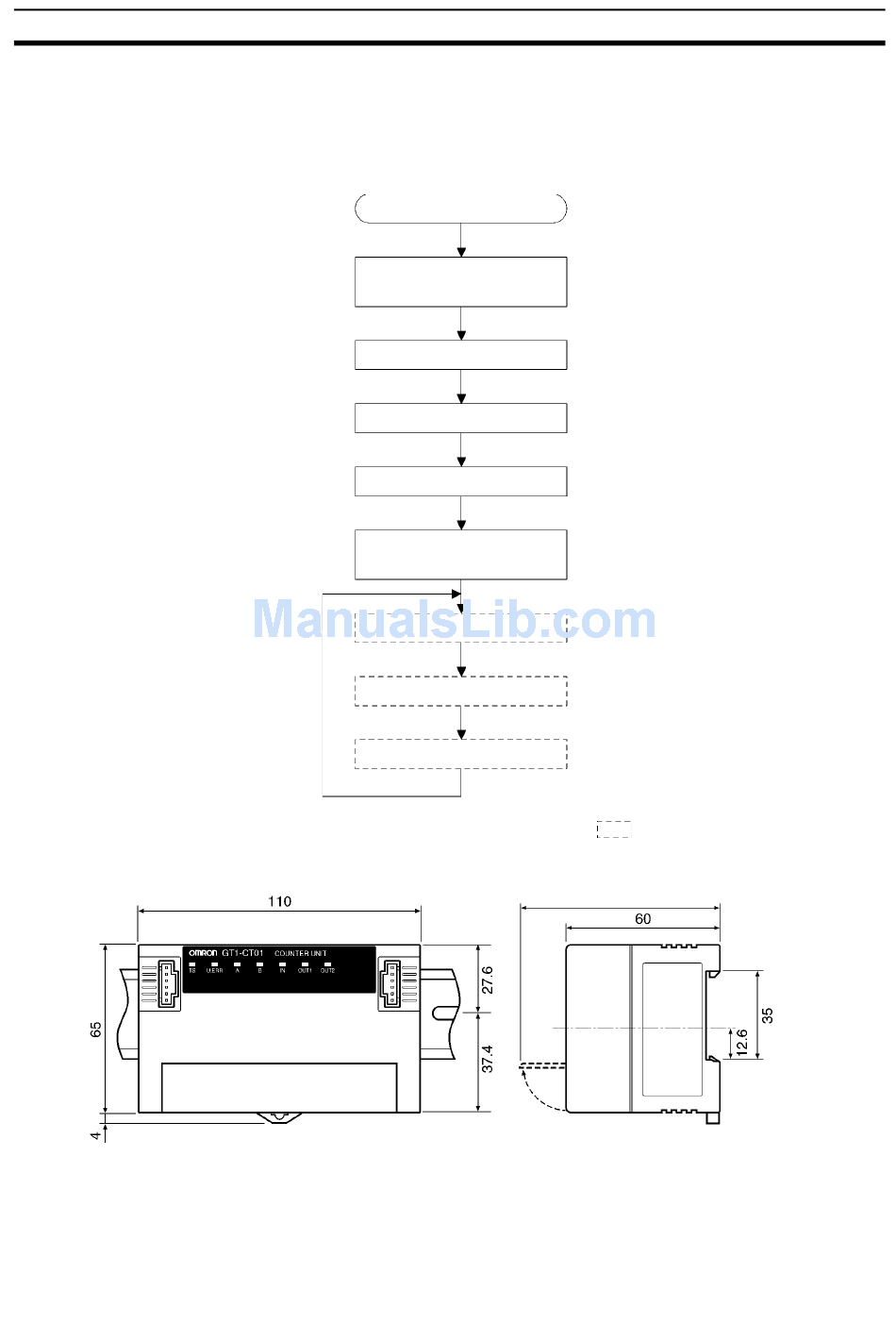

Set value 1, 2 setting
(Set values and output
conditions)
Count value setting
External output 1, 2
enable/disable setting
Reset mode selection
Count mode selection
(count start)
Count value/set value reading
Count value reset
Count value change
Note The vertical center of the Unit is 4.9 mm lower than the center of the DIN
track. The Unit therefore extends downward 41.4 mm (including the mounting
hook) from the DIN track center.
Counter Unit startup
Words n, n+1, n+2, bits 00, 01
(Refer to page 181.)
Words n, n+1, n+2, bit 02
(Refer to page 180.)
Word n+2, bits 08, 09
(Refer to page 178.)
Word n+2, bits 12 to 14
(Refer to page 179.)
Word n+2, bits 10, 11
(Refer to page 177.)
Word n+2, bits 04 to 06, words m, m+1
(Refer to page 181.)
(Refer to page 179.)
Words n, n+1, n+2, bit 02
(Refer to page 180.)
: Perform as necessary
Approx. 70
(Unit: mm)
