Relay Output Units

4-5-1

GT1-ROP08 Relay Output Unit with Power Relay

Output Specifications

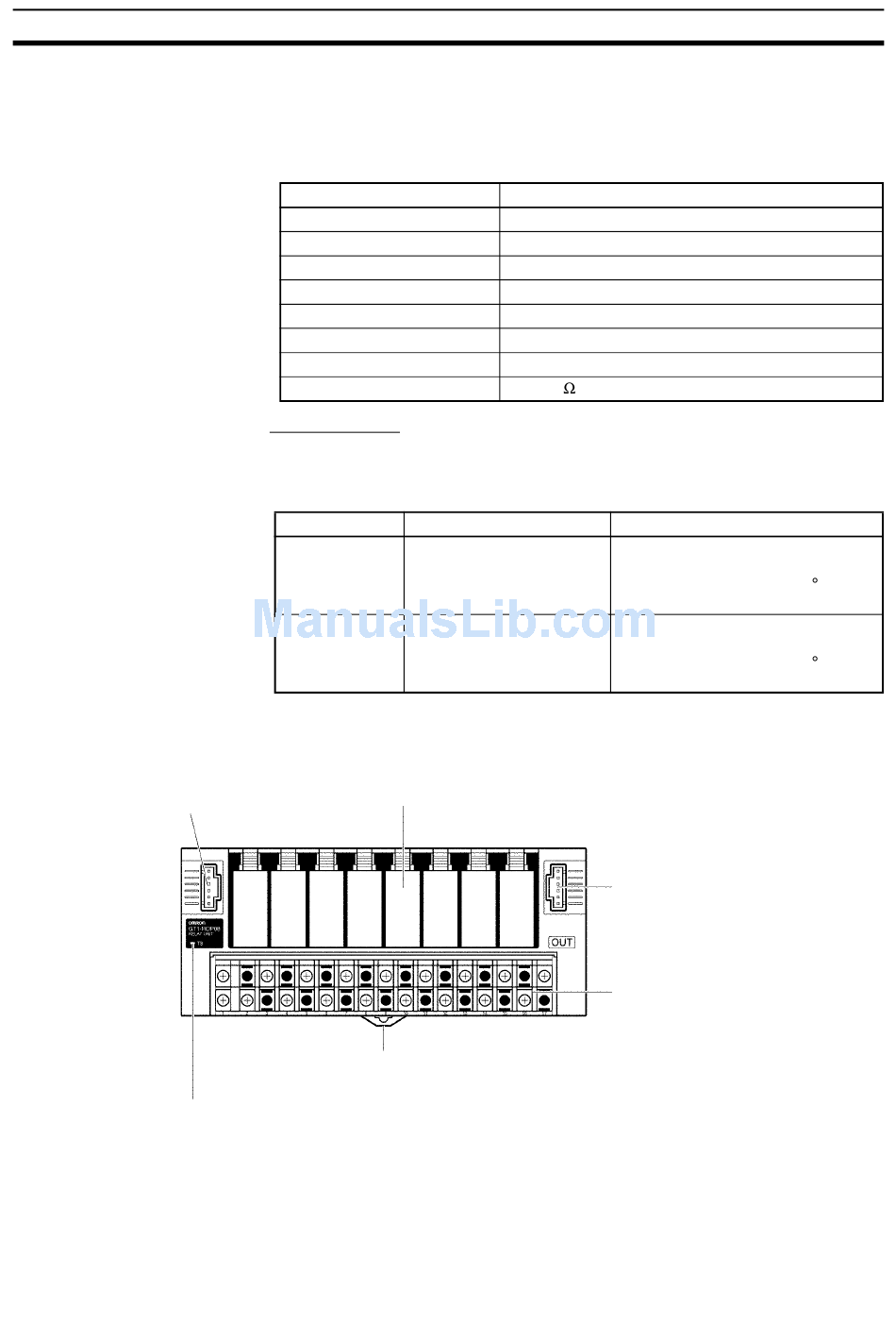

Components
I/O Unit Interface
Communications Connector 1
(on the Communications Unit side)
90
Number of outputs
Relay
Rated load (resistive load)
Rated thermal current
Maximum switching voltage
Maximum switching current
Minimum permissible load
Insulation resistance
Reference Data
For details about the Relay characteristics, refer to G2R-1-SN in the PCB
Relays Catalog (X033). The following table shows the life expectancy for the
G2R-1-SN Relay.
Item
Mechanical life
expectancy
Electrical life
expectancy
Power Relays (G2R-1-SN)
In each Relay, there is an indicator that displays the status of
the output, and it is lit when the output is ON.
If a Relay malfunctions, it can be replaced individually.
(Refer to page 200.)
TS Indicator
Note For details on how to replace Relays, refer to page 206.
Item
8 points
Power Relay (G2R-1-SN)
5 A at 250 VAC/5 A at 30 VDC
5 A
250 VAC/125 VDC
5 A
100 mA at 5 VDC (P level reference value)
1,000 M
Number of operations
20,000,000 operations min. Switching frequency: 18,000 times/
100,000 operations min.
DIN Track Mounting Hook
Section 4-5
Specifications
Notes
hour
(At ambient temperature 23 C with
rated load)
Switching frequency: 1,800 times/
hour
(At ambient temperature 23 C with
rated load)
I/O Unit Interface
Communications Connector 2
(on the terminator side)
Terminal Block
