Serial Communications Board
2-6-4

System Configuration

The following serial communications modes are supported by the Serial Com-
munications Board: Host Link (SYSMAC WAY), protocol macro, no-protocol,
1:1 Data Links, 1:N-mode NT Link, and 1:1-mode NT Link modes. The

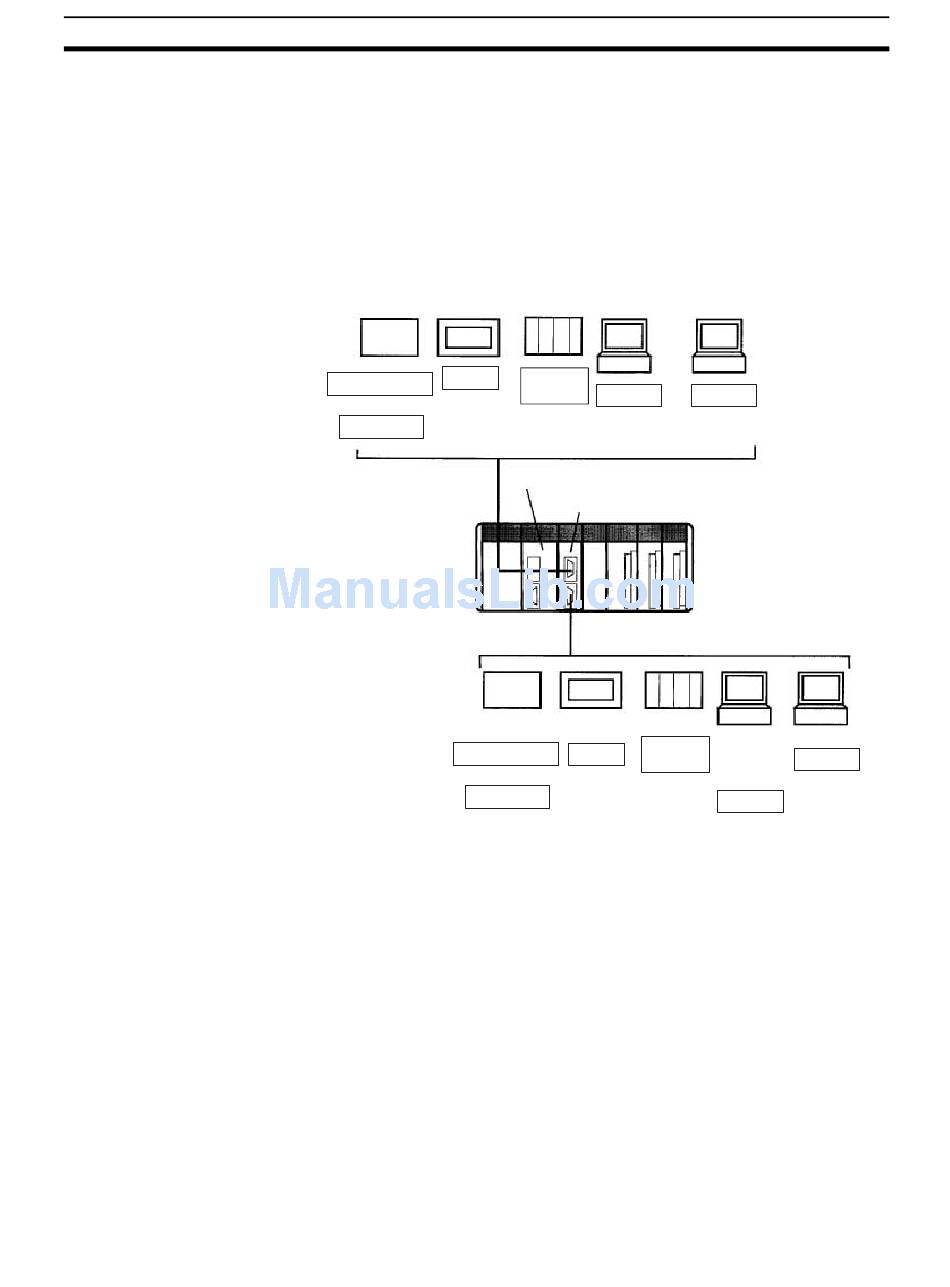

devices shown in the following diagram can be connected.
Note The 1:1-mode NT Link and 1:N-mode NT Link communications modes use
different protocols that are not compatible with each other.
General-purpose
external device
Protocol macros
No-protocol
RS-232C
Note An NT-AL001-E Converting Link Adapter can be used to convert between RS-
232C and RS-422A/485. This Link Adapter requires a 5-V power supply.
Power is provided by the RS-232C port on the Serial Communications Board
when the Link Adapter is connected to it, but must be provided separately
when connecting the Link Adapter to other devices.
Programming
Device
(excluding
Programmable
Programming
Terminal (PT)
Console)
C-series PC
NT Link
1:1
Data Link
Host Link
CQM1H-series CPU Unit
Serial Communications Board
RS-422A/485
General-purpose Programmable
external device Terminal (PT)
Protocol macros
NT Link
No-protocol
Section 2-6
Host computer
Host Link
C-series PC
Programming Host computer
1:1 Device
(excluding
Host Link
Data Link
Programming
Console)
Host Link
143
