III. INSTALLATION

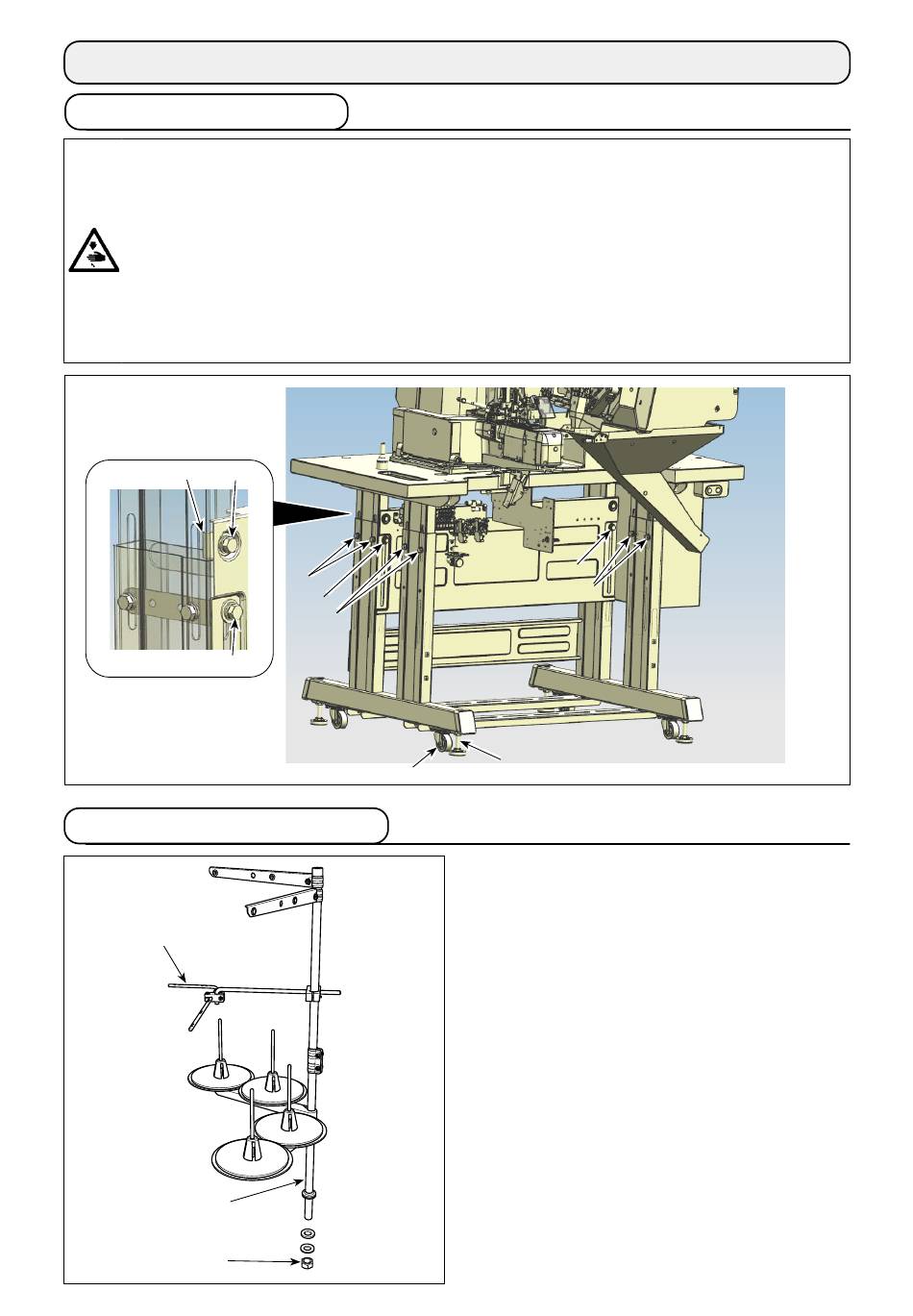

1. Fixing the table stand

WARNING
1. To prevent an accident resulting in injury or death, move the machine first to a horizontal
and stable place. Then, lower adjuster bolts ❷ (at four locations) located at the side of
casters ❶ to secure the machine.
2. If you want to increase the height of the table stand, loosen fixing bolts ❸ and ❹ of the
table stand and adjust the table stand height.
If you want to lower the table stand, remove fixing bolt ❺ and nut ❻ , loosen fixing bolts
❸ and ❹ and adjust the table stand height. (Keep ❺ and ❻ so that they are not lost.)
After you have adjusted the table stand height, make sure that the top surface of the table is level.
If the fixing bolts are left loosened, there will be a risk of sudden falling of the table stand.
Be sure to carry out the work very carefully with four or more workers.
❻ ❻ ❺ ❺
❹ ❹

2. Installing the thread stand

❸ ❸
❷ ❷
❶ ❶
❸ ❸
❹ ❹
❸ ❸
❶ ❶
– 4 –
❹ ❹
❸ ❸
❷ ❷
1) Assemble the thread stand and set it in the hole
located in the upper right of the machine table.
2) Tighten locknut ❶ to fix the thread stand.
3) Attach the thread guide arm (asm.) ❸ to the
thread stand.
4) When ceiling wiring is possible,pass the power
cord through spool rest rod ❷ .
