Removing An Internal Disk - Fujitsu Oracle M10-1 Service Manual

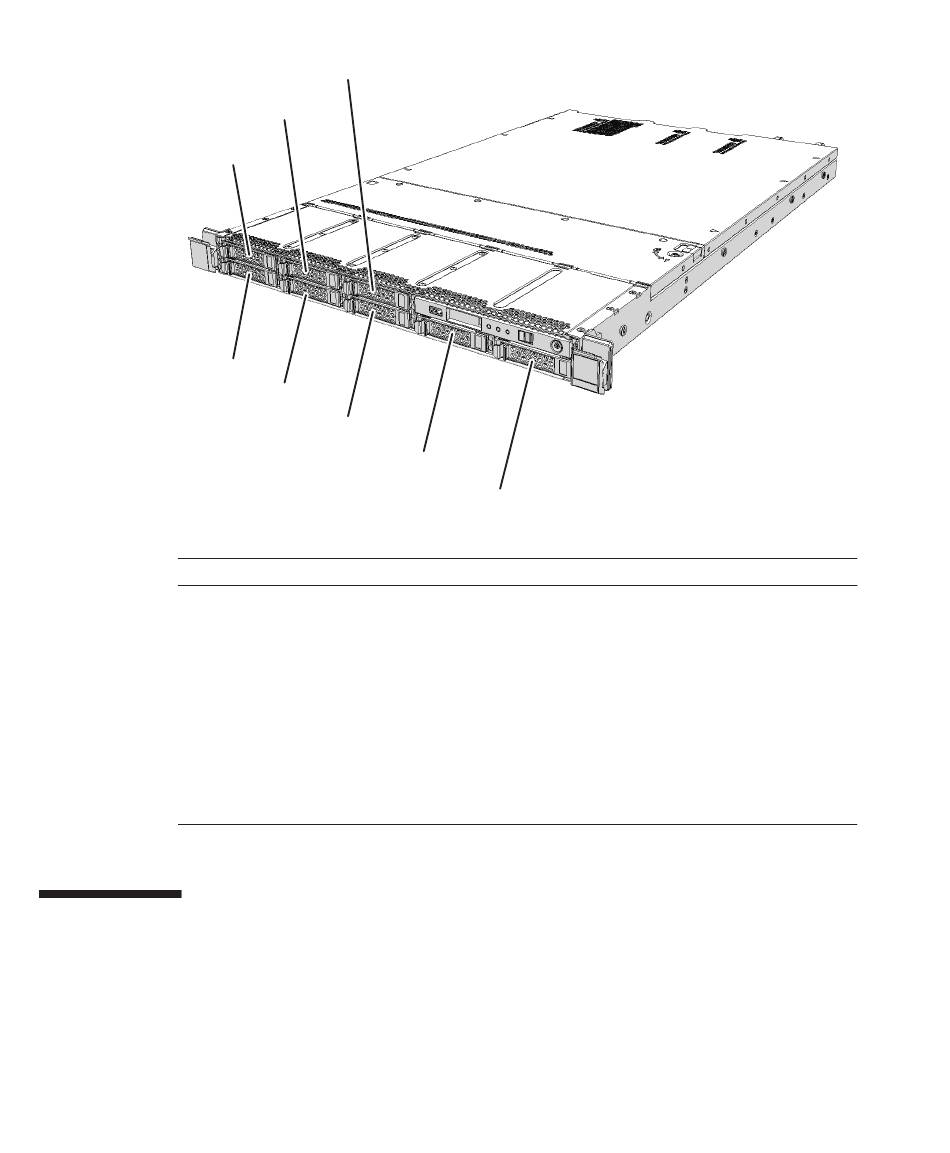

Figure 9-1 Location of internal disks
Location number
1
2
3
4
5
6
7
8
9.3

Removing an Internal Disk

This section describes the procedures for removing internal disks. Perform reduction
using the same procedure.
For expansion, remove the internal disk filler unit from the slot in which the internal
disk is to be installed.
Make the internal disk ready for removal before attempting to remove it. For details,
130 Fujitsu M10-1/SPARC M10-1 Service Manual ･ June 2021
(6)
(4)
(2)
(1)
(3)
(5)
Component
Internal disk (HDD#0)
Internal disk (HDD#1)
Internal disk (HDD#2)
Internal disk (HDD#3)
Internal disk (HDD#4)
Internal disk (HDD#5)
Internal disk (HDD#6)
Internal disk (HDD#7)
(7)
(8)
