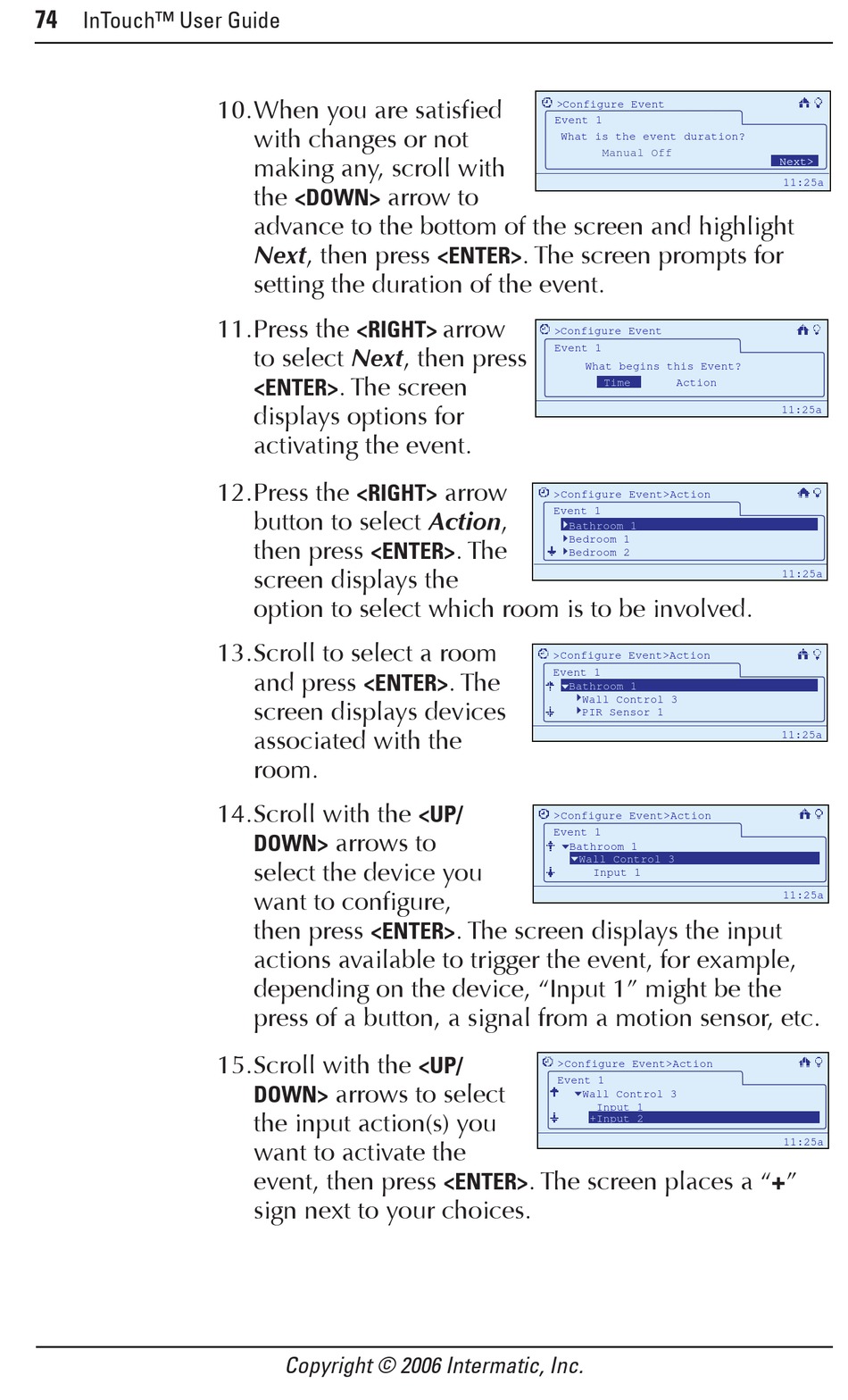

InTouch™ User Guide
10. When you are satisfied
with changes or not
making any, scroll with
the
<DOWN>
advance to the bottom of the screen and highlight
Next, then press
setting the duration of the event.
11. Press the
<RIGHT>
to select Next, then press
. The screen
<ENTER>
displays options for
activating the event.
12. Press the
<RIGHT>
button to select Action,
then press
<ENTER>
screen displays the
option to select which room is to be involved.
13. Scroll to select a room
and press
<ENTER>
screen displays devices
associated with the
room.
14. Scroll with the
arrows to
DOWN>
select the device you
want to configure,
then press
<ENTER>
actions available to trigger the event, for example,
depending on the device, "Input 1" might be the
press of a button, a signal from a motion sensor, etc.
15. Scroll with the
arrows to select
DOWN>
the input action(s) you
want to activate the
event, then press
sign next to your choices.
