InTouch™ User Guide
NOTE: If you pause for more than 30 seconds during
the programming procedure, the In-Wall Master
Controller will time out and exit programming mode.
Begin at the InTouch Home
Screen as shown.

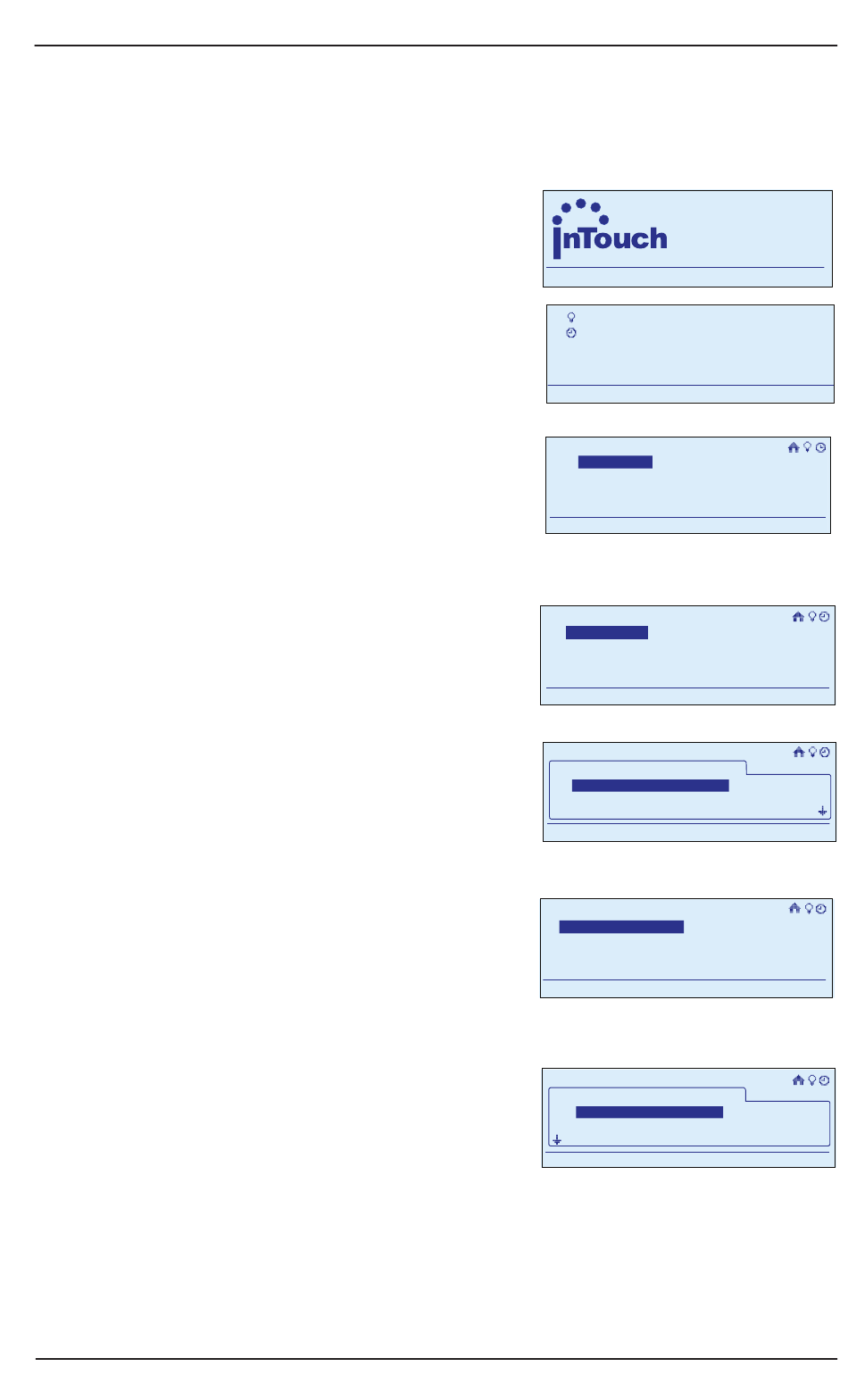

1. Press
<ENTER>
displays the Main Menu.
2. Scroll with the
arrows to select Setup,
then press
<ENTER>
screen displays system
setup options.
3. Select Setup Home, then
press
<ENTER>
displays options for
setting up the home.
Select Edit Rooms, then
4.
press
<ENTER>
displays the list of the
rooms you have created
for the house.
5. Select the room from
which you want to
remove a device and
press
<ENTER>
displays the options for editing the room.
Select Remove Device
6.
and press
<ENTER>
screen displays the room's
devices.
7. Select the device you want to remove as shown and
press
<ENTER>
device. The device is returned to the "Unassigned"
room, ready for assignment to another room.
