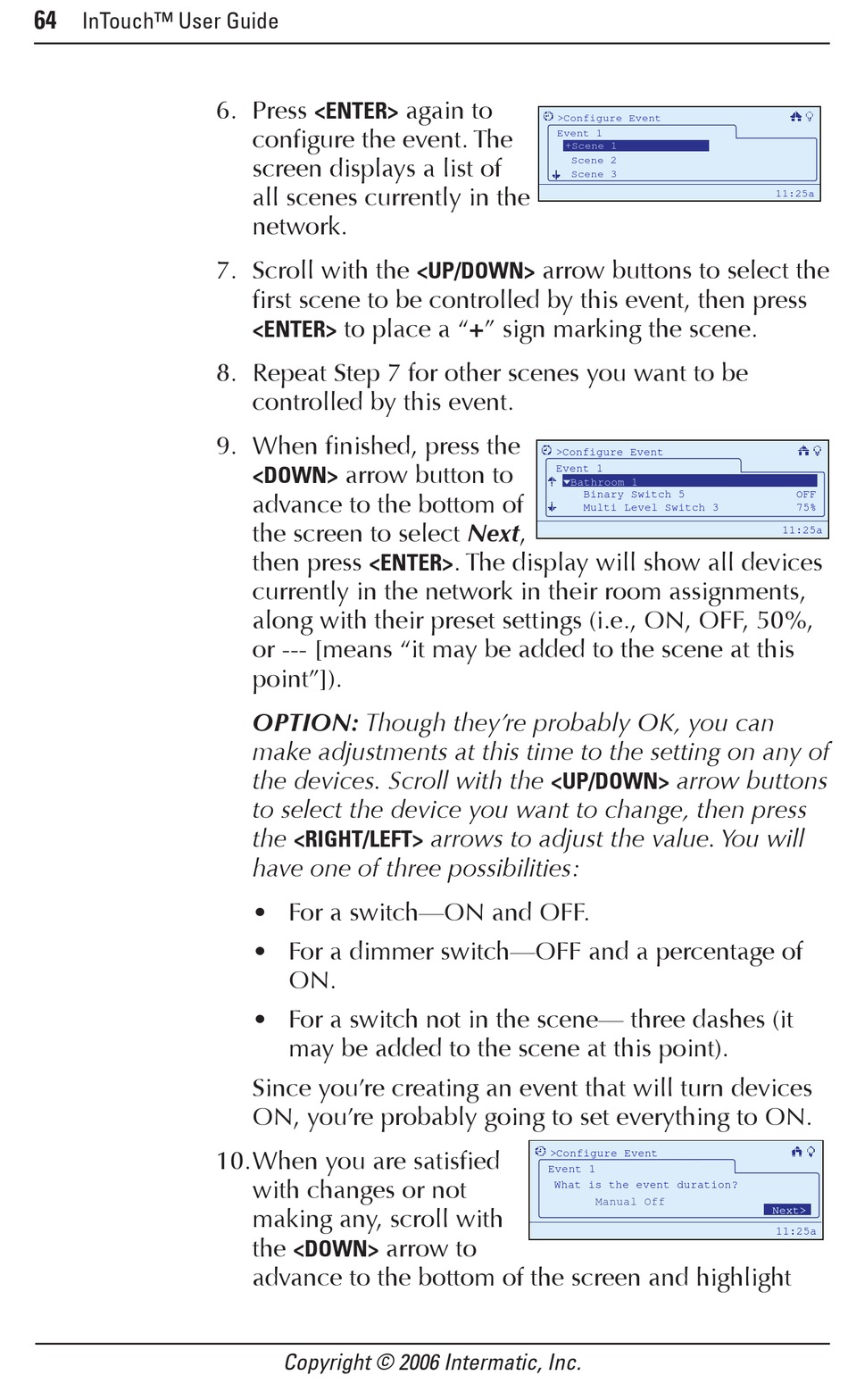

Intermatic InTouch CA5500R User Manual page 64


InTouch™ User Guide
6. Press
<ENTER>
configure the event. The
screen displays a list of
all scenes currently in the
network.
7. Scroll with the
first scene to be controlled by this event, then press
to place a "+" sign marking the scene.
<ENTER>
8. Repeat Step 7 for other scenes you want to be
controlled by this event.
9. When finished, press the
arrow button to
<DOWN>
advance to the bottom of
the screen to select Next,
then press
<ENTER>
currently in the network in their room assignments,
along with their preset settings (i.e., ON, OFF, 50%,
or --- [means "it may be added to the scene at this
point"]).
OPTION: Though they're probably OK, you can
make adjustments at this time to the setting on any of
the devices. Scroll with the
to select the device you want to change, then press
the
<RIGHT/LEFT>
have one of three possibilities:
• For a switch—ON and OFF.
• For a dimmer switch—OFF and a percentage of
ON.
• For a switch not in the scene— three dashes (it
may be added to the scene at this point).
Since you're creating an event that will turn devices
ON, you're probably going to set everything to ON.
10. When you are satisfied
with changes or not
making any, scroll with
the
<DOWN>
advance to the bottom of the screen and highlight
Copyright © 2006 Intermatic, Inc.
again to
arrow buttons to select the
<UP/DOWN>
. The display will show all devices
arrows to adjust the value. You will
arrow to
>Configure Event >Configure Event
Event 1 Event 1
+Scene 1 +Scene 1
Scene 2 Scene 2
Scene 3 Scene 3
>Configure Event >Configure Event
Event 1 Event 1
Bathroom1 Bathroom1
Bathroom 1 Bathroom 1
Binary Switch 5 Binary Switch 5
Multi Level Switch 3 Multi Level Switch 3
arrow buttons
<UP/DOWN>
>Configure Event >Configure Event
Event 1 Event 1
What is the event duration? What is the event duration?
Manual Off Manual Off
11:25a 11:25a
OFF OFF
75% 75%
11:25a 11:25a
Next> Next> Next> Next>
11:25a 11:25a
