Schematic

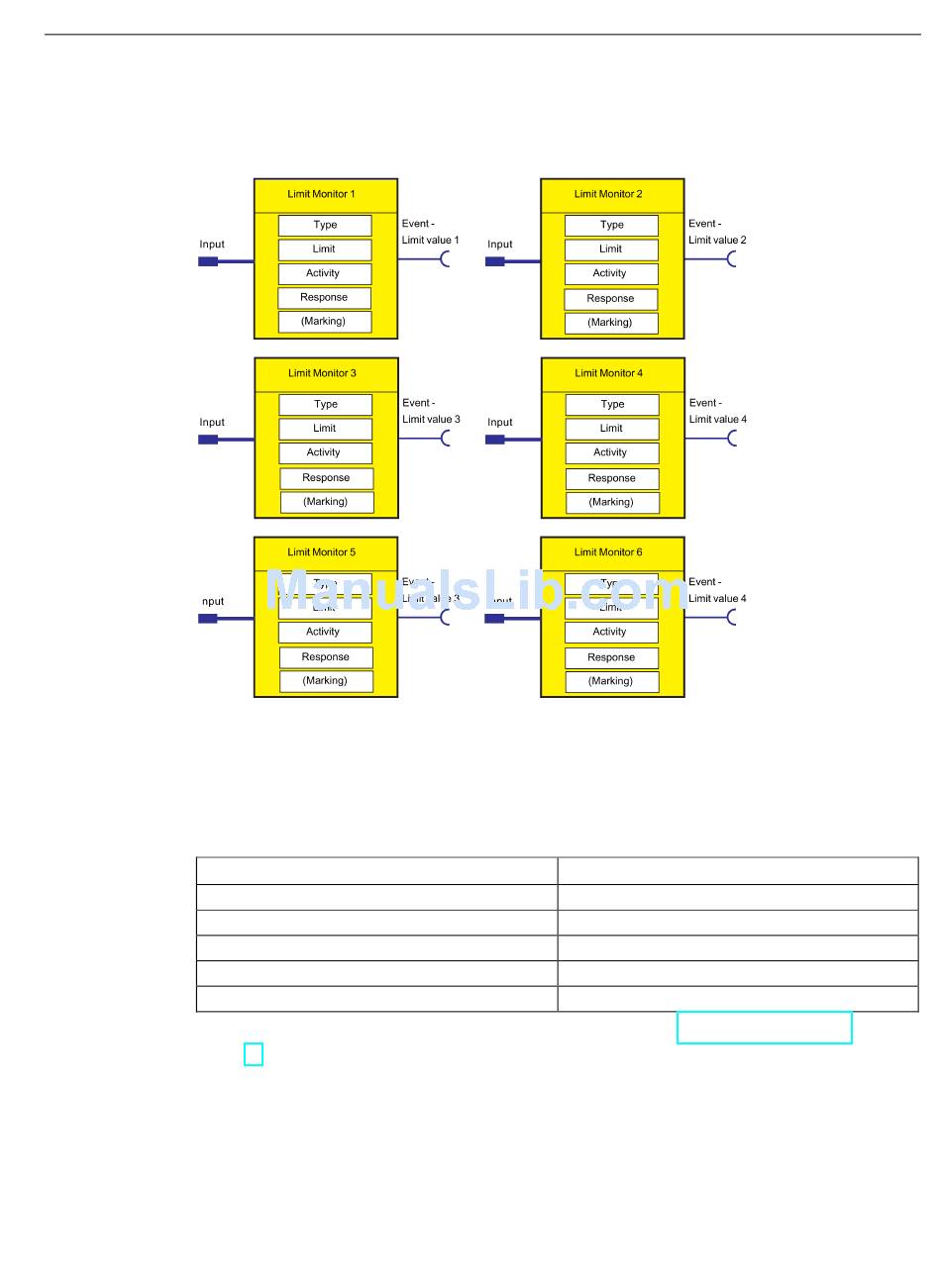

The following schematic shows the "Limit monitor" logic modules:
Figure 4-105 "Limit Monitor" logic modules
Response
Table 4- 96
Response
tripping
warn
signaling
disabled
delay
See also "Tables of responses of SIMOCODE pro" in Chapter Important information
(Page 7).
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Limit monitor response
Limits 1 to 6
—
—
X (d)
—
0 to 25.5 s (default: 0.5 s)
Parameters
