Schematic

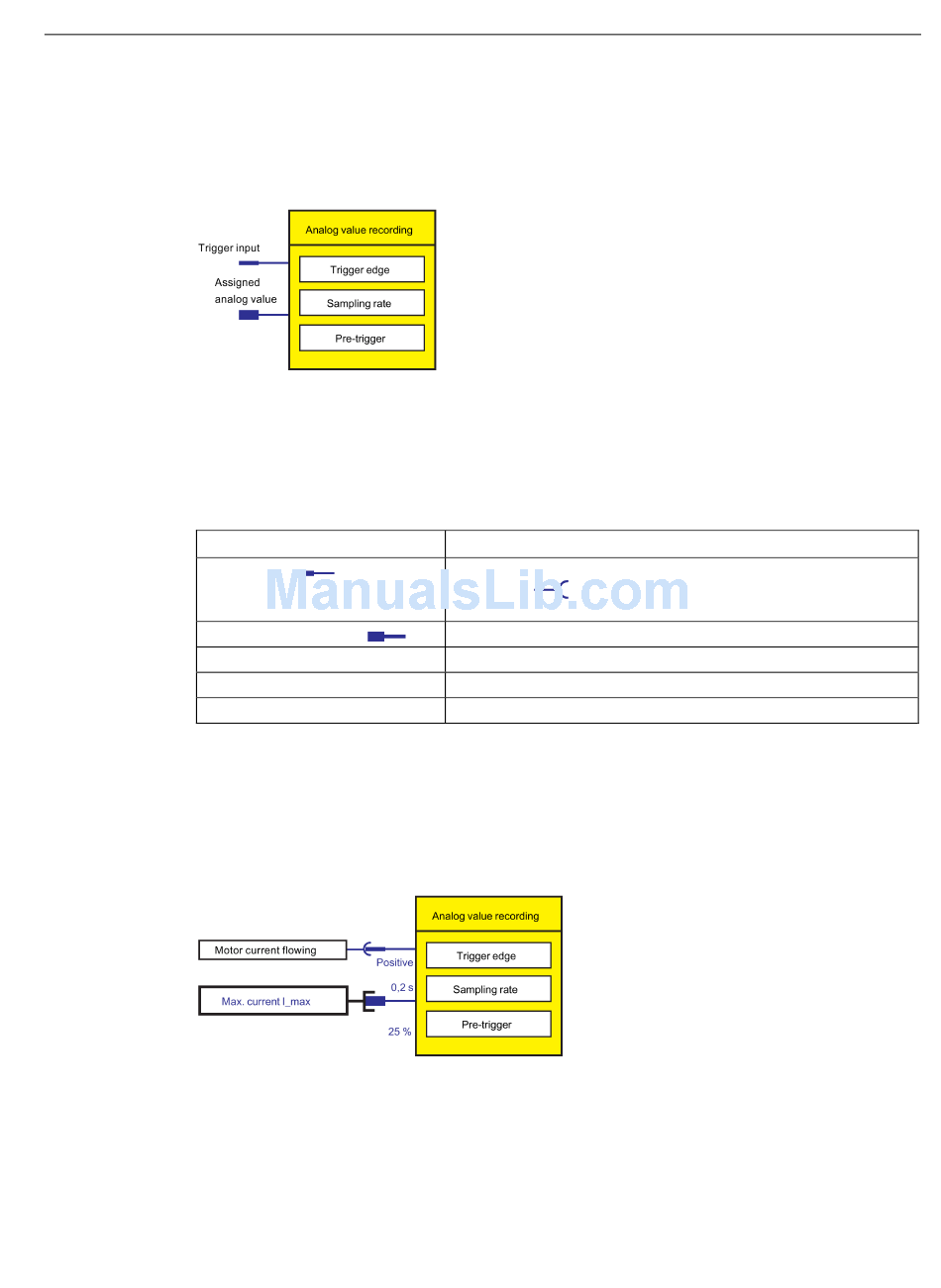

The following schematic shows the "Analog Value Recording" function block:
Figure 4-73
Settings
Table 4- 66
Signal / value
Trigger input
Allocated analog value
Trigger edge
Sampling rate
Pre-trigger
Application example
Record the motor current when the motor starts / sampling time = 12 s / pre-trigger = 25 %
(3 s):
Figure 4-74
SIMOCODE pro - Parameterize
Operating Manual, 04/2017, A5E40507630002A/RS-AA/001
Schematic of the "Analog Value Recording" function block
"Analog value recording" settings
Range
Activate analog value recording with any signal
(any socket
e.g. device inputs, current flowing)
Any value (1 word / 2 bytes) in SIMOCODE pro
positive (default) / negative
0.1 to 50 s, in steps of 0.1 s (default: 0.1 s)
0 to 100 % in steps of 5 % (default: 0 %)
Application example of the analog value recording
4.6 Analog value recording
,
Parameters
