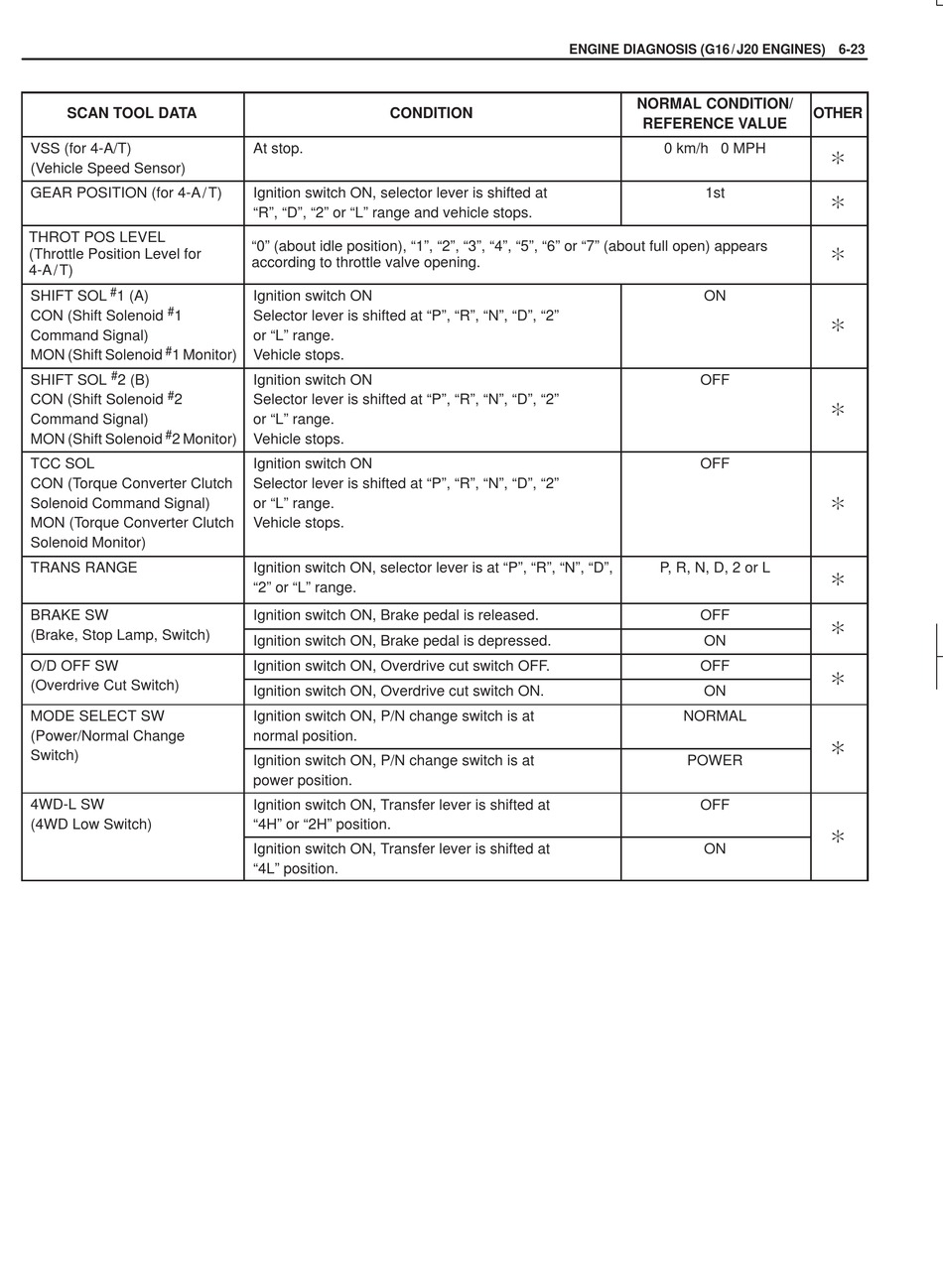

Suzuki 2000 Grand Vitara SQ625 Service Manual page 27

SCAN TOOL DATA
VSS (for 4-A/T)
(Vehicle Speed Sensor)
GEAR POSITION (for 4-A / T)
THROT POS LEVEL
(Throttle Position Level for
4-A / T)
#
SHIFT SOL 1 (A)
#
CON (Shift Solenoid 1
Command Signal)
#
MON (Shift Solenoid 1 Monitor)
#
SHIFT SOL 2 (B)
#
CON (Shift Solenoid 2
Command Signal)
#
MON (Shift Solenoid 2 Monitor)
TCC SOL
CON (Torque Converter Clutch
Solenoid Command Signal)
MON (Torque Converter Clutch
Solenoid Monitor)
TRANS RANGE
BRAKE SW
(Brake, Stop Lamp, Switch)
O/D OFF SW
(Overdrive Cut Switch)
MODE SELECT SW
(Power/Normal Change
Switch)
4WD-L SW
(4WD Low Switch)
CONDITION
At stop.
Ignition switch ON, selector lever is shifted at
"R", "D", "2" or "L" range and vehicle stops.
"0" (about idle position), "1", "2", "3", "4", "5", "6" or "7" (about full open) appears
according to throttle valve opening.
Ignition switch ON
Selector lever is shifted at "P", "R", "N", "D", "2"
or "L" range.
Vehicle stops.
Ignition switch ON
Selector lever is shifted at "P", "R", "N", "D", "2"
or "L" range.
Vehicle stops.
Ignition switch ON
Selector lever is shifted at "P", "R", "N", "D", "2"
or "L" range.
Vehicle stops.
Ignition switch ON, selector lever is at "P", "R", "N", "D",
"2" or "L" range.
Ignition switch ON, Brake pedal is released.
Ignition switch ON, Brake pedal is depressed.
Ignition switch ON, Overdrive cut switch OFF.
Ignition switch ON, Overdrive cut switch ON.
Ignition switch ON, P/N change switch is at
normal position.
Ignition switch ON, P/N change switch is at
power position.
Ignition switch ON, Transfer lever is shifted at
"4H" or "2H" position.
Ignition switch ON, Transfer lever is shifted at
"4L" position.
ENGINE DIAGNOSIS (G16 / J20 ENGINES) 6-23
NORMAL CONDITION/
REFERENCE VALUE
0 km/h 0 MPH
1st
ON
OFF
OFF
P, R, N, D, 2 or L
OFF
ON
OFF
ON
NORMAL
POWER
OFF
ON
OTHER
:
:
:
:
:
:
: :
: :
: :
: :
: :
