ANTI-LOCK BRAKE SYSTEM (ABS)
ABS INDICATOR CIRCUIT
TROUBLESHOOTING
ABS INDICATOR DOES NOT COME ON
(when the ignition switch turned ON)
1. Combination
Inspection
Check the combination meter power and ground
lines (page 22-10).
Are the wires normal?
YES
NO
2. Indicator Operation Inspection

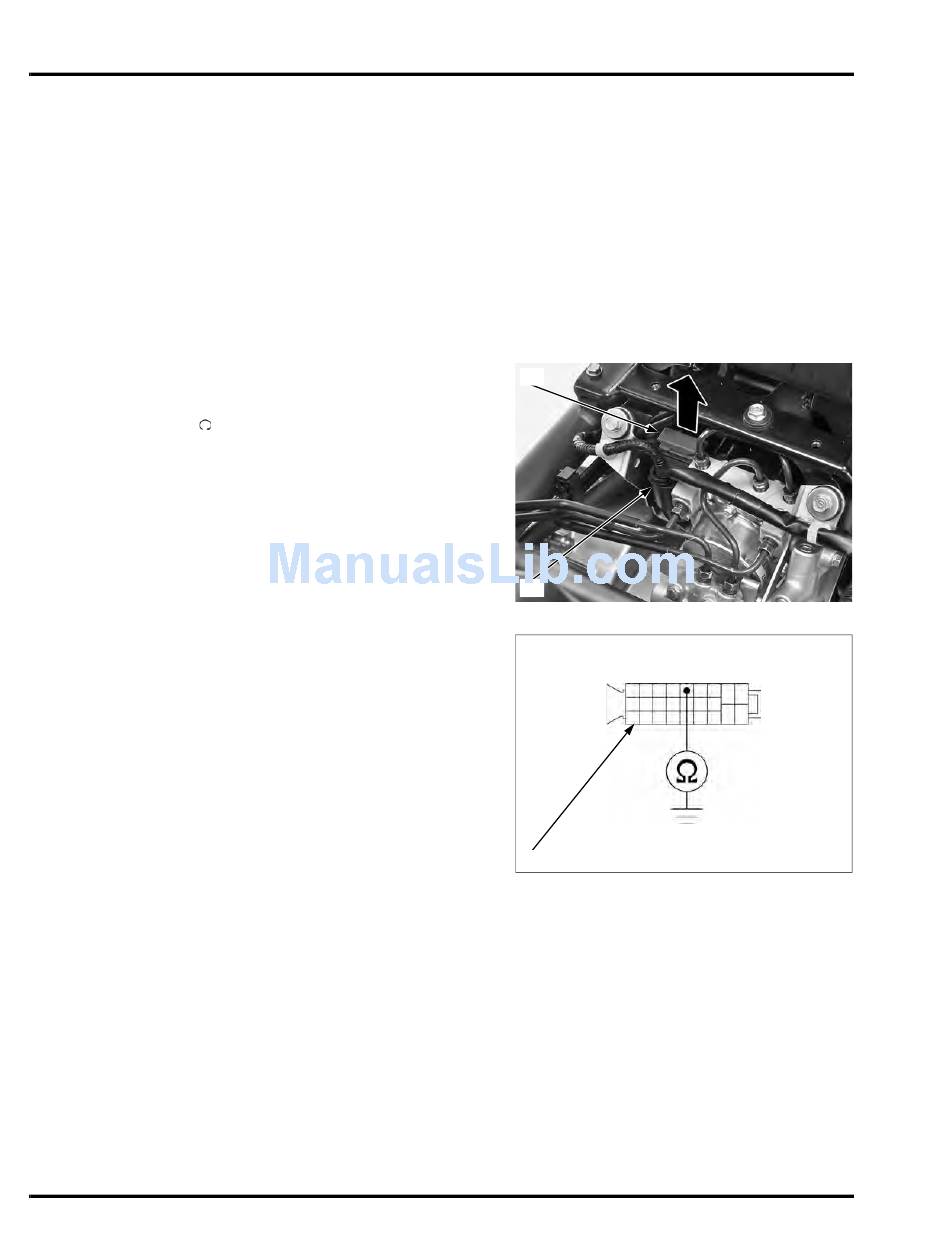

Pull up the lock lever [1] and disconnect the ABS
modulator 25P connector [2].
Turn the ignition switch ON and engine stop switch
to " ".
Check the ABS indicator.
Does the ABS indicator come on?
YES
NO
3. Indicator Signal Line Short Circuit Inspection
Turn the ignition switch OFF.
Check for continuity between the ABS modulator
25P connector [1] of the wire harness side and
ground.
Connection: Orange/black – Ground
TOOL:
Test probe
Is there continuity?
YES
NO
20-12
Meter Power/ground
– GO TO STEP 2.
– Open circuit in related wires
– Faulty ABS modulator
– GO TO STEP 3.
07ZAJ-RDJA110
– Short circuit in Orange/black wire
– Faulty combination meter
Line
[1]
[2]
[1]
O/Bl
