2) Detach the rear upper cover [1].
- 4 screws [2] (Remove)
- 3 screws [3] (Loosen)
[2]
[1]

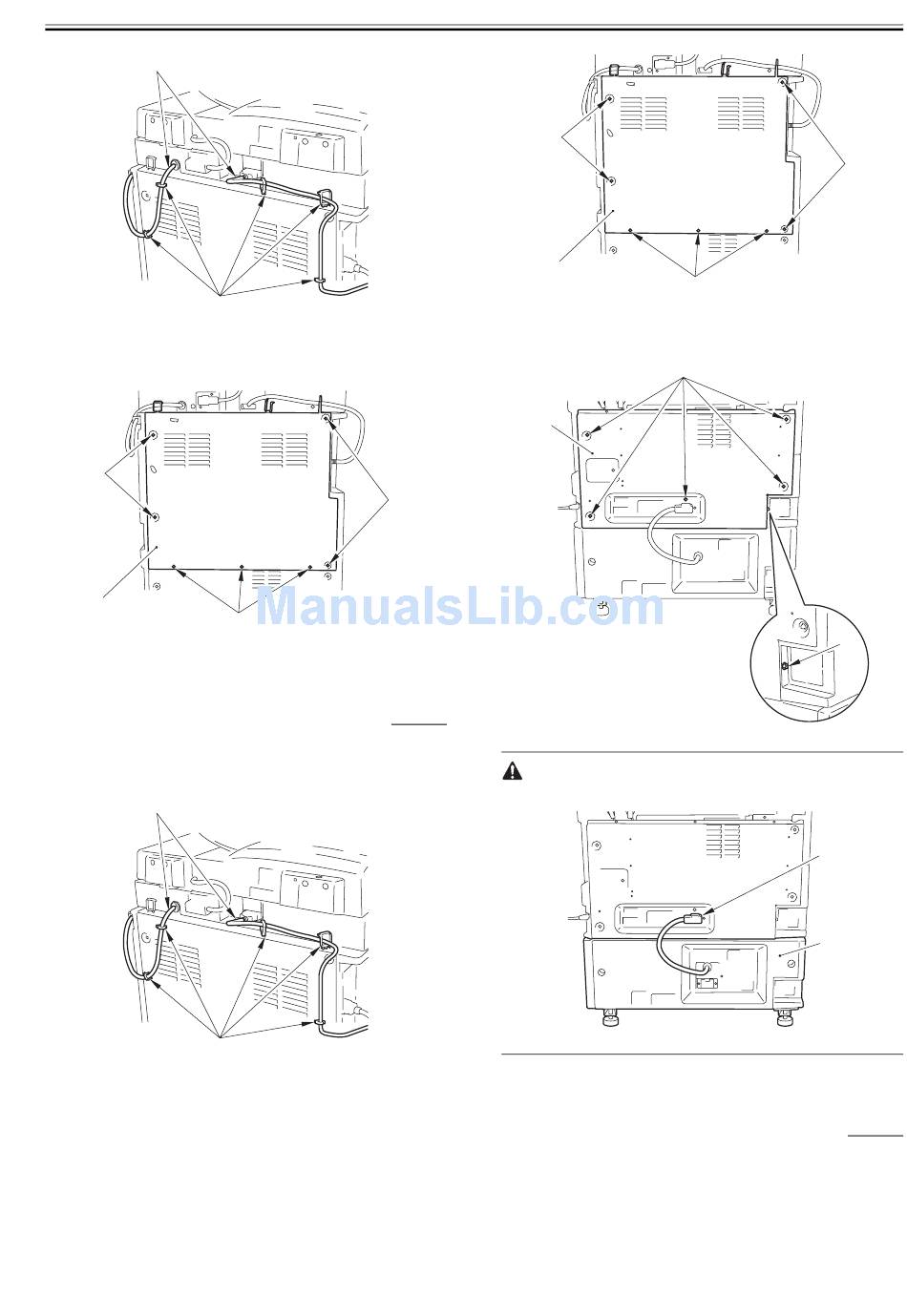

10.5.1.9 Rear Lower Cover

10.5.1.9.1 Detaching the Rear Lower Cover
/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
1) Release the 5 wire saddles [1] on the upper rear cover to free the 2 cables
[2] upward.
[2]
[1]
2) Detach the rear upper cover [1].
- 4 screws [2] (Remove)
- 3 screws [3] (Loosen)
F-10-29
[2]
[3]
F-10-30
0014-0647
F-10-31
[2]
[1]
3) Detach the rear lower cover [1].
- 6 screws [2]
[1]
If the pedestal [3] has been installed, disconnect the lattice connector [4].
10.5.1.10 Reader Front Cover
10.5.1.10.1 Detaching the Reader Front Cover
/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
1) Open the copyboard cover (pressing plate/ADF).
2) Remove the 2 screws [1] to remove the copyboard glass retainer (right)
[2].
Chapter 10
[3]
F-10-32
[2]
[2]
F-10-33
[4]
[3]
F-10-34
[2]
0014-1336
