7) Put back the cassette 1 and 2.

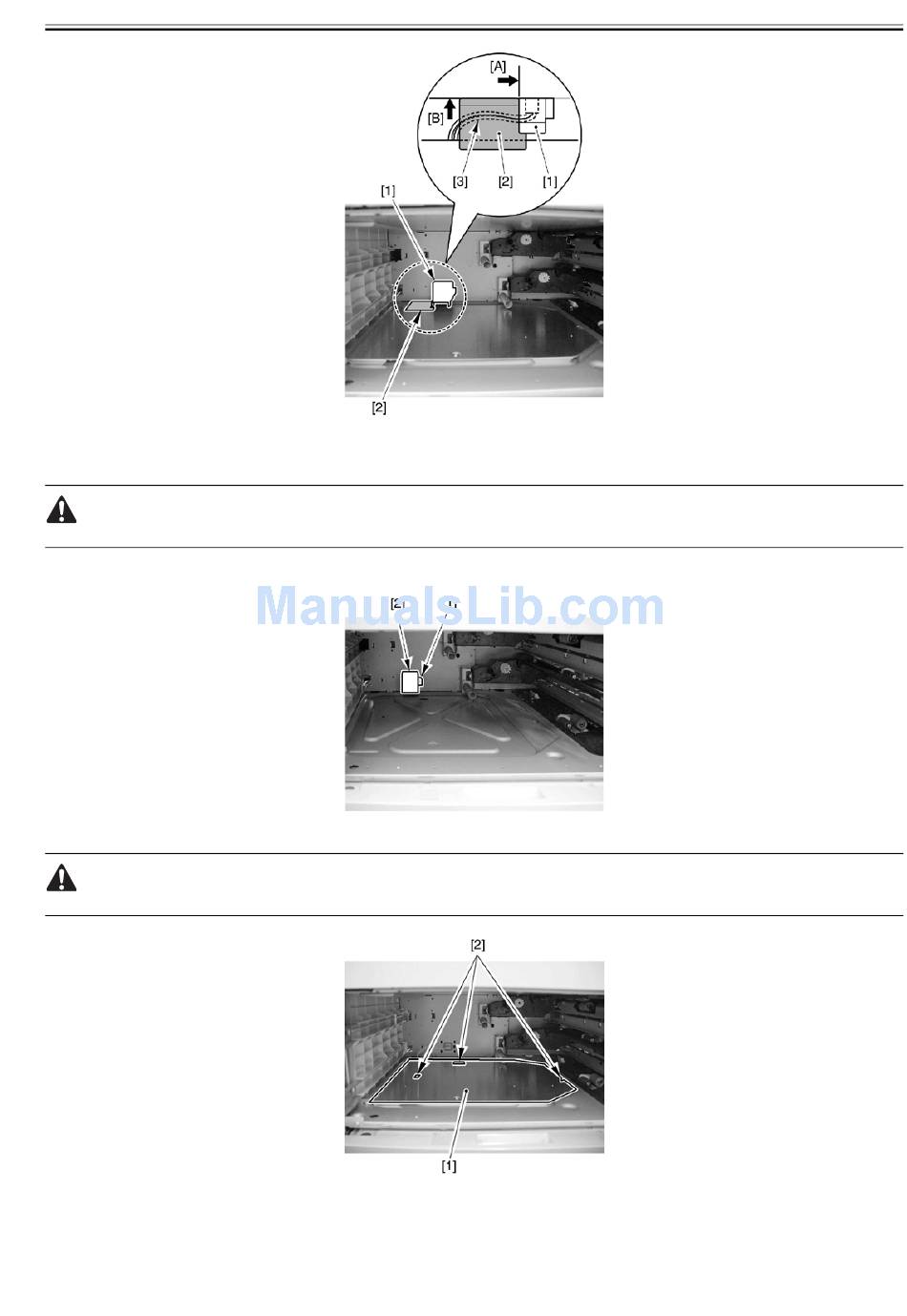

2. Mounting to the cassette pedestal side
To operate the Cassette Heater Unit, the Heater PCB and Cassette Heater Attachment needs to be mounted.
1) Pull out the cassette 3 and 4.
2) While removing the hook by inserting the part indicated as [1] from the front side of the host machine with a flat blade screwdriver, detach the connector cover [2].
3) Fit the 3 hooks [2] of the heater unit [1] to the slit of the base plate to match the hole positions.
In the case of mounting the heater unit, make sure to check that the 3 hooks [2] are tightly fitted and there is no jiggle.
4) Mount the heater unit [1] with the screw (binding; M4X6) [2], and connect the connector [3].
F-2-96
F-2-97
F-2-98
