System Configuration 2 (Delivery Accessories) - Canon iR C3380 series Service Manual

Chapter 1
The available functions and the accessories needed are shown below.
Function
- Three-system delivery function
- Staple function
Function
- Saddle function
Function
- Punch function

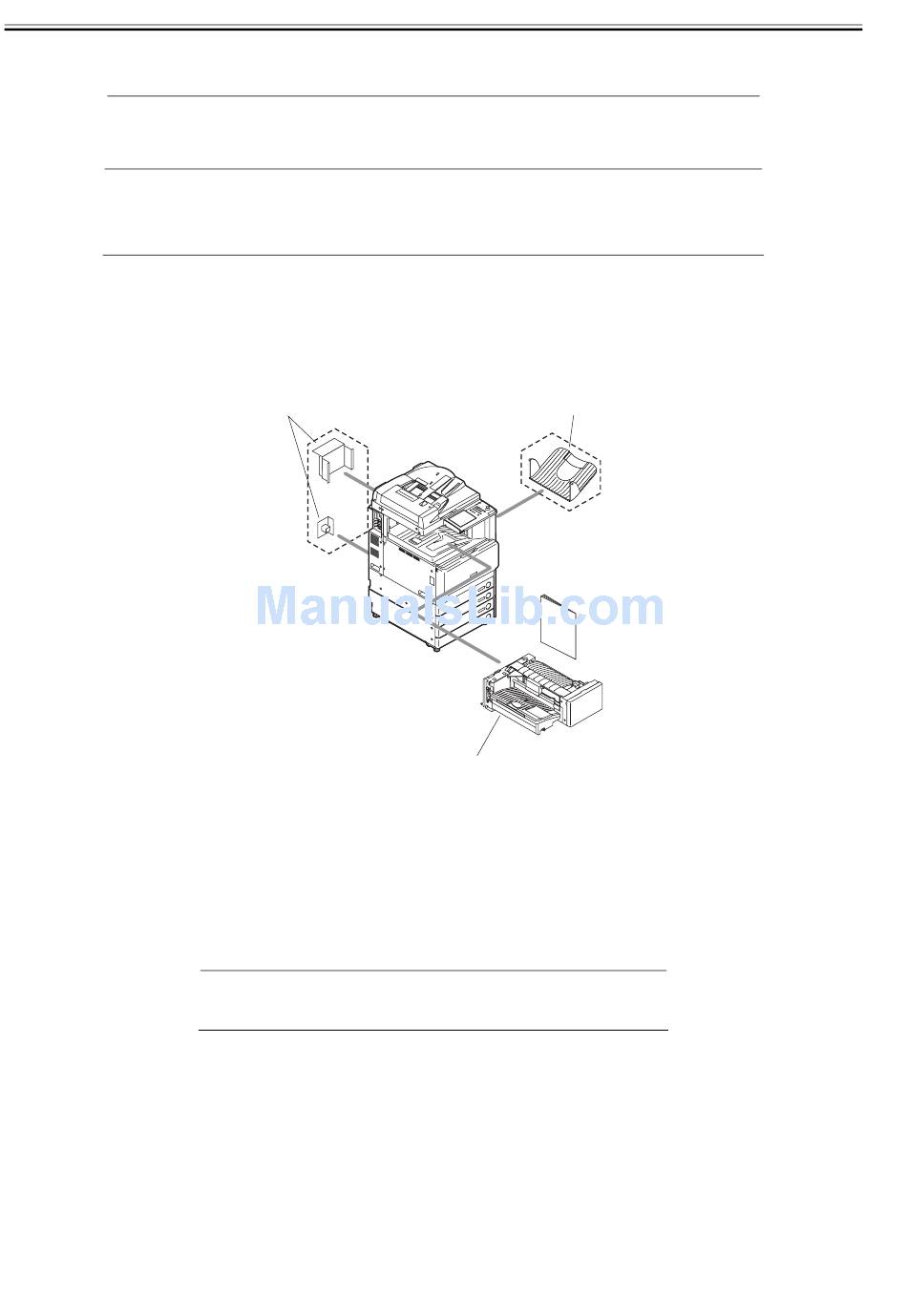

1.1.3 System Configuration 2 (Delivery Accessories)

/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
The system configuration is shown below.
[1] Finisher-Z1
[2] Copy Tray-J1
[3] Optional Power Supply-R1 [120V/230V as standard
equipments]
The available functions and the accessories needed are shown below.
1-2
[3]
Function
- Two-system delivery function
Function
- Two-system delivery function
- Staple function
T-1-1
Accessory needed
Finisher Y1 or Saddle Finisher-Y2 Optional Power Supply-R1 (100V) Buffer
Path Unit-E2
T-1-2
Accessory needed
Saddle Finisher-Y2
Optional Power Supply-R1 (100V)
Buffer Path Unit-E2
T-1-3
Accessory needed
Finisher Y1 or Saddle Finisher-Y2
Optional Power Supply-R1 (100V)
Buffer Path Unit-E2
Puncher Unit-L1/M1/N1/P1
[1a]
[1]
F-1-2
[1a] Installation Procedure
- Mounting the Finisher-Z1.
Installation Procedure
- Refer to this service manual.
T-1-4
Accessory needed
Copy Tray-J1
T-1-5
Accessory needed
Finisher-Z1 Optional
Power Supply-R1 (100V)
Copy Tray-J1
[2]
0013-8332
