Do not touch the ITB. If the ITB is scratched, it may cause the pickup fault
or degradation of the print quality.
In case the print quality is degraded due to touching the ITB, clean the ITB
with soft and dry cloth.
If the print quality is not improved, execute the following:
[Additional Functions] > [Adjustment/Cleaning] > [Cleaning inside Main
Unit] > [Start]
[1]

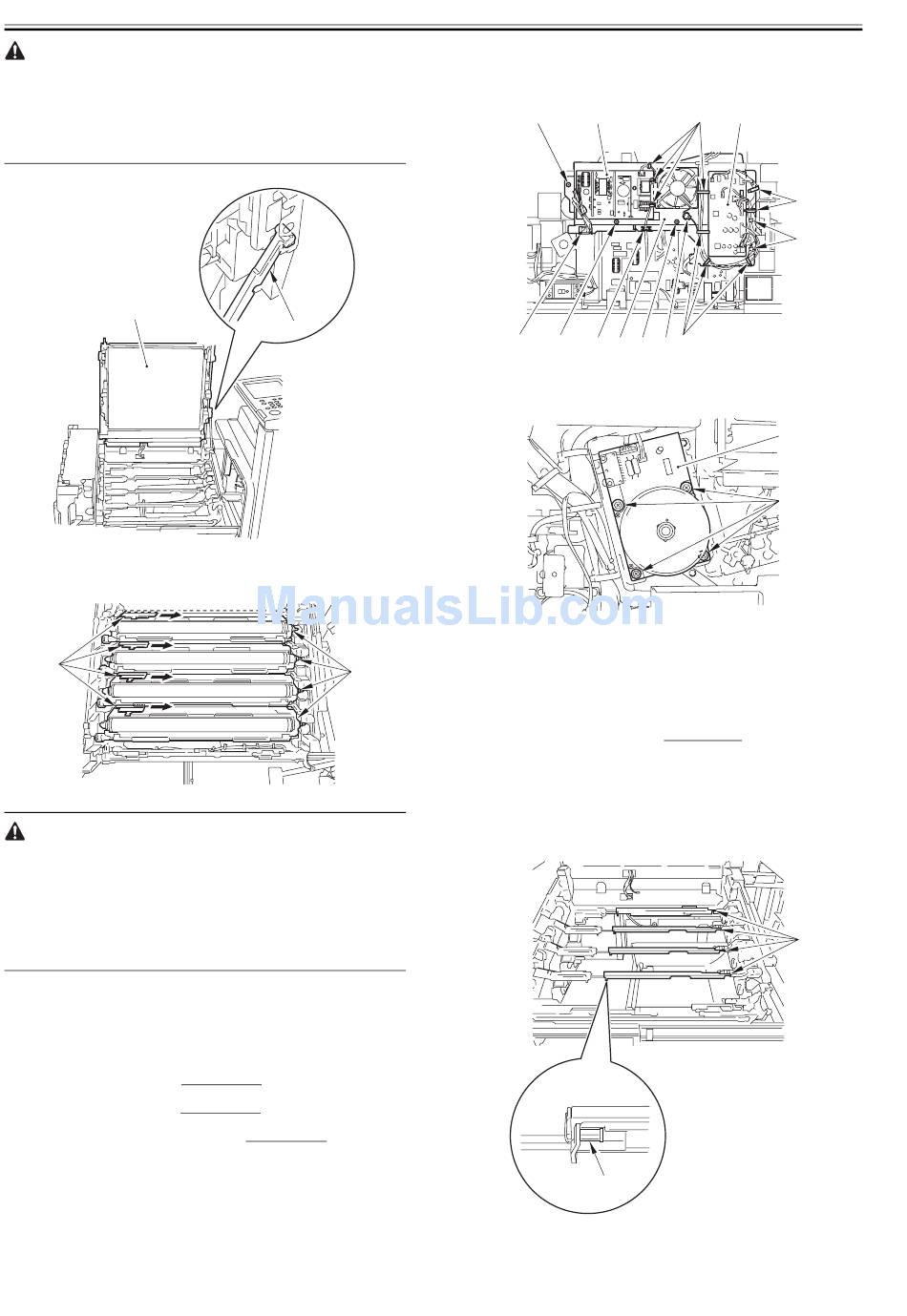

8) Release the shutter [1] of the drum cartridge to remove the drum cartridge
[2].
[1]
When Replacing the Drum Cartridge
Make sure that the shutter lever is at the Unlock position when removing the
drum cartridge. Removing the drum cartridge from the main body and re-
placing it with a new cartridge when the shutter lever is not at the Unlock po-
sition will cause malfunction in opening the drum cartridge shutter. As a
result, toner cannot flow from the hopper assembly to the drum cartridge
causing overflowed toner to spatter inside the body.
When the drum cartridge has been removed while the shutter lever is not at
the Unlock position, put the cartridge back and then position the shutter lever
to the Unlock position. After that the drum cartridge can be removed.

7.9.3 Drum ITB Motor

7.9.3.1 Before Removing the Drum ITB Moto

/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
1) Remove the upper rear cover. (page 10-14)[Detaching the Upper Rear
Cover]
2) Remove the lower rear cover. (page 10-15)[Detaching the Lower Rear
Cover]
3) Remove the all-night power supply PCB. (page 10-22)[Detaching the
All-Night Power Supply PCB]

7.9.3.2 Removing the Drum ITB Motor

/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
1) Disconnect the 7 connectors on the optional power supply PCB [1] and the
12 connectors on the controller power supply PCB [2].
2) Remove the optional power supply/controller power supply mount [3].
7-42
[2]
F-7-65
[2]
F-7-66
- 9 cable clamps [4]
- 3 wire saddles [5]
- 1 connector [6]
- 5 screws [7]
[7]
[5] [7]
3) Remove the drum ITB motor [1].
- 4 screws [2]

7.9.4 Hopper Assembly

7.9.4.1 Before Removing the Hopper Supply Unit

/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
1) Remove the hopper drive assembly. (page 10-16)[Removing the Hopper
Drive Unit]

7.9.4.2 Removing the Hopper Supply Unit

/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
1) Remove the supply drive shaft [1].
- 1 claw [2]
0014-2630
0014-2631
2) Remove the toner cartridge guide [1].
- 6 screws [2]
[1] [4] [2]
[5] [3] [7] [6] [4]
F-7-67
F-7-68
[2]
F-7-69
[4]
[7]
[1]
[2]
0014-1276
0014-1277
[1]
