5.8.12.1 Selecting parameters (program A)

Changes to the welding parameters can only be made when the key switch is in
position "1".
Operating
element

5.8.13 MIG/MAG automatic cut-out

The welding machine ends the ignition process or the welding process with an
•
ignition fault (no welding current flows within 5 s after the start signal)
•
arc interruption (arc is intrerupted for longer than 5 s)
72

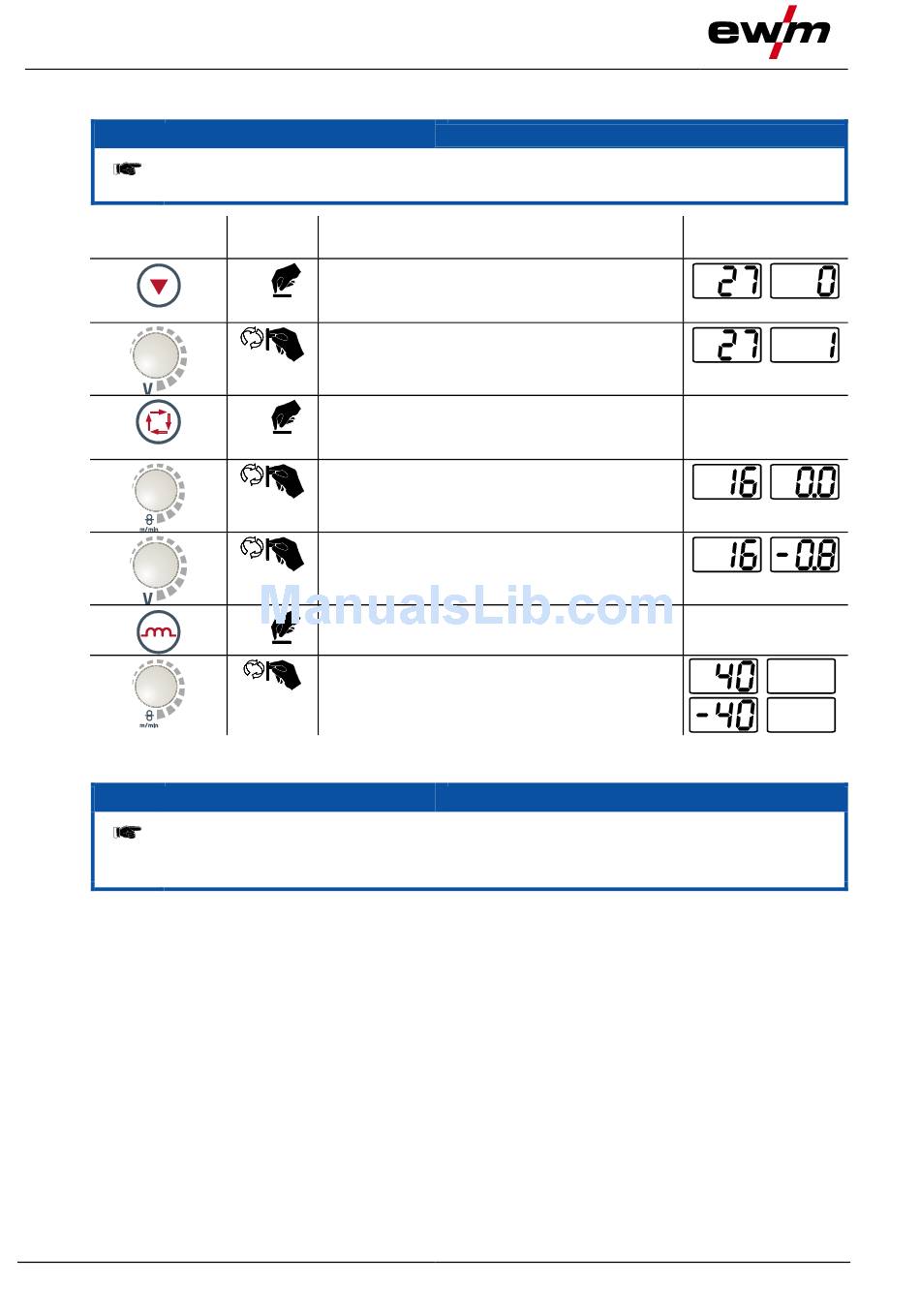

Action Result
Change welding data display over to program
display.
n x
(LED Prog is on)
Select program number.
Display example: Program "1".
Select program sequence parameter
"Main program (P
n x
(LED is on)
Set wire speed.
(Absolute value)
Set arc length correction.
Display example: "-0.8 V" correction
(Setting range: -9.9 V to +9.9 V)
Select "Dynamic" program sequence parameter.
1 x
Set dynamic. (Setting range 40 to -40)
40: Arc hard and narrow.
-40: Arc soft and wide.
NOTE
)".
A
NOTE
Display
