Machine Control - Operating Elements - EWM Phoenix 401 Progress puls MM FKW Operating Instructions Manual

Machine description – quick overview
Machine control – Operating elements
Machine control – Operating elements
4.4
Item Symbol
1
2
3
4
5
6
24
Description 0

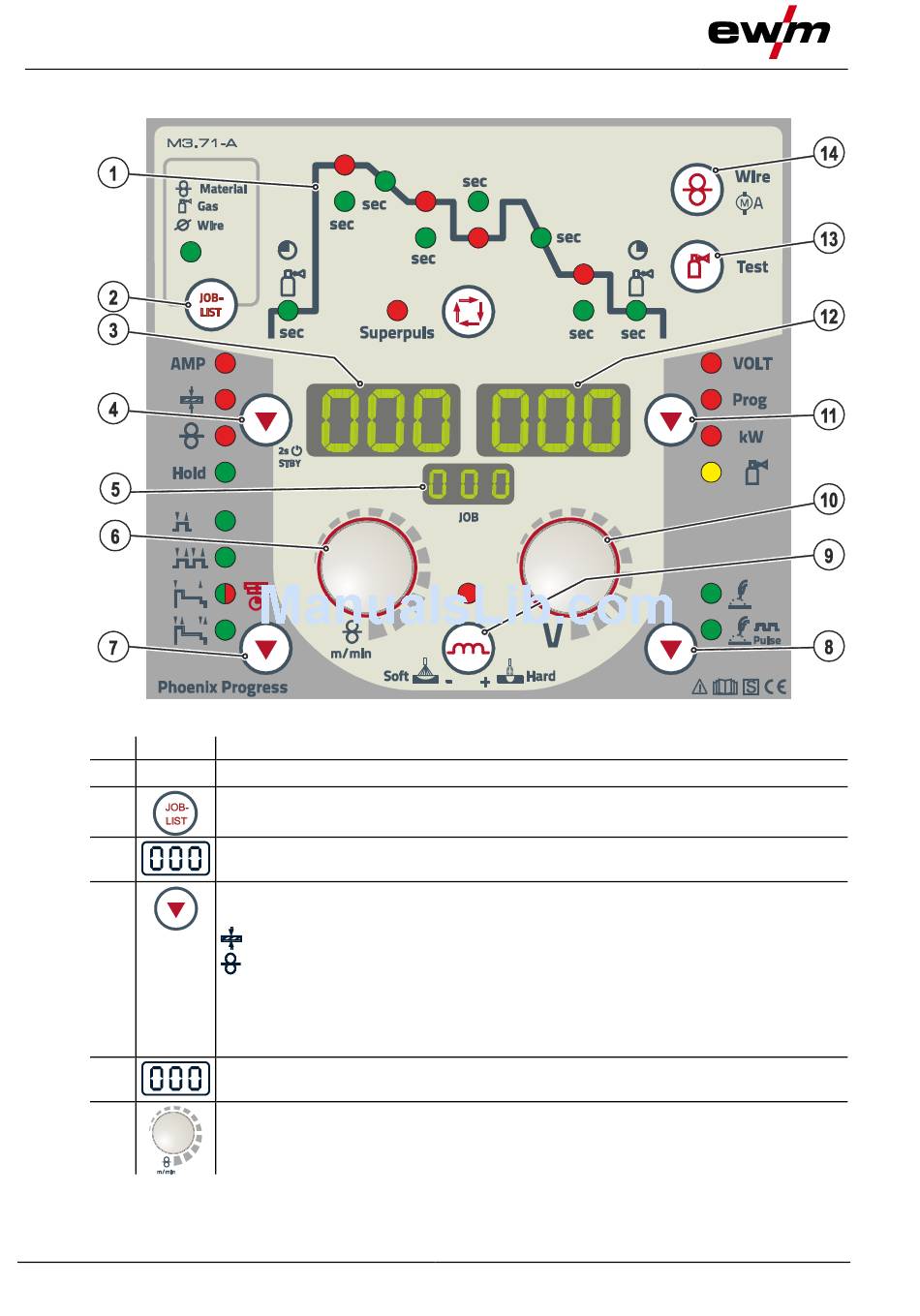

Functional sequence (see chapter "Functional sequence")
Key button, JOB-List
Selection of the welding task (JOB) from the JOB list
Display, left
Welding current, material thickness, wire speed, hold values
Push-button, parameter selection left/power-saving mode
AMP Welding current
Material thickness
Wire feed speed
Hold After welding, the values used last are shown from the main program. The
signal light is illuminated.
STBY Press for 2 s to put machine into power-saving mode.
To reactivate, activate one of the operating elements.
Display, JOB
Shows the currently selected welding task (JOB number).
Welding parameter setting, rotary dial
For setting the welding performance, for selecting the JOB (welding task) and for
setting other welding parameters.
Figure 4-4
099-005323-EW501
21.05.2014
