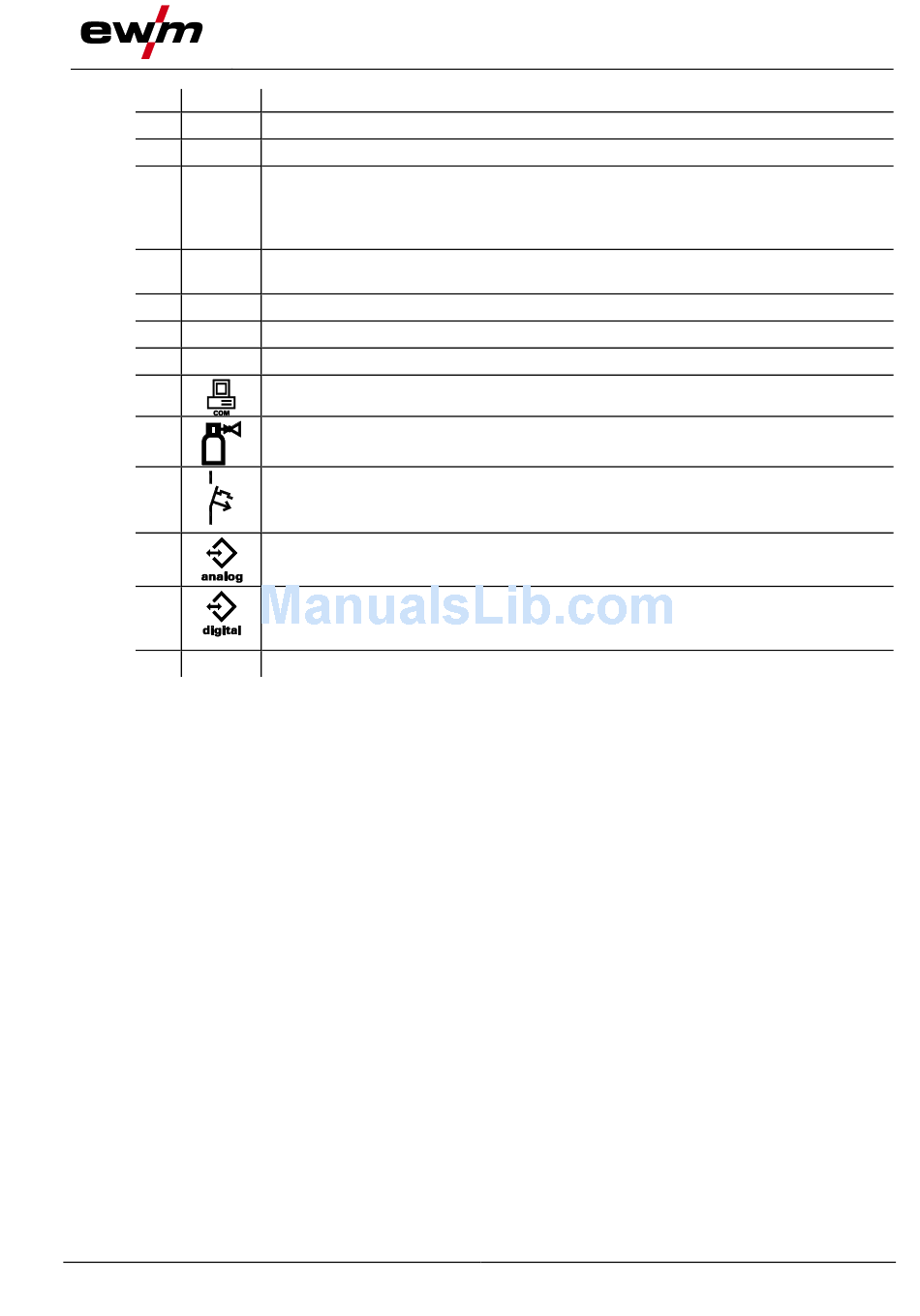

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
099-005323-EW501
21.05.2014
Machine description – quick overview
Description 0
Slide latch, lock for the protective cap
Securing elements for shielding gas cylinder (strap/chain)
Protective cap
Cover for the wire feed mechanism and other operating elements.
Depending on the machine series, additional stickers with information on the
replacement parts and JOB lists will be located on the inside.
Wire spool inspection window
Check wire supply
Cooling air outlet
Bracket for shielding gas cylinder
Wheels, fixed castors
PC interface, serial (D-Sub connection socket, 9-pole)
Connecting nipple G¼, shielding gas connection
Key button, automatic cutout
Wire feed motor supply voltage fuse
press to reset a triggered fuse
19-pole interface for mechanised welding (analogue), optional
(see "Design and function" chapter)
7-pole connection socket (digital)
For connecting digital accessory components (documentation interface, robot interface
or remote control, etc.).
Mains connection cable
Rear view
