EWM Phoenix 401 Progress puls MM FKW Operating Instructions Manual page 19

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
099-005323-EW501
21.05.2014

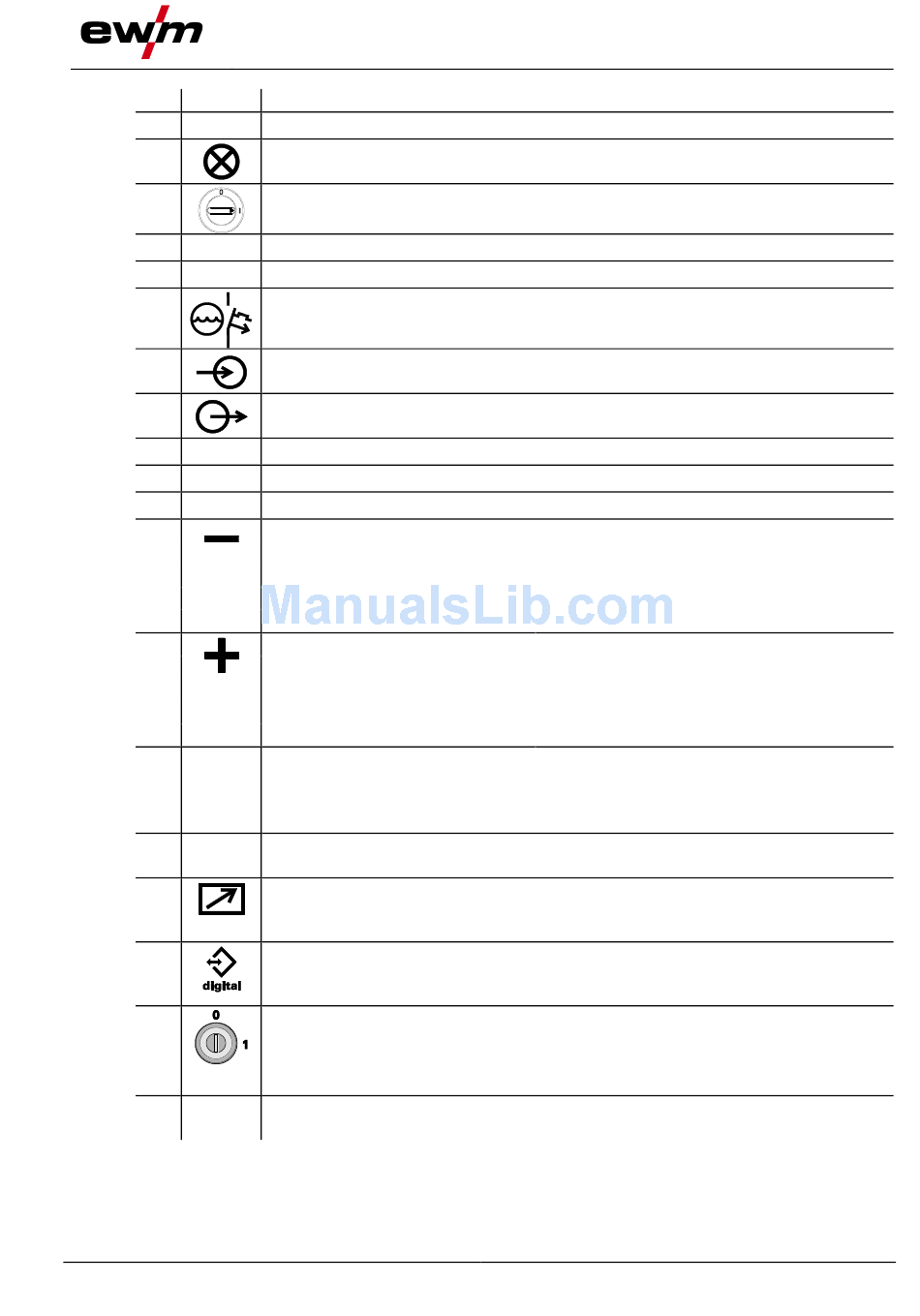

Machine description – quick overview
Description 0
Lifting lug
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
Main switch, machine on/off
Carrying handle
Cooling air inlet
Automatic cut-out of coolant pump key button
press to reset a triggered fuse
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Wheels, guide castors
Coolant tank
Coolant tank cap
"-" welding current connection socket
•
MIG/MAG welding:
•
MIG/MAG cored wire welding:
•
TIG welding:
•
MMA welding:
Connection socket, "+" welding current
•
MIG/MAG welding:
•
MIG/MAG cored wire welding:
•
TIG welding:
•
MMA welding:
Welding current cable, polarity selection
Welding current to the central connector/torch, enables polarity selection.
• MIG/MAG: Connection socket for "+" welding current
• Self-shielding cored wire/TIG: Connection socket for "-" welding current
Welding torch connection (Euro or Dinse torch connector)
Welding current, shielding gas and torch trigger integrated
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
7-pole connection socket (digital)
For connecting digital accessory components (documentation interface, robot interface
or remote control, etc.).
Key switch for protection against unauthorised use
Position "1" > changes possible,
Position "0" > changes not possible.
Please take note of chapter "Protecting welding parameters from unauthorised access"
Machine control
See Machine control – operating elements chapter
Workpiece connection
Welding current to central connection/torch
Welding current connection for welding torch
Workpiece or electrode holder connection
Welding current to central connection/torch
Workpiece connection
Workpiece connection
Workpiece or electrode holder connection
Front view
19
