Design and function
MIG/MAG welding
5.8.3

Definition of MIG/MAG welding tasks

This range of machines feature simple operation with a very wide range of functions.
•
Various JOBs (i.e. welding tasks consisting of welding process, material type, wire diameter and
shielding gas type) have been pre-defined (see appendix for a list of JOBs).
•
Simple JOB selection from a list of pre-defined JOBs (sticker on the machine).
•
The required process parameters are calculated by the system depending on the operating point
specified (single-dial operation via wire speed rotary dial).
•
Additional parameters can be modified as required in the configuration menu on the control or using
the PC300.NET welding parameter software.
5.8.4

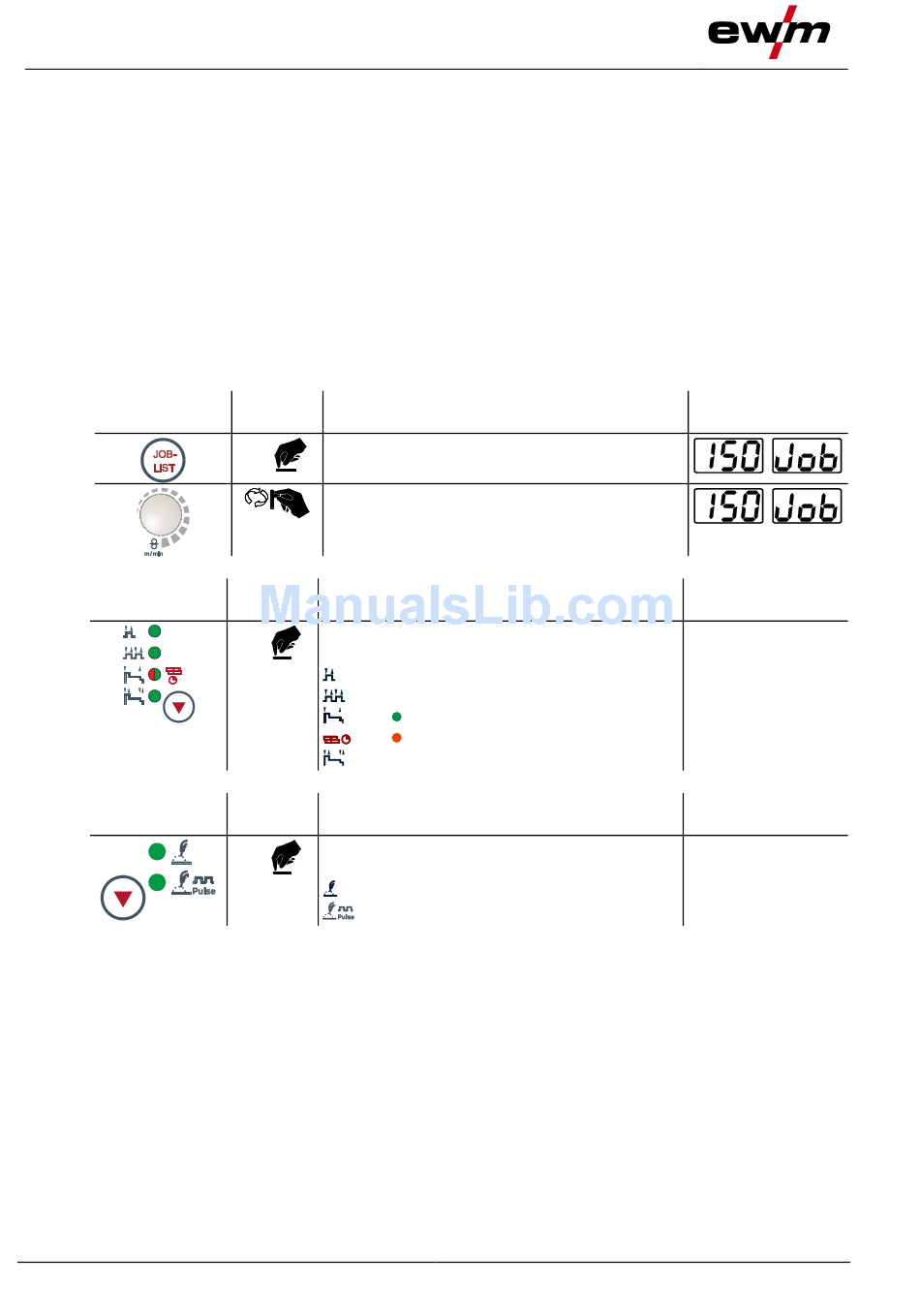

Welding task selection

5.8.4.1

Basic welding parameters

•
Select JOB (welding task) with JOB list.
The JOB list sticker can be found on the inside of the protective flap of the wire feeder.
You can only change the JOB number when no welding current is flowing.
Operating
element
5.8.4.2

Operating mode

Operating
element
5.8.4.3

Welding type (MIG/MAG standard/pulse arc welding)

Operating
element
44
Action Result
Select JOB list
1 x
Set JOB number.
Wait 3s until the setting has been adopted.
Action Result
Select operating mode
n x
The LED displays the selected operating mode.
Non-latched operation
Latched operation
Special latched mode
Action Result
Select welding type
n x The signal light indicates the selection.
Standard MIG/MAG welding
Pulse arc MIG/MAG welding
Green Special non-latched mode
Red Spot operating mode
Display
Display
No change
Display
No change
