Choke effect / dynamics

Display
5.8.4.5

superPuls

In superPuls mode, the program toggles from main program (PA) to reduced main program (PB). This
function is used e.g. in thin sheet welding to accurately reduce the heat input or weld vertical-up welds
without weaving. superPuls in combination with EWM welding processes offers many possibilities.
Welding performance can be represented as average value (ex works) or solely as program A value. If
the average value display is activated the signal lights of the main (PA) and reduced main program (PB)
are illuminated simultaneously. The display variants can be changed using special parameter P19, see
chapter "Special parameters (Advanced settings)".
Display
099-005323-EW501
21.05.2014
ENTER
Setting/selection

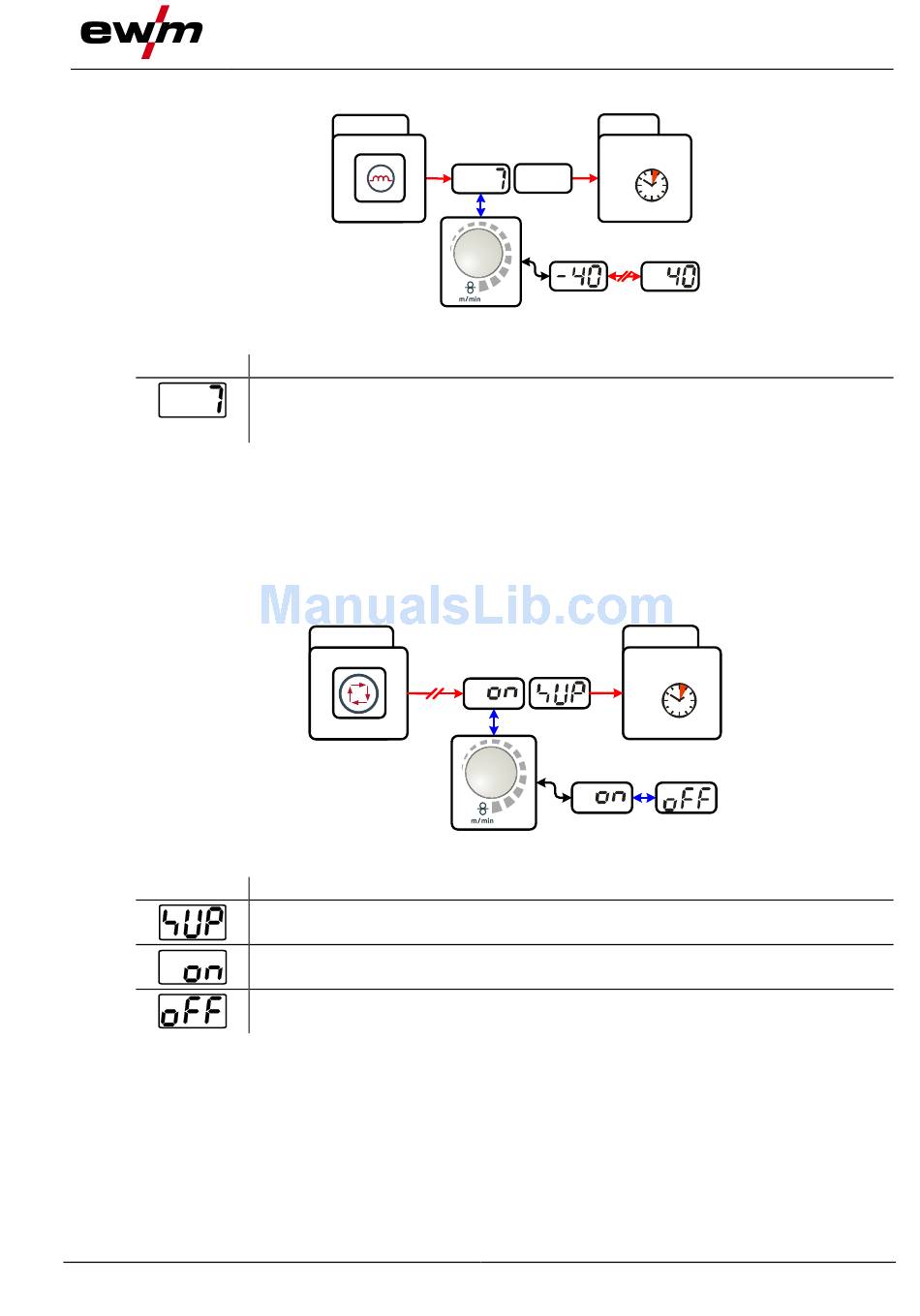

Dynamics setting
40: Arc harder and narrower
-40: Arc softer and wider
ENTER
Setting/selection
Selects super pulses
Switches function on or off.
Switch on
Switching on machine function
Switch off
Switching off machine function
Design and function
EXIT
3 s
Figure 5-10
EXIT
Figure 5-11
MIG/MAG welding
3 s
