18. Standard Interfaces – Pin Assignments

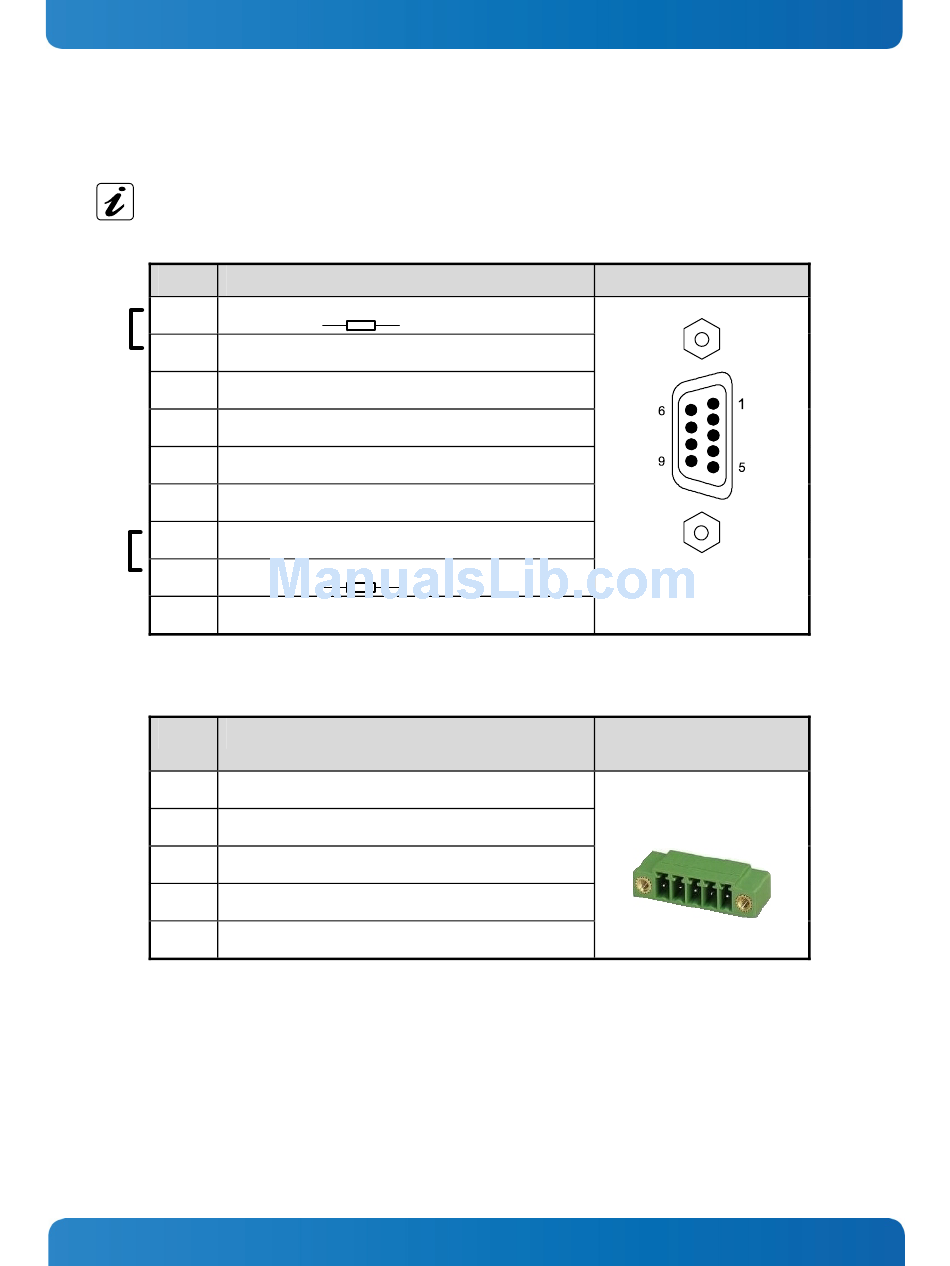

18.2.3. CAN Bus Port

If termination resistor (120Ω) is required, you have to make a connection (bridge) between pin 1 and 2, in
order to enable the onboard termination resistor (120Ω).
Pin Signal Name
1 TERM L
2 CAN_L
3 CAN_GND
4 NC (not connected)
5 NC (not connected)
6 NC (not connected)
7 CAN_H
8 TERM H
9 NC (not connected)

18.2.4. UPS Connector (TBD)

Pin Signal Name
1 UPS charging voltage V+ (OUTPUT)
2 UPS buffer voltage V+
3 GND, 0V
2
4 UPS I C clock
2
5 UPS I C data
68
120Ω
CAN_L bus line (dominant low)
(CAN Ground) Reference potential
CAN_H bus line (dominant high)
120Ω
(INPUT)
KBox C-101 – User's Guide (Version 2.00)
9-pin D-SUB Plug (male)
5-pin Phoenix Connector
MC 1,5/ 5-GF-3,5 (male)
