7. System Overview

7.4. Left and Right Side View

1
2
3
2

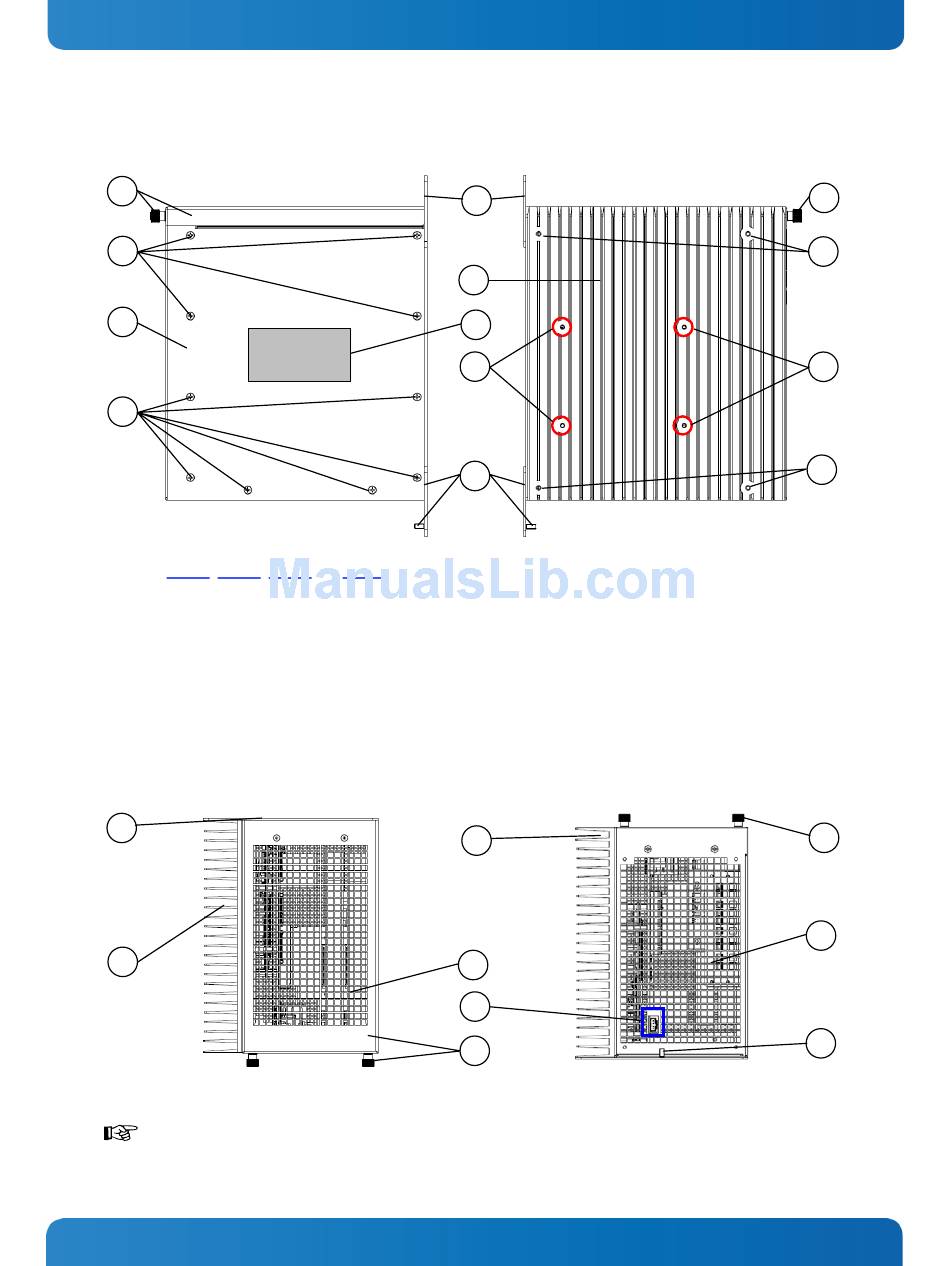

Fig. 22: Right side of the KBox C-101 system
Legend for Fig. 22, Fig. 23, Fig. 24 and Fig. 25:
1 Top side access cover with knurled screws
2 10x screws that secure the right side access cover
3 Right side access cover
4 Upper mounting plate with key holes
5 Lower mounting plate with M4 ground stud and key holes
6 Cooling fins of the chassis

7.5. Top and Bottom Side View

4
6
Fig. 24:Top side of the KBox C-101 system
When powering on the KBox C-101, make sure that the air intake and exhaust openings are not
obstructed. To provide sufficient heat dissipation for the cooling of the KBox C-101 platform, never cover
the cooling fins of the chassis. Do not place any objects onto the device.
