14. System Extensions
10
9

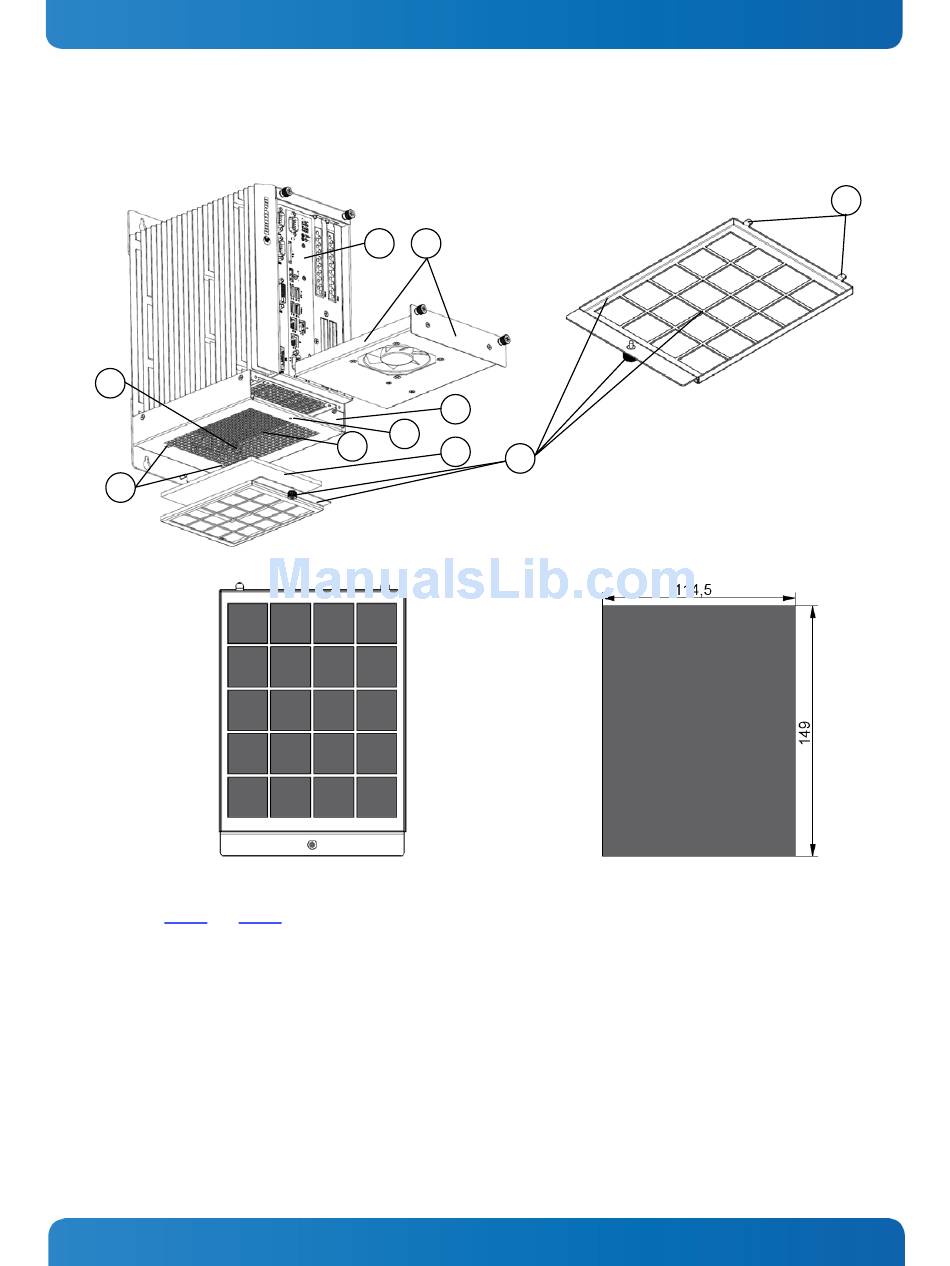

Fig. 42: KBox c-101 with removed fan tray and removed air filter

Fig. 44: Holder with air filter
Legend for Fig. 42 and Fig. 43:
1 KBox C-101 assembled with the optional fan tray slot 6 Removed air filter
2 Removed fan tray
3 Fan tray slot without inserted fan tray
4 Air intake openings at the bottom side of the fan tray
slot
5 Tapped hole to secure the knurled screw of the air
filter holder
50
1 2
3
5
4
6
7
7 Air filter holder with knurled screw
8 Positioning latches of the air filter holder
9 Positioning holes for the air filter holder
10 Socket for fan power and control (on internal rear side
of the fan tray slot)
KBox C-101 – User's Guide (Version 2.00)
Fig. 43: Holder without air filter
Fig. 45: Air filter
