14. System Extensions

14. System Extensions
Optional your KBox C-101 can be equipped by factory only with following ports and additional components:
Serial port RS232 or RS422 via an adapter module
CAN port: via an adapter module
DVI-D: via an adapter module
UPS (Uninterruptable Power Supply): an additional component connected to the KBox C-101
Fan Tray: an additional component connected to the KBox C-101
These components you have to order separately in order to extend your KBox C-101 at the factory.
Example of system configuration, see below:
1
2
3
4

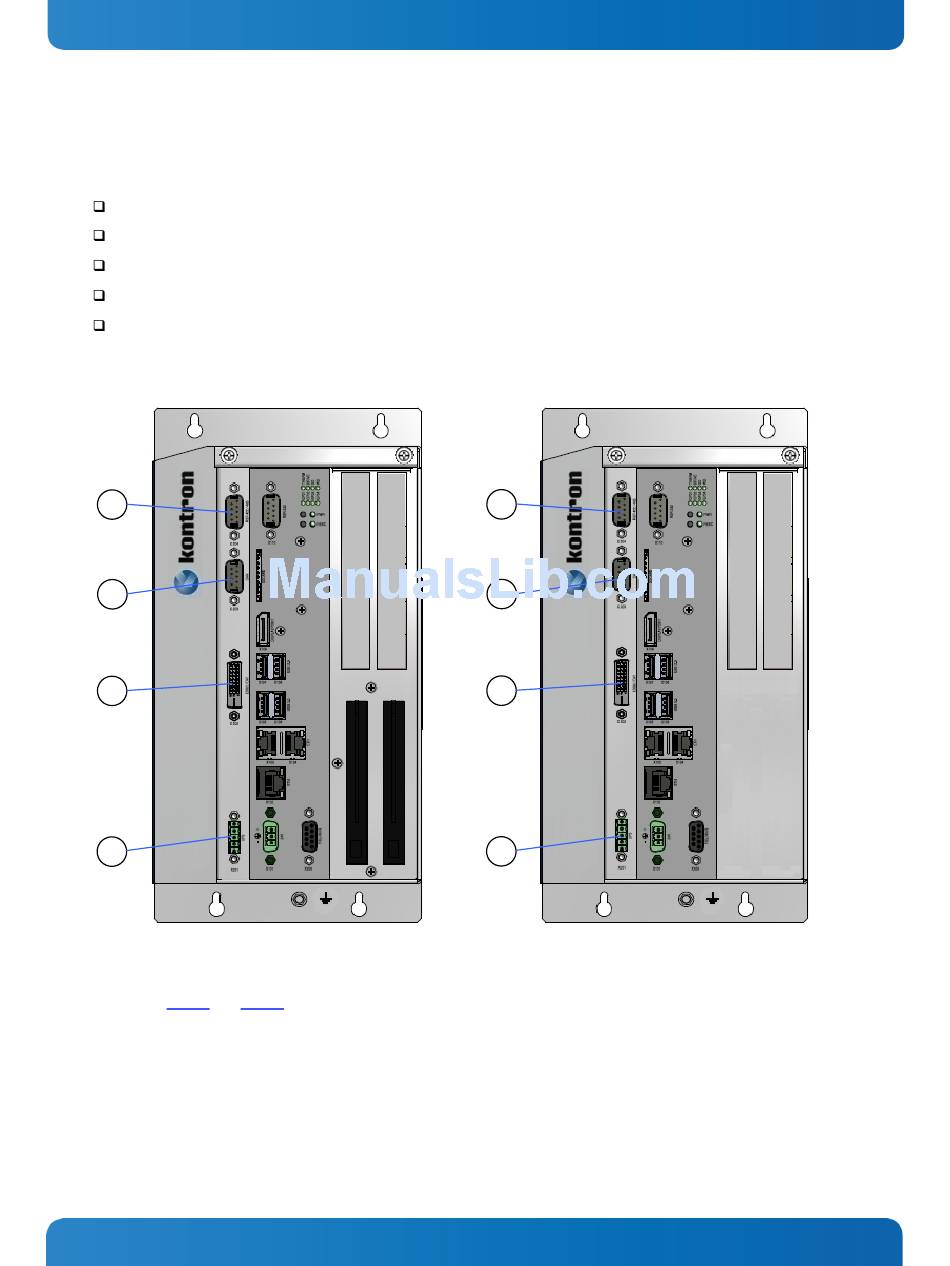

Fig. 37: KBox C-101 with removable drive bays and optional
interfaces
Legend for Fig. 37 and Fig. 38:
www.kontron.com
1 Serial port RS232/RS422
2 CAN port
3 DVI-D (Single Link) port
4 UPS (Uninterruptable Power Supply) connector
KBox C-101 – User's Guide (Version 2.00)
1
2
3
4
Fig. 38: KBox C-101 with optional interfaces and without removable
drive bays and
45
