14. System Extensions

14.6.2. Cleaning the Air Filter

The air filter is inserted in the holder (Fig. 39, pos. 2) at the bottom side of the fan tray slot (Fig. 39, pos. 6). The soiling
of the air filter (Fig. 39, pos. 3) is caused by the pollution of the operating environment. A heavily soiled air filter can
cause excessive heating of the device. For this reason we recommend to clean the air filter as often as necessary. The air
filter can be changed during operation of the system.
2 1 3 2
1
3

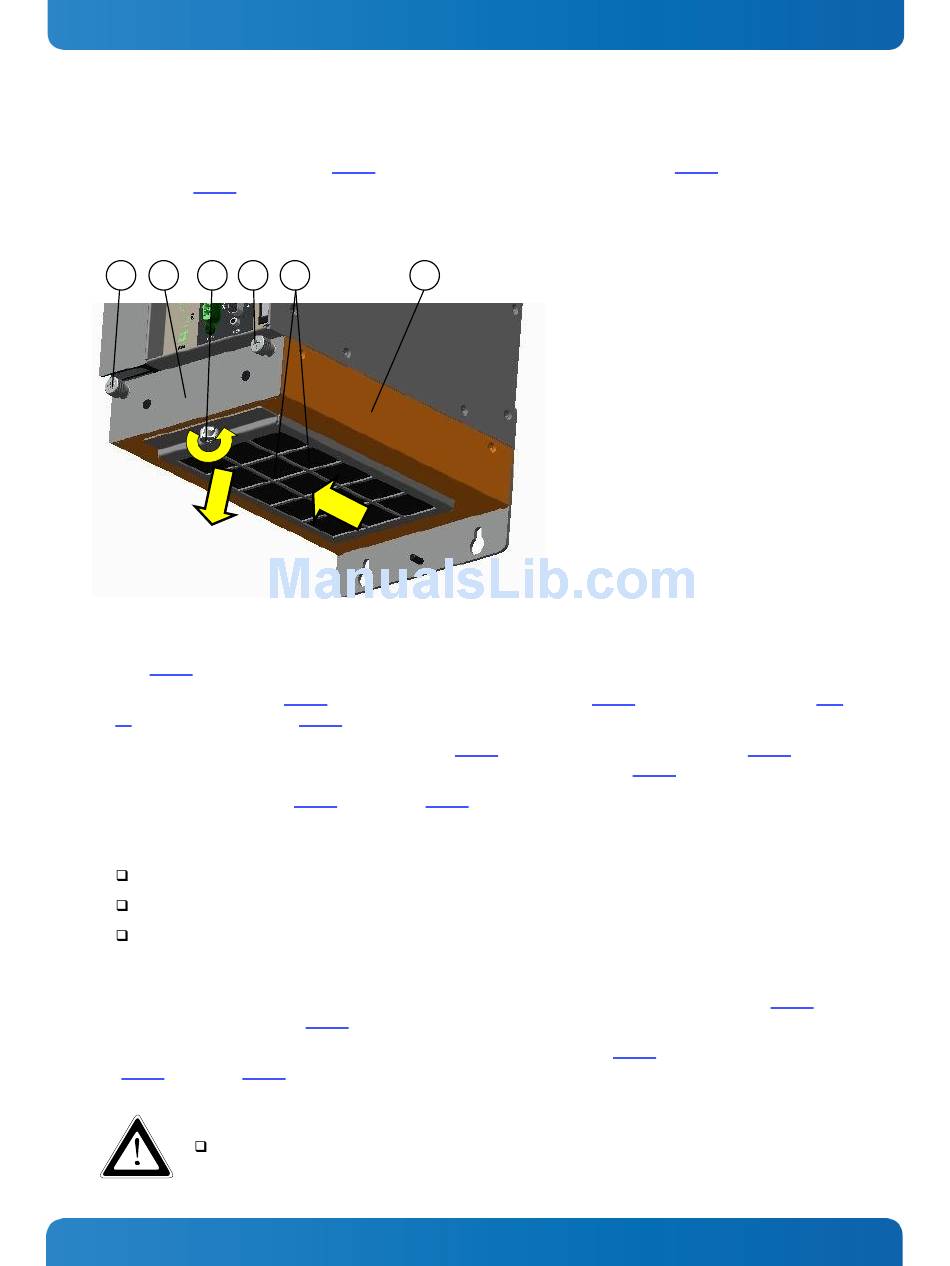

Fig. 41: Detail KBox C-101 with fan tray extension: air filter holder on the bottom side
To replace the air filter, proceed as follows:
1. Ensure to have access to the bottom side of the KBox C-101. The air filter may be replaced without removing the fan
tray (Fig. 41, pos. 1).
2. Loosen the knurled screw (Fig. 41, pos. 3) that secures the air filter holder (Fig. 41, pos. 4) to the fan tray slot (Fig.
41, pos. 5); refer to step 1 in Fig. 41.
3. Pull the air filter holder out of the positioning holes, (Fig. 42, pos. 9) into the marked direction (see Fig. 41) and pull
it down. Put the air filter holder aside for later reassembly; refer to step 2 and 3 in Fig. 41.
4. Remove the soiled air filter (Fig. 41, pos. 3) and (Fig. 42, pos. 6).
5. Clean the air filter as follows:
Rinse in water (up to approx. 40°C; possibly with the addition of a standard mild detergent).
It is possible to clean the air filter with compressed air.
For dirt that contains grease/oil, the air filter should be rinsed with warm water with the addition of a degreaser.
Air filter should not be cleaned with powerful water jets or wrung out.
6. After cleaning and drying the air filter, place it in the air filter holder.
7. Reattach the air filter holder to the bottom side of the fan tray slot by inserting the positioning latches (Fig. 42, pos.
8) into the positioning holes (Fig. 42, pos. 9).
8. Secure the air filter holder by tightening the knurled screw to the tapped hole (Fig. 42, pos. 4) of the fan tray slot
(Fig. 41, pos. 5) or (Fig. 42, pos. 3).
Defective components may only be replaced by Kontron original spare parts.
Air filter: part number: 1055-4670.
www.kontron.com
4 5
2
KBox C-101 – User's Guide (Version 2.00)
1 Fan tray
2 Knurled screws of the fan tray
3 Knurled screw of the air filter holder
4 Air filter holder
5 Fan tray slot
