7. System Overview

7.7.1. Integrated COMe Module

Depending on the ordered system configuration, your KBox C-101 accommodates a baseboard with either a COMe-bHL6
i5-4402E or a COMe-bHL6 i7-4700EQ module.
1
2
3
4
5
1 COM Express module
2 Baseboard
3 Mechanical fixing assemblies for 1x PCIe Mini card;
(two fixing bolts for each PCIe Mini card)
4 Screws that secure the PCIe slot brackets
5 Riser card with 2x PCIe x4 slots
Refer to the information and technical data in the user manual of the installed COMe-bHL6 i5-4402E / i7-
4700EQ Module.
The user's manual of the installed COMe Module can be downloaded from our web page
Search for the name of the installed board.

7.7.2. mSATA Socket

Depending on the system configuration ordered your KBox C-101 can be extended with up to two mSATA SSD.
For installation/removing of the mSATA SSD refer to the subsection 10.2.3, "Installing an mSATA SSD".
28

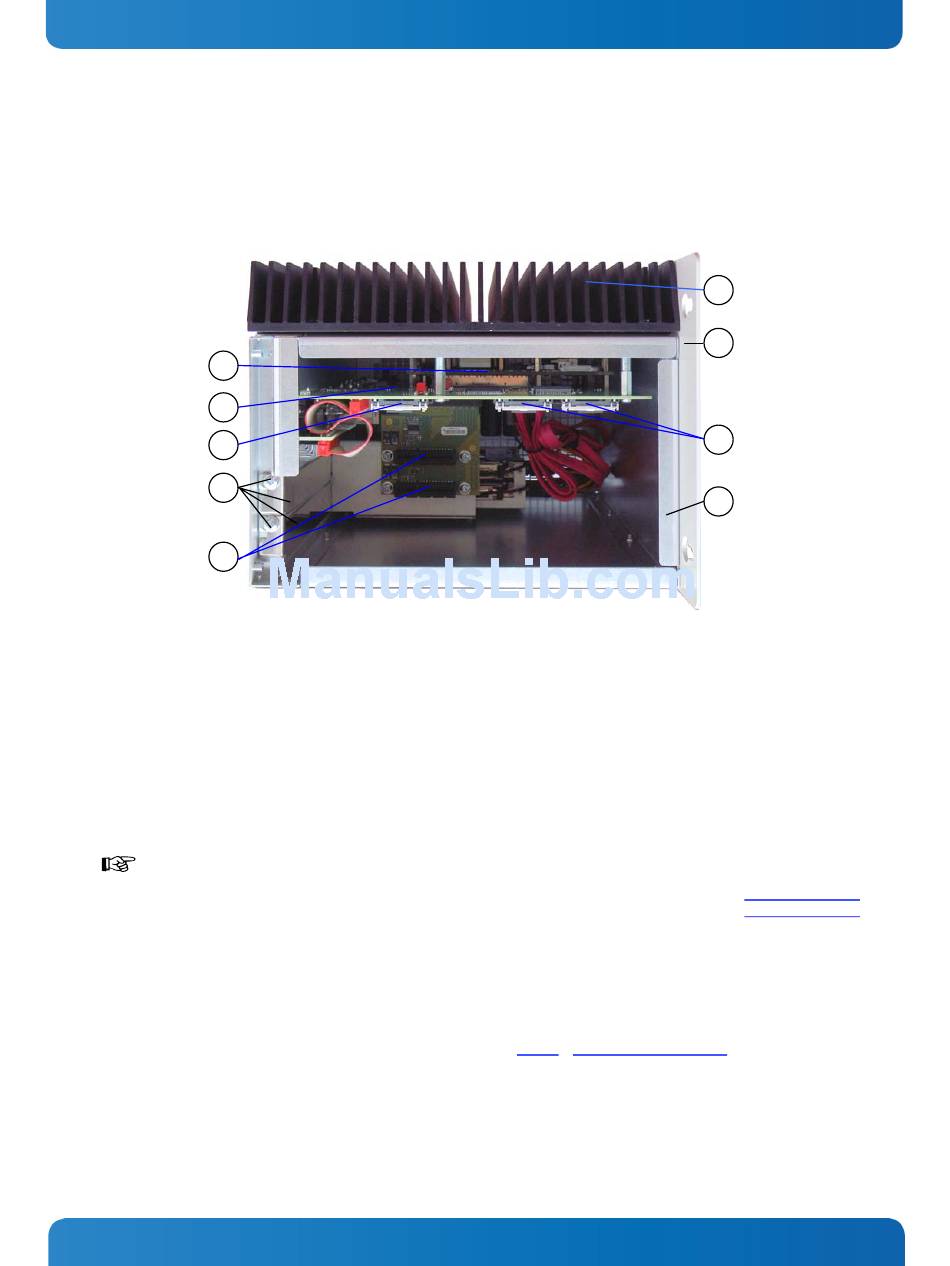

Fig. 28: KBox C-101 - internal view with COM Express module
6 Cover retaining plate on the rear side
7 Mechanical fixing assemblies for 2x 2.5" mSATA SSD
8 Upper mounting bracket with key holes
9 Cooling fins
KBox C-101 – User's Guide (Version 2.00)
(two fixing bolts for each mSATA SSD)
9
8
7
6
