18. Standard Interfaces – Pin Assignments

18.2. Optional Interfaces via Adapter Modules

18.2.1. DVI-D (Single Link)

Pin Signal Name Description
1 TMDS2– Differential TMDS Data 2–
2 TMDS2+ Differential TMDS Data 2+
3 GND TMDS Shield
4–5 NC
6 DVI_SCL DDC EDID data clock
7 DVI_SDA DDC EDID data
8 NC
9 TMDS1– Differential TMDS Data 1–
10 TMDS1+ Differential TMDS Data 1+
11 GND TMDS Shield
12–13 NC
14 DVI_5V 5V / 100mA Power Supply
15 GND Ground
16 DISPDET Hot Plug Detection
17 TMDS0– Differential TMDS Data 0–
18 TMDS0+ Differential TMDS Data 0+
19 GND TMDS Shield
20–21 NC
22 GND TMDS Shield
23 TMDSSCL+ Differential TMDS Clock+
24 TMDSSCL- Differential TMDS Clock -
66
KBox C-101 – User's Guide (Version 2.00)

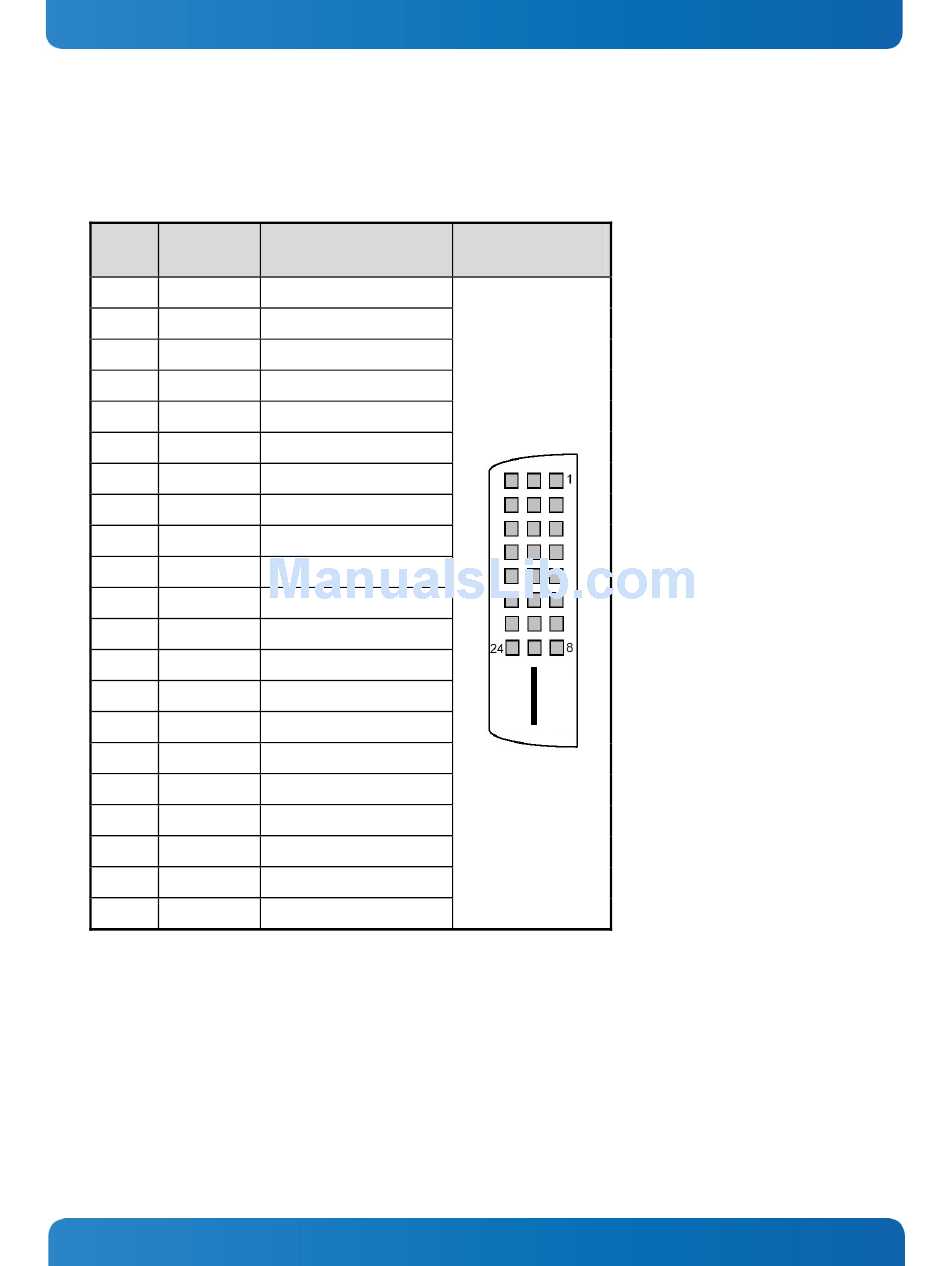

DVI-D Connector
(female)
17
