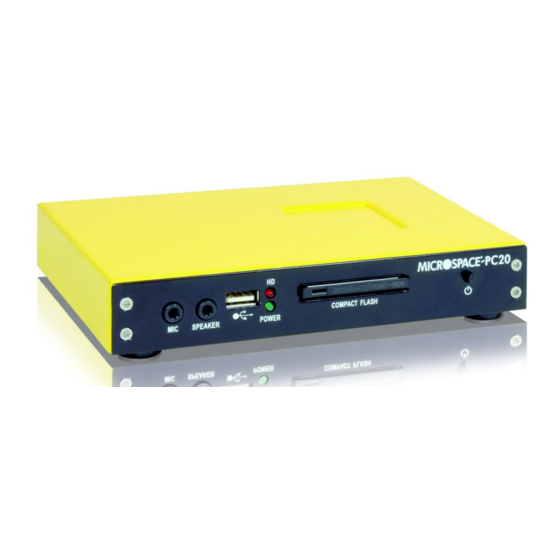

- Page 1 MPC20/20L/21/21C MPC20WOL/21WOL Document Revision 101 If it's embedded it's Kontron.
-
Page 3: Table Of Contents
Packing List ......................... 12 System Overview ........................12 Differences between the MPC20, MPC21, MPC21C................13 Assembly Options for the MPC20/21 ..................13 Functional Block Diagram ....................... 14 ® MICROSPACE Documentation ....................14 Specifications................15 MPC20/20L/21/21C Incompatibilities to a Standard PC/AT............. 18 Safety Regulations.................19 www.kontron.com... - Page 4 Front of the MPC21/21C......................25 5.1.4 Rear of the MPC21 ........................ 26 5.1.5 Rear of the MPC21C....................... 27 5.1.6 Power Supply Connector ......................28 DC-Power Input Specifications ....................28 5.2.1 Nominal DC-Power Input Voltage ..................... 28 5.2.2 Minimal DC-Power Input Voltage Specification................28 www.kontron.com...
- Page 5 Side Views ........................... 40 Front Plate MPC21/21C ......................41 Mounting Plate MPC20/20L/21/21C ..................42 Wall Mounting Kit........................43 10 Core BIOS ..................45 10.1 BIOS History ........................45 10.2 Setup Menu Screens and Navigation ..................45 10.3 BIOS Setup .......................... 46 www.kontron.com...
- Page 6 11.1.3 Wake On LAN (WOL) ......................50 11.2 MPC20/20L/21/21C ....................... 53 11.2.1 Boot from LAN (PXE) ......................53 11.2.2 PXE License Order Form (for MPC20 / MPC20L / MPC21 / MPC21C) ........... 55 12 Appendix A: Document Revision History ..........58 13 Index..................59 www.kontron.com...
-
Page 7: User Information
Warranty This Kontron AG product is warranted against defects in material and workmanship for the warranty period from the date of shipment. During the warranty period, Kontron AG will, at its discretion, decide to repair or replace defective products. Within the warranty period, the repair of products is free of charge as long as warranty conditions are observed. -
Page 8: Technical Support
Kontron AG will not be responsible for any defects or damages to other products not supplied by Kontron AG that are caused by a faulty Kontron AG product. -
Page 9: Rohs Compatible Product Design
Components and sub-assemblies are not subject to product compliance. In other words, since Kontron Compact Computers AG does not deliver ready-made products to end users the WEEE directive is not applicable for KCC. Users are nevertheless encouraged to properly recycle all electronic products that have reached the end of their life cycle. -
Page 10: The Swiss Association For Quality And Management Systems
The SQS Certificate ISO 9001:2000 has been issued to Kontron Compact Computers AG in the field of development, manufacturing and sales of embedded computer boards, embedded computer modules and computer systems. The certification is valid for three years at which time an audit is performed for recertification. -
Page 11: Declaration Of Conformity
MPC20/20L/21/21C MPC20WOL/21WOL / User Information 1.10 Declaration of Conformity www.kontron.com... -
Page 12: Emv Certificate Mpc20 / 20Wol / 21 / 21C / 21Wol
MPC20/20L/21/21C MPC20WOL/21WOL / User Information 1.11 EMV Certificate MPC20 / 20WOL / 21 / 21C / 21WOL www.kontron.com... -
Page 13: Emv Test Diagram, Class A Mpc20 / 20Wol / 21 / 21C / 21Wol
MPC20/20L/21/21C MPC20WOL/21WOL / User Information 1.11.1 EMV Test Diagram, Class A MPC20 / 20WOL / 21 / 21C / 21WOL 1.11.2 EMV Test Diagram, Class B MPC20 / 20WOL / 21 / 21C / 21WOL www.kontron.com... -
Page 14: Overview
First and second LAN: Intel82551ER 100/10Base-T » MPC20L: only 1 LAN » Boot from LAN (PXE) » PS/2 keyboard/mouse support » MPC20L: no PS/2 » 256M CompactFlash boot medium with SLAX LINUX and Free DOS » MPC20L: not available » www.kontron.com... -
Page 15: Differences Between The Mpc20, Mpc21, Mpc21C
Power supply adapter 812029 60Watt power supply Wireless LAN 812028 Mini-PCI WLAN module WOL (Wake On LAN) WOL upgrade for the MPC20 WOL (Wake On LAN) WOL upgrade for the MPC21 U = Upgrade, D = Downgrade, O = Option www.kontron.com... -
Page 16: Functional Block Diagram
This document contains information on hardware requirements, interconnections, and details of how to program the system. Please check the Product CD for further information and manuals. www.kontron.com... -
Page 17: Specifications
S5. » S5-G2 Power Off (LED is blinking). » Available since V2.0 The device can be switched on by the Main Button (or with WOL if available). S5-G3 Power Off (mechanically) » = if available www.kontron.com... - Page 18 Power OFF (green LED is blinking) 45mA 45mA 57mA 57mA Power OFF (LAN cable is connected - LINK LED glows) 67mA 67mA Physical Characteristics Specifications Length: 165mm Depth: 110mm Dimensions Height: MPC20 27mm MPC21x 46mm MPC20 0.5kg Weight MPC21x 0.7kg www.kontron.com...
- Page 19 Criteria B EN61000-4-5 Grade 2: DC-Power lines = 1kV, (1.2/50us) Surge Grade 2: AC-Power lines = 2kV, (1.2/50us) Criteria B EN61000-4-6 Conducted Disturbances Voltage = 10V coupled by case Criteria A Note: All information is subject to change without notice. www.kontron.com...
-
Page 20: Mpc20/20L/21/21C Incompatibilities To A Standard Pc/At
Without a connected keyboard, the NUM-Lock ON field in the BIOS-setup must not be activated. Otherwise the time- out noticeably slows down the reaction speed of the computer as soon as the keyboard is not connected. The PS2 peripherals (KB and MS) are not hot-plug compatible. www.kontron.com... -
Page 21: Safety Regulations
If the computer system is to be installed in a vehicle (car, truck, train), an external, overvoltage protection must be attached. Connecting a zinc oxide based metal oxide varistor (MOV) directly at the supply input connector is recommended. Use a typical 28V clamp voltage for the 12/24V systems. Example: Varistor: B72220S300K (Infineon) Vbreak=30V www.kontron.com... -
Page 22: Ground Potential
The replacement lithium battery must be UL approved. Lithium batteries cannot simply be thrown away as domestic waste. Local regulations concerning the disposal of hazardous waste materials must be followed (e.g., by taking to specially designated collection areas). www.kontron.com... -
Page 23: Protection Against Over-Heating
As long as the computer system is used in the specified operating temperature range, no toxic, corrosive, or explosive fumes or vapors are exposed. [MIL-STD-454M] 4.14 Environmental Safety: Laser Devices Note: No assembled CD/DVD-Drive included. 4.15 Environmental Safety: Noise Emission Note: This computer system is a low noise system; the level is less than 15 dbA. www.kontron.com... -
Page 24: Environmental Safety: Hazardous Environs
Before handling the equipment or when making changes to the configuration, power-off the system and disconnect all power cords from their source. Use a grounding wrist strap or other static-dissipating device to prevent accidental damage caused by static discharge. Only qualified, experienced electronics service personnel should access and handle the equipment. www.kontron.com... -
Page 25: Functions
Hard disk/CompactFlash activity indicator OFF: No power available, system is not running POWER-LED (green) Flashing: Power is applied, but computer is in the "off" state Computer is running COMPACT FLASH Socket for CF Type 1 and Type 2 On/Off-Switch Power switch www.kontron.com... -
Page 26: Rear Of The Mpc20 / 20L
PS/2 keyboard; with a Y-cable a PS/2 mouse (MPC20 only) DC-Input 10-30VDC power input Video output for RGB-CRT/LCD WLAN Option WLAN: antenna LAN-Port B 100MB / with activity / link – LED (MPC20 only) LAN-Port A 100MB / with activity / link – LED www.kontron.com... -
Page 27: Front Of The Mpc21/21C
No power available, system is not running Flashing: Power is applied, but computer is in the "off" state POWER-LED (green) Computer is running COMPACT FLASH Socket for CF Type 1 and Type 2 VIDEO IN CVBS video input On/Off-Switch Power switch www.kontron.com... -
Page 28: Rear Of The Mpc21
Option WLAN: antenna LAN-Port B 100MB / with activity / link – LED LAN-Port A 100MB / with activity / link – LED 2nd Row GND / shield Power Input 10-30VDC power input MPC21: printer interface COM1 Serial interface RS232C www.kontron.com... -
Page 29: Rear Of The Mpc21C
Option WLAN: antenna LAN-Port B 100MB / with activity / link – LED LAN-Port A 100MB / with activity / link – LED 2nd Row GND / shield Power Input 10-30VDC power input COM2 Serial interface RS232C COM1 Serial interface RS232C www.kontron.com... -
Page 30: Power Supply Connector
8V for a moment. The following limits are specified: DC-Input Voltage Duration Comments Highest static input voltage 12/24V Always: nominal operation Lowest static voltage 5.2.3 IT-Power System The product is suitable for use in IT-power systems. www.kontron.com... -
Page 31: Hard Disk 2.5" - Standard Type
Rotation speed 4200 RPM Latency Operating temperature +5°C to +55°C Relative humidity 8% to 90% Power-on hours 333h / month Maximum read/write duty cycles Vibration, operating 0.67G (5-500Hz) random Shock, non-operating 800G / 1ms Vibration, non-operating 3G ( 5-500Hz) www.kontron.com... -
Page 32: Wlan Option
Alliance Certification for 802.11b, 802.11g, 802.11a, WPA, WPA2, WMM, EAP-SIM, » LEAP, PEAP, TKIP, EAP-FAST, EAP-TLS, EAP-TTLS, MD5 » Cisco Compatible Extensions Certification v3.0 » WLAN Standard IEEE 802.11g, 802.11b, 802.11a » Product Safety: UL, C-UL, CB (IEC 60590) » www.kontron.com... -
Page 33: Hardware Installation
To install a PCI/104 card, open the device as follows (use a star TX8 screwdriver): 1. Remove the lower screws marked in green: on the front plate on the back plate 2. Carefully turn over the device and remove the bottom. 3. Gently insert or remove the PCI/104 card. www.kontron.com... -
Page 34: Prepare The Computer System
Print out the following detailed manuals: The Technical/Hardware manual: MSB800_Detailed.pdf The BIOS/Driver/Software manual: GEODE_LX800.pdf Jumper Configuration To open the device, refer to Section 6.1. Jumper Structure Open Closed Remarks CompactFlash master / slave Slave Master Auto-start function Disabled Enabled Disabled corresponds to manual start www.kontron.com... -
Page 35: Connect The Peripherals To The System
The polarity must be correct or the electronic board may be destroyed. Insert a boot device: USB stick, floppy or bootable CompactFlash or use a PXE/RPL server to boot from LAN A (in earlier versions LAN 0). Photo of MPC20 Version 1.0 Photo of MPC21 Version 1.0 www.kontron.com... -
Page 36: Power On The System
In non-auto-start mode the board will remain in standby until the power button is pressed. The green "Power » LED" will light up when the power button is pressed. After a few seconds the screen should display the initial BIOS messages: www.kontron.com... -
Page 37: Bios Setup
Web browser, xine, Mplayer (Multimedia Player) and PDF-Viewer. 8.3.3 ELinOS Demo This demo is a Linux Tetris game generated with ELinOS 4.0 (http://www.sysgo.com/). It shows how fast embedded Linux can boot up and how little storage space it requires. www.kontron.com... -
Page 38: Dimensions And Diagrams
MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Dimensions and Diagrams Front Views MPC20/20L (Version 1.0) MPC21/21C (Version 1.0) www.kontron.com... -
Page 39: Rear Views
MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Rear Views MPC20/20L (Version 1.0) MPC21/21C (Version 1.0) www.kontron.com... -
Page 40: Top Views
MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Top Views MPC20/20L (Version 1.0) www.kontron.com... - Page 41 MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams MPC21 (Version 1.0) www.kontron.com...
-
Page 42: Side Views
MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Side Views MPC20/20L (Version 1.0) MPC21/21C (Version 1.0) www.kontron.com... -
Page 43: Front Plate Mpc21/21C
MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Front Plate MPC21/21C www.kontron.com... -
Page 44: Mounting Plate Mpc20/20L/21/21C
MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Mounting Plate MPC20/20L/21/21C www.kontron.com... -
Page 45: Wall Mounting Kit
MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Wall Mounting Kit Article 812032 www.kontron.com... - Page 46 MPC20/20L/21/21C MPC20WOL/21WOL / Dimensions and Diagrams Drilling Plan www.kontron.com...
-
Page 47: Core Bios
BIOS V1.23 and earlier: flashrom /sFFFC0000 filename.cor BIOS V1.24 and later: flashrom /sFFF80000 filename.cor 1.25 01.2010 Kontron logo added / Ultra-X removed (For previous BIOS versions, please see the GEODE LX800 manual.) For the MPC20WOL / MPC21WOL: Version Date Status Modifications 1.25W... -
Page 48: Bios Setup
Enter the time in the format listed. For example: 11:30:01 then hit <enter>. Changing the Date To change the date, select B from the main menu. The following submenu prompt appears: Enter the date in the format listed. For example: 12/16/2010 then hit <enter>. www.kontron.com... -
Page 49: Boot From Lan - Pxe & Wol (Wake On Lan)
Initializing Intel(R) Boot Agent Version X.X.XX PXE 2.0 Build 083 (WfM 2.0) Note: This display may be hidden by the Kontron splash screen. Consult the Kontron documentation for details. Enter the LAN boot BIOS setup with CTRL+ALT+S. www.kontron.com... - Page 50 2. Once the setting to change has been accessed, press the spacebar until the desired value appears. 3. Once the changes are complete, press F4 to update the adapter with the new values. Any changed configuration values are applied as the boot process resumes. www.kontron.com...
- Page 51 If, during PXE or RPL boot, more than one adapter is installed in a computer and you want to boot from the boot ROM located on a specific adapter, you can do so by removing the adapter from the BIOS Boot Order or disabling the flash by running IBAUTIL -FlashDisable on the desired adapter. www.kontron.com...
-
Page 52: Wake On Lan (Wol)
The host PC has a LAN connection and the WOL.EXE tool (on DIGITAL-LOGIC AG’s Product CD) 3. Preparation: In Windows XP, open the Device Manager / Network adapters and then the Properties of the "Intel(R) PRO/100 M Network Connection". www.kontron.com... - Page 53 4. Shutdown: Shutdown the computer with Standby mode. 5. To Wake Up: On the host computer, start the tool "WOL.EXE" and enter the desired MAC address. By clicking on the "Wake On LAN" button, the client computer will be awakened. www.kontron.com...
- Page 54 MPC20WOL/21WOL / Boot from LAN – PXE & WOL (Wake On LAN) Find the MAC address by opening a DOS window (Start Execute CMD); enter "ipconfig /all" and note down the MAC address (for example 00 AA 00 00 00 00). www.kontron.com...
-
Page 55: Mpc20/20L/21/21C
11.2.1 Boot from LAN (PXE) PXE Setup in the BIOS BIOS Setup Screen with the LAN-BOOT (PXE) Disable/ Enable menu: After enabling the LAN-Boot, the Password must be entered. The password must be requested with the PXE License Order Form in Section 11.2.2. www.kontron.com... - Page 56 Preboot Execution Environment (PXE) Specification 11 Version 2.1 September 20, 1999 Copyright © 1998, 1999 Intel Corporation. All rights reserved. This diagram illustrates the relationship between the NBP (the remote boot program) and the PXE APIs. www.kontron.com...
-
Page 57: Pxe License Order Form (For Mpc20 / Mpc20L / Mpc21 / Mpc21C)
Contact your Sales Manager for more information, price in Price per license: 17 Euro USD/CHF, or if you have any questions. Date: Signature: dd / mm / yyyy Fax this form to your Kontron Sales Manager: (please write in his/her name) Fax: +0041 32 681 58 01 www.kontron.com... - Page 58 MPC20/20L/21/21C MPC20WOL/21WOL / Boot from LAN – PXE & WOL (Wake On LAN) PXE Boot from LAN, BootManager License Agreement www.kontron.com...
- Page 59 MPC20/20L/21/21C MPC20WOL/21WOL / Boot from LAN – PXE & WOL (Wake On LAN) www.kontron.com...
-
Page 60: Appendix A: Document Revision History
MPC20WOL/21WOL / Appendix A: Document Revision History 12 Appendix A: Document Revision History Revision Date Edited by Changes Converted to Kontron CI from DLAG V2.0 including title photo. Updated BIOS. Minor 11.May.2011 WAS/MEG corrections. 14.Dec.2011 Minor adjustments to Kontron CI. -
Page 61: Index
Front ..............36 Jumper J2............34 Front Plate MPC21 ..........41 Mounting Plate ............. 42 Rear ..............37 Side..............40 Top..............38 Manuals ............32 Wall Mounting Kit..........43 Document Revision History ....... 58 Documentation..........5, 14 Operator Security ..........22 Driver Installation........... 35 www.kontron.com... - Page 62 PXE Setup..........47, 53 Technical Support..........6 Trademarks ............. 5 RoHS.............. 6 Wake On LAN ..........47 Wake-on-LAN..........50 Safety Regulations .......... 19 Warranty ............5 Security ............17 WEEE ............. 7 SLAX LINUX............ 35 WLAN Option ..........30 Specifications WOL..............47 Chipset ............... 15 www.kontron.com...
- Page 63 MPC20/20L/21/21C MPC20WOL/21WOL / Index Corporate Offices Europe, Middle East & Africa Switzerland Kontron AG Kontron Compact Computers AG Oskar-von-Miller-Strasse 1 Nordstrasse 11/F 85386 Eching/Munich CH – 4542 Luterbach Germany Switzerland Tel.: +49 (0)8165/ 77 777 Tel.: +41 (0)32 681 58 00...
