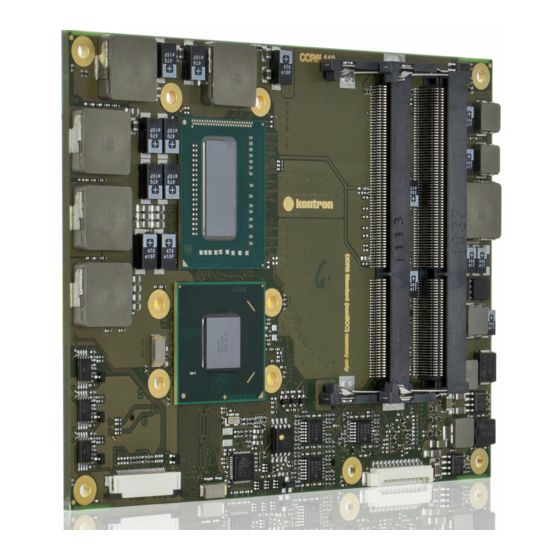

COMe-bIP6 & COMe-bIP6RXT
Our company network supports you worldwide with offices in Germany, Austria,
Switzerland, Great Britain and the USA. For more information please contact:
FORTEC Elektronik AG
Hauptniederlassung
Lechwiesenstr. 9
86899 Landsberg am Lech
Telefon:
+49 (0) 8191 91172-0
Telefax:
+49 (0) 8191 21770
E-Mail:
sales@fortecag.de
Internet:
www.fortecag.de
FORTEC Elektronik AG
Büro Wien
Nuschinggasse 12
A-1230 Wien
Telefon:
+43 1 8673492-0
Telefax:
+43 1 8673492-26
E-Mail:
office@fortec.at
Internet:
www.fortec.at
The information contained in this document has been carefully researched and is, to the best
of our knowledge, accurate. However, we assume no liability for any product failures or
damages, immediate or consequential, resulting from the use of the information provided
herein. Our products are not intended for use in systems in which failures of product could
result in personal injury. All trademarks mentioned herein are property of their respective
owners. All specifications are subject to change without notice.
Manual
Kontron
FORTEC Elektronik AG
Büro West
Hohenstaufenring 55
50674 Köln
Telefon:
Telefax:
E-Mail:
Internet:
ALTRAC AG
(Tochter der FORTEC):
Bahnhofstraße 3
CH-5436 Würenlos
Telefon:
Telefax:
E-Mail:
Internet:
+49 (0) 221 272 273-0
+49 (0) 221 272 273-10
west@fortecag.de
www.fortecag.de
+41 (0) 44 7446111
+41 (0) 44 7446161
info@altrac.ch
www.altrac.ch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMe-bIP6RXT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron COMe-bIP6RXT

Summary of Contents for Kontron COMe-bIP6RXT

  • Page 1 Manual COMe-bIP6 & COMe-bIP6RXT Kontron Our company network supports you worldwide with offices in Germany, Austria, Switzerland, Great Britain and the USA. For more information please contact: FORTEC Elektronik AG FORTEC Elektronik AG Hauptniederlassung Büro West Lechwiesenstr. 9 Hohenstaufenring 55 86899 Landsberg am Lech 50674 Köln...
  • Page 2 COMe-bIP6 Document Revision 140 www.kontron.com...

  • Page 4: Table Of Contents

    Documentation......................9 COM Express® Benefits........................9 Product Specification................10 Module definition........................10 Functional Specification....................... 12 Block Diagram COMe-bIP6......................20 Block Diagram COMe-bIP6RXT......................21 Accessories..........................22 Electrical Specification........................ 23 3.6.1 Supply Voltage........................... 23 3.6.2 Power Supply Rise Time........................ 23 3.6.3 Supply Voltage Ripple........................
  • Page 5 COMe-bIP6 / LPC............................37 Serial Peripheral Interface (SPI)....................38 boot............................ 38 M.A.R.S............................ 40 UART............................41 Fast I2C............................ 42 GPIO - General Purpose Input and Output..................43 4.10 Dual Staged Watchdog Timer......................44 4.11 Intel® Fast Flash Standby™ / Rapid Start Technology™...............45 4.12 Speedstep Technology........................
  • Page 6 COMe-bIP6 / POST Codes..........................76 8.4.1 Start AMI® Aptio Setup Utility....................... 76 BIOS Setup..........................78 8.5.1 Main............................78 8.5.2 Advanced..........................80 8.5.3 Chipset........................... 112 8.5.4 Boot............................128 8.5.5 Security..........................130 8.5.6 Save & Exit..........................132...

  • Page 7: User Information

    “as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned.

  • Page 8: Warranty

    COMe-bIP6 / User Information Warranty For this Kontron Europe GmbH product warranty for defects in material and workmanship exists as long as the warranty period, beginning with the date of shipment, lasts. During the warranty period, Kontron Europe GmbH will decide on its discretion if defective products are to be repaired or replaced.

  • Page 9: Introduction

    Kontron's Computer-on-Module for COM Express® basic with 3rd Generation of Intel® Core(TM) Series. With support for Pin-out Type 2 and Type 6, Kontron's module covers both the need for latest interface technology and the need to extend life-time for existing baseboard designs.

  • Page 10: Com Express® Documentation

    This product manual serves as one of three principal references for a COM Express® design. It documents the specifications and features of COMe-bIP6. Additional references are available at your Kontron Support or at PICMG®: » The COM Express® Specification defines the COM Express® module form factor, pin-out, and signals. This document is available at the PICMG®...

  • Page 11: Product Specification

    COMe-bIP6 / Product Specification 3 Product Specification Module definition The COM Express® basic sized Computer-on-Module COMe-bIP6 (CCR6) follows pin-out Type 6 and is compatible to PICMG specification COM.0 Rev 2.0. The COMe-bIP6 based on latest Chief River platform is available in different variants to cover the demand of different performance, price and power: Commercial grade modules (0°C to 60°C operating) Product Number...
  • Page 12 Atmel AT97SC3204 -40 to +85°C 38024-0000-17-2 COMe-bIP6RXT i7-3517UE Intel® Core™ i7-3517UE QM77 2xDDR3-1600 ECC HD4000 Atmel AT97SC3204 -40 to +85°C Please contact your local sales for further information and MOQ for RXT modules. The COMe-bIP6RXT is available project based only...

  • Page 13: Functional Specification

    COMe-bIP6 / Product Specification Functional Specification Processor The 22nm Intel® 3rd Gen Core™ i7/i5/i3/Celeron® embedded (Ivy Bridge) CPU family with 31x24mm package size (FCBGA1023 socket) supports: » Intel® Turbo Boost Technology 2.01 » Intel® 64 » Intel® Virtualization Technology (VT-x) »...
  • Page 14 COMe-bIP6 / Product Specification The integrated Intel® HD Graphics 4000 supports: » GraphicsTechnology GT1 with 6 Execution Units » GraphicsTechnology GT2 with 16 Execution Units » Intel® Quick Sync Video » Intel® InTru™ 3D Technology » Intel® Wireless Display » Intel® Flexible Display Interface (Intel® FDI) »...
  • Page 15 COMe-bIP6 / Product Specification Intel® Core™ Core™ Core™ Core™ Core™ Core™ Core™ Celeron® Celeron® Celeron® i7-3615QE i7-3612QE i7-3555LE i7-3517UE i5-3610ME i3-3120ME i3-3217UE 1020E 1047UE 927UE # of Cores # of Threads TDP Core frequency (HFM) 2300MHz 2100MHz 2500MHz 1700MHz 2700MHz 2400MHz 1600MHz 2200MHz...
  • Page 16 COMe-bIP6 / Product Specification Memory Sockets 2x DDR3 SO-DIMM Memory Type DDR3-1333/1600 (ECC on RXT Ver.) 2x8GB Maximum Size Dual Channel Technology Chipset The 65nm Intel® 7-Series Platform Controller Hub Panther Point supports: » PCI Express Revision 2.0 » PCI Express Configurations x1, x2, x4 »...
  • Page 17 COMe-bIP6 / Product Specification Graphics Core The integrated Intel® HD4000 (Gen7) supports: Graphics Core Render Clock GT1 /GT2; Base clock: 350/650 MHz; GT Turbo: up to 1000 MHz GT2: 16EU / GT1: 6EU Execution Units / Pixel Pipelines 1720MB Max Graphics Memory 25.6 GFX Memory Bandwidth (GB/s) DVMT...
  • Page 18 COMe-bIP6 / Product Specification Storage onboard SSD SD Card support IDE Interface Serial-ATA 2x SATA 6Gb/s, 2x SATA 3Gb/s NCQ, HotPlug, Staggered Spinup, eSATA, PortMultiplier SATA AHCI 0, 1, 5, 10, MATRIX (QM77 only) SATA RAID If SATA AHCI or RAID is disabled in setup, the SATA Interface only supports 3Gb/s transfer rate and Staggered Spin-Up.
  • Page 19 COMe-bIP6 / Product Specification Connectivity 8x USB 2.0 USB 2.0 4x USB 3.0 USB 3.0 USB Client PCI External Masters 7x PCIe x1 Gen2 PCI Express 8x PCIe without LAN Max PCI Express PCI Express x2/x4 configuration YES (Softstrap option) Ethernet 10/100/1000 Mbit Intel®...

  • Page 20: Additional Features

    Rapid Shutdown @ RXT Ver. Power Consumption and Performance 10 - 58W Full Load Power Consumption Kontron Performance Index 18289 - 76117 1319 - 2740 Kontron Performance/Watt *Measured Values. Please note the maximum Power Consumption with activated Turbo Mode in chapter Turbo 2.0...

  • Page 21: Block Diagram Come-Bip6

    COMe-bIP6 / Product Specification Block Diagram COMe-bIP6 Standard XDP Debug component DDR3 DDR3-1333 DDR3-1600 SODIMM Connector Option Intel® 3rd Generation Core DDR3 DDR3-1333 SODIMM DDR3-1600 Connector GMA HD Gen7 x16 PEG VBAT 1x16 / 2x8 / 1x8 + 2x4 5VSB PECI PWM FAN Control NCT7802Y...

  • Page 22: Block Diagram Come-Bip6Rxt

    COMe-bIP6 / Product Specification Block Diagram COMe-bIP6RXT Standard XDP Debug component DDR3 ECC DDR3-1333 DDR3-1600 SODIMM Connector Option Intel® 3rd Generation Core DDR3 ECC DDR3-1333 SODIMM DDR3-1600 Connector GMA HD Gen7 x16 PEG VBAT 1x16 / 2x8 / 1x8 + 2x4...

  • Page 23: Accessories

    Cable adapter to connect FAN to module (COMe basic/compact) Part Number Miscellaneous Comment 18029-0000-00-0 MARS Smart Battery Kit Starterkit Kontron Mobile Application platform for Rechargeable Systems Part Number DDR3 SODIMM, commercial temperature grade 97015-1024-16-0 DDR3-1600 SODIMM 1GB 97015-2048-16-0 DDR3-1600 SODIMM 2GB...

  • Page 24: Electrical Specification

    COMe-bIP6 / Product Specification Electrical Specification 3.6.1 Supply Voltage Following supply voltage is specified at the COM Express® connector: VCC: 8.5V - 20V 5V DC +/- 5% Standby: 2.5V - 3.47V RTC: - 5V Standby voltage is not mandatory for operation. - Extended Temperature (E1) variants are validated for 12V supply only 3.6.2 Power Supply Rise Time...

  • Page 25: Atx Mode

    COMe-bIP6 / Product Specification 3.6.5 ATX Mode By connecting an ATX power supply with VCC and 5VSB, PWR_OK is set to low level and VCC is off. Press the Power Button to enable the ATX PSU setting PWR_OK to high level and powering on VCC. The ATX PSU is controlled by the PS_ON# signal which is generated by SUS_S3# via inversion.

  • Page 26: Power Control

    COMe-bIP6 / Product Specification Power Control Power Supply The COMe-bIP6 supports a power input from 8.5V - 20V. The supply voltage is applied through the VCC pins (VCC) of the module connector. Power Button (PWRBTN#) The power button (Pin B12) is available through the module connector described in the pinout list. To start the module via Power Button the PWRBTN# signal must be at least 50ms (50ms ≤...

  • Page 27: Environmental Specification

    COMe-bIP6 / Product Specification Environmental Specification 3.8.1 Temperature Specification Kontron defines following temperature grades for Computer-on-Modules in general. Please see chapter 'Product Specification' for available temperature grades for the COMe-bIP6 Temperature Specification Operating Non-operating Validated Input Voltage Commercial grade 0°C to +60°C -30°C to +85°C...

  • Page 28: Standards And Certifications

    UL Listings: » NWGQ2.E304278 » NWGQ8.E304278 WEEE Directive WEEE Directive 2002/96/EC is not applicable for Computer-on-Modules. Conformal Coating Conformal Coating is available for Kontron Computer-on-Modules and for validated SO-DIMM memory modules. Please contact your local sales or support for further details.
  • Page 29 The COM Express® basic form factor Computer-on-Modules successfully passed shock and vibration tests according to » IEC/EN 60068-2-6 (Non operating Vibration, sinusoidal, 10Hz-4000Hz, +/-0.15mm, 2g) » IEC/EN 60068-2-27 (Non operating Shock Test, half-sinusoidal, 11ms, 15g) Validated in Kontron reference housing for EMC the COMe-bIP6 follows the requirements for electromagnetic compatibility standards » EN55022...

  • Page 30: Mtbf

    Estimated RTC battery life (as opposed to battery failures) is not accounted for in the above figures and need to be considered separately. Battery life depends on both temperature and operating conditions. When the Kontron unit has external power; the only battery drain is from leakage paths.

  • Page 31: Mechanical Specification

    Height The COM Express® specification defines a module height of 13mm from module PCB bottom to heatspreader top: Cooling solutions provided from Kontron Europe GmbH for basic sized Computer-on-Modules are 27mm in height from module bottom to Heatsink top. Universal Cooling solutions to be mounted on the HSP (36099-0000-00-x) are 14.3mm in height for an overall height of...

  • Page 32: Module Dimensions

    COMe-bIP6 / Product Specification 3.12 Module Dimensions...

  • Page 33: Thermal Management, Heatspreader And Cooling Solutions

    Thermal Management, Heatspreader and Cooling Solutions A heatspreader plate assembly is available from Kontron Europe GmbH for the COMe-bIP6. The heatspreader plate on top of this assembly is NOT a heat sink. It works as a COM Express®-standard thermal interface to use with a heat sink or external cooling devices.

  • Page 34: Onboard Fan Connector

    COMe-bIP6 / Product Specification 3.14 Onboard Fan Connector Location of the FAN Connector Specification of the FAN Connector: » Part number (Molex) J8: 53261-0371, Mates with: 51021-0300, Crimp terminals: 50079-8100 Pin assignment » Pin1: Tacho, Pin2: VCC, Pin3: GND Electrical characteristic Module Input Voltage 8.5 - 13V >13V...

  • Page 35: Features And Interfaces

    4 Features and Interfaces S5 Eco Mode Kontron’s new high-efficient power-off state S5 Eco enables lowest power-consumption in soft-off state – less than 1 mA compared to the regular S5 state this means a reduction by at least factor 200! In the “normal”...

  • Page 36: Rapid Shutdown

    Overview For “R” or the “RXT” version of the COMe-bIP6, Kontron has implemented a rapid shutdown function. It works as follows: 1) An active-high shutdown signal is asserted by the COM Express Eval Type 2 carrier board via pin C67 of the COM Express connector.
  • Page 37 4V those regulators enter under-voltage lockout mode and cease to operate. Additionally, by using the UVLO mechanism in the design of the RXT module, Kontron minimizes the risk of inadvertently affecting the standard power sequencing logic for such RXT modules. Two of the switching regulators do not require the 5V supply for operation, and in those two cases it will be necessary to clamp the enable inputs to ground when shutdown begins.

  • Page 38: Lpc

    LPC. This leads to limitations for ISA bus and SIO (standard I/O´s like Floppy or LPT interfaces) implementations. All Kontron COM Express® Computer-on-Modules imply BIOS support for following external baseboard LPC Super I/O controller features for the Winbond/Nuvoton 5V 83627HF/G and 3.3V 83627DHG-P:...

  • Page 39: Serial Peripheral Interface (Spi)

    COMe-bIP6 / Features and Interfaces Serial Peripheral Interface (SPI) The Serial Peripheral Interface Bus or SPI bus is a synchronous serial data link standard named by Motorola that operates in full duplex mode. Devices communicate in master/slave mode where the master device initiates the data frame. Multiple slave devices are allowed with individual slave select (chip select) lines.
  • Page 40 COMe-bIP6 / Features and Interfaces Using an external SPI flash To program an external SPI flash follow these steps: » Connect a SPI flash with correct size (similar to BIOS ROM file size) to the module SPI interface » Open pin A34 and B88 to boot from the module BIOS »...

  • Page 41: M.a.r.s

    COMe-bIP6 / Features and Interfaces M.A.R.S. The Smart Battery implementation for Kontron Computer-on-Modules called Mobile Application for Rechargeable Systems is a BIOS extension for external Smart Battery Manager or Charger. It includes support for SMBus charger/selector (e.g. Linear Technology LTC1760 Dual Smart Battery System Manager) and provides ACPI compatibility to report battery information to the Operating System.

  • Page 42: Uart

    COMe-bIP6 / Features and Interfaces UART The COMe-bIP6 supports up to two Serial RX/TX only Ports defined in COM Express® specification on Pins A98/A99 for UART0 and Pins A101/A102 for UART1. The implementation of the UART is compatible to 16450 and is supported by default from most operating systems.

  • Page 43: Fast I2C

    COMe-bIP6 / Features and Interfaces Fast I2C The COMe-bIP6 supports a CPLD implemented LPC to I2C bridge using the WISHBONE I2C Master Core provided from opencores.org. The I2C Interface supports transfer rates up to 40kB/s and can be configured in Setup Specification for external I2C: »...

  • Page 44: Gpio - General Purpose Input And Output

    COMe-bIP6 / Features and Interfaces GPIO - General Purpose Input and Output The COMe-bIP6 offers 4 General Purpose Input (GPI) pins and 4 General Purpose Output (GPO) pins. On a 3.3V level digital in- and outputs are available. Signal Description GPI0 General Purpose Input 0 GPI1...

  • Page 45: Dual Staged Watchdog Timer

    B27 on COM Express® Connector offers a signal that can be asserted when a watchdog timer has not been triggered within time. It can be configured to any of the 2 stages. Deassertion of the signal is automatically done after reset. If deassertion during runtime is necessary please ask your Kontron technical support for further help.

  • Page 46: Intel® Fast Flash Standby™ / Rapid Start Technology

    COMe-bIP6 / Features and Interfaces 4.11 Intel® Fast Flash Standby™ / Rapid Start Technology™ The target of Intel® Fast Flash Standby™ (iFFS) (also known as Intel® Rapid Start Technology™ iRST) is to get a wake-up time from S4 compareable to S3. Normally S4 is caused by OS which stores it's information to the hard disk and does then a normal shutdown.
  • Page 47 COMe-bIP6 / Features and Interfaces Benefits » System transitions from S3 to S4 automatically » Up to 6x battery life compared to Standby » Resume time reduced up to 75% Measured resume times from Power-on to Win7 Log-on Screen on COMe-mCT10: »...

  • Page 48: Speedstep Technology

    COMe-bIP6 / Features and Interfaces 4.12 Speedstep Technology The Intel® processors offer the Intel® Enhanced SpeedStep™ technology that automatically switches between maximum performance mode and battery-optimized mode, depending on the needs of the application being run. It enables you to adapt high performance computing on your applications.

  • Page 49: C-States

    COMe-bIP6 / Features and Interfaces 4.13 C-States New generation platforms include power saving features like SuperLFM, EIST (P-States) or C-States in O/S idle mode. Activated C-States are able to dramatically decrease power consumption in idle mode by reducing the Core Voltage or switching of parts of the CPU Core, the Core Clocks or the CPU Cache.

  • Page 50: Hyper Threading

    COMe-bIP6 / Features and Interfaces 4.14 Hyper Threading Hyper Threading (officially termed Hyper Threading Technology or HTT) is an Intel®-proprietary technology used to improve parallelization of computations performed on PC´s. Hyper-Threading works by duplicating certain sections of the processor—those that store the architectural state but not duplicating the main execution resources. This allows a Hyper- Threading equipped processor to pretend to be two “logical”...

  • Page 51: Dynamic Fsb Frequency Switching

    COMe-bIP6 / Features and Interfaces 4.15 Dynamic FSB Frequency Switching Dynamic FSB frequency switching effectively reduces the internal bus clock frequency by half to further decrease the minimum processor operating frequency from the Enhanced Intel SpeedStep Technology performance states and achieve the Super Low Frequency Mode (Super LFM).

  • Page 52: Vid-X

    COMe-bIP6 / Features and Interfaces 4.16 VID-x The processor implements the VID-x feature for improved control of core voltage levels when the processor enters a reduced power consumption state. VID-x applies only when the processor is in the Intel Dynamic Acceleration Technology performance state and one or more cores are in low-power state (i.e., CC3/CC4/CC6).

  • Page 53: Intel® Turbo Boost Technology And Avx

    COMe-bIP6 / Features and Interfaces 4.17 Intel® Turbo Boost Technology and AVX For applications that are particularly power-hungry, the new processors provide enhanced Intel® Turbo Boost technology. This automatically shifts processor cores and processor graphics resources to accelerate performance, tailoring a workload to give users an immediate performance boost for their applications whenever needed.

  • Page 54: Display Configuration

    COMe-bIP6 / Features and Interfaces 4.18 Display Configuration The chapter describes possible display configurations and supported features for the integrated Intel® HD4000 (Gen7) graphics. Dual Display Configurations in O/S Display LVDS fix LVDS DID LVDS2DVI DP/eDP DP2DVI DP2HDMI DP2CRT SDVO2LVDS SDVO2DVI SDVO2CRT LVDS fix LVDS DID...
  • Page 55 COMe-bIP6 / Features and Interfaces Dual Display configurations in Setup and POST Display LVDS fix LVDS DID LVDS2DVI DP/eDP DP2DVI DP2HDMI DP2CRT SDVO2LVDS SDVO2DVI SDVO2CRT Twin LVDS fix LVDS DID Twin LVDS2DVI DP2DVI DP2HDMI DP2CRT SDVO2LVDS SDVO2DVI SDVO2CRT SDVO2DVI: only supported if BIOS DDI1 is enabled and set to SDVO - DVI 1.0 or SDVO - DVI-I »...
  • Page 56 COMe-bIP6 / Features and Interfaces eDP - embedded Display Port Intel® 6 & 7-Series Chipset based Computer-on-modules support the embedded Display Port shared on Digital Display Interface DDI3. To enable the eDP, LVDS must be switched off by hardware strap option. This feature is implemented in COMe-bSC2 (starting with hardware revision CE 2.x.x) and COMe-bIP2/6 by external strap option on the carrier board.
  • Page 57 » HDMI or DVI usage on a baseboard requires a level shifter Find more details for DDI usage as DisplayPort, HDMI or DVI with schematic examples available on http://emdcustomersection.kontron.com DVI-I Design Topology DVI-I is supported on PCH Digital Display Port B (COM DDI1) only. The implementation involves routing VGA and DVI-D signals to DVI-I connector: »...

  • Page 58: Hybrid Graphics / Multi-Monitor

    COMe-bIP6 / Features and Interfaces 4.19 Hybrid Graphics / Multi-monitor The COMe-bIP6 supports Hybrid Multi-monitor function which is one form of Intel's Hybrid Graphics where integrated graphics (in Chipset or CPU) is available to operate simultaneously with external PEG; PCIe or PCI graphics. This feature enables concurrent function of Intel's integrated Graphics Processing Unit (GPU/iGFX) along with a discrete GPU solution, allowing for operability of greater than two independently-driven displays.

  • Page 59: Intel® Vpro™ Technology

    COMe-bIP6 / Features and Interfaces 4.20 Intel® vPro™ technology Kontron and Intel® are addressing the security and manageability challenges facing embedded systems today with the implementation of Intel® vPro™ technology to enable: » System integrity » Secure isolation » Remote systems management First, system integrity is the ability to identify whether the system hardware or system software has been modified without authorization.

  • Page 60: Acpi Suspend Modes And Resume Events

    COMe-bIP6 / Features and Interfaces 4.21 ACPI Suspend Modes and Resume Events The COMe-bIP6 supports the S-states S0, S3, S4, S5. S5eco Support: YES The following events resume the system from S3: » USB Keyboard (1) » USB Mouse (1) »...

  • Page 61: System Resources

    COMe-bIP6 / System Resources 5 System Resources Interrupt Request (IRQ) Lines IRQ # Used For Available Comment Timer0 Keyboard Cascade COM2 Type2: External SIO COM2, Type6: onboard COM2 COM1 Type2: External SIO COM1, Type6: onboard COM1 COM3 Note(4) Type2: not used, Type6: External SIO COM1 SIO LPT ACPI COM4...

  • Page 62: Memory Area

    COMe-bIP6 / System Resources Memory Area The first 640 kB of DRAM are used as main memory. Using DOS, you can address 1 MB of memory directly. Memory area above 1 MB (high memory, extended memory) is accessed under DOS via special drivers such as HIMEM.SYS and EMM386.EXE, which are part of the operating system.

  • Page 63: Peripheral Component Interconnect (Pci) Devices

    COMe-bIP6 / System Resources Peripheral Component Interconnect (PCI) Devices All devices follow the Peripheral Component Interconnect 2.3 (PCI 2.3) respectivily the PCI Express Base 1.0a specification. The BIOS and OS control memory and I/O resources. Please see the PCI 2.3 specification for details. PCI Device B:D:F PCI IRQ...

  • Page 64: System Management (Sm) Bus

    COMe-bIP6 / System Resources System Management (SM) Bus The 8-bit SMBus addresses uses the LSB (Bit 0) for the direction. Bit0 = 0 defines the write address, Bit0 = 1 defines the read address for the device. The 8-bit addresses listed below shows the write adress for all devices. 7-bit SMBus adresses shows the device address without Bit0.

  • Page 65: Connectors

    COMe-bIP6 / Connectors 6 Connectors The pin-outs for Interface Connectors X1A and X1B are documented for convenient reference. Please see the COM Express® Specification and COM Express® Design Guide for detailed, design-level information. Connector Location...

  • Page 66: Pinout List

    COMe-bIP6 / Pinout List 7 Pinout List General Signal Description Type Description I/O-3,3 Bi-directional 3,3 V IO-Signal Bi-dir. 3,3V I/O (5V Tolerance) I/O-5T Bi-directional 5V I/O-Signal I/O-5 3,3V Input I-3,3 I/OD Bi-directional Input/Output Open Drain I-5T 3,3V Input (5V Tolerance) Output Analog Output Open Drain 1,8V Output...

  • Page 67: Connector X1A Row A

    COMe-bIP6 / Pinout List Connector X1A Row A Signal Description Type Termination Comment Power Ground GBE0_MDI3- GBE0_MDI3_N / Ethernet Receive Data - DP-I GBE0_MDI3+ GBE0_MDI3_P / Ethernet Receive Data - DP-I GBE0_LINK100# GBE0_LINK100# / Ethernet Speed LED O-3.3 GBE0_LINK1000# GBE0_LINK1000# / Ethernet Speed LED O-3.3 GBE0_MDI2- GBE0_MDI2_N / Ethernet Receive Data -...
  • Page 68 COMe-bIP6 / Pinout List PCIE_TX1- PCI Express lane 1 - Transmit DP-O Power Ground GPI2 EXT_GPI2 / General Purpose Input 2 I-3.3 PU 10k 3.3V (S0) PCIE_TX0+ PCI Express lane 0 + Transmit DP-O PCIE_TX0- PCI Express lane 0 - Transmit DP-O Power Ground LVDS_A0+...

  • Page 69: Connector X1A Row B

    COMe-bIP6 / Pinout List Connector X1A Row B Signal Description Type Termination Comment Power Ground GBE0_ACT GBE0_ACT# / Ethernet Activity LED LPC_FRAME# LPC_FRAME# / LPC Frame Indicator O-3.3 LPC_AD0 LPC_AD0 / LPC Adress & DATA Bus I/O-3.3 int. PU 20k in PCH LPC_AD1 LPC_AD1 / LPC Adress &...
  • Page 70 COMe-bIP6 / Pinout List PCIE_RX1+ PCI Express lane 1 + receive DP-I PCIE_RX1- PCI Express lane 1 - receive DP-I WAKE0# PCIE_WAKE# I/O-3.3 PU 1k2 3.3V (S5) WAKE1# WAKE1# I-3.3 PU 10k 3.3V (S5) PCIE_RX0+ PCI Express lane 0 + receive DP-I PCIE_RX0- PCI Express lane 0 - receive...

  • Page 71: Connector X1B Row C

    COMe-bIP6 / Pinout List Connector X1B Row C Signal Description Type Termination Comment Power Ground Power Ground USB_SSRX0- USB Super Speed Receive - (0) DP-I only available with Panther Point PCHs (QM77/HM76) USB_SSRX0+ USB Super Speed Receive + (0) DP-I only available with Panther Point PCHs (QM77/HM76) Power Ground USB_SSRX1-...
  • Page 72 COMe-bIP6 / Pinout List PEG_RX4+ PCIexpress Graphics receive + (4) DP-I PEG_RX4- PCIexpress Graphics receive - (4) DP-I RSVD n.c. PEG_RX5+ PCIexpress Graphics receive + (5) DP-I PEG_RX5- PCIexpress Graphics receive - (5) DP-I Power Ground PEG_RX6+ PCIexpress Graphics receive + (6) DP-I PEG_RX6- PCIexpress Graphics receive - (6)

  • Page 73: Connector X1B Row D

    COMe-bIP6 / Pinout List Connector X1B Row D Signal Description Type Termination Comment Power Ground Power Ground USB_SSTX0- USB Super Speed Transmit - (0) DP-O only available with Panther Point PCHs (QM77/HM76) USB_SSTX0+ USB Super Speed Transmit + (0) DP-O only available with Panther Point PCHs (QM77/HM76) Power Ground USB_SSTX1-...
  • Page 74 COMe-bIP6 / Pinout List PEG_TX4+ PCIexpress Graphics Transmit + (4) DP-O PEG_TX4- PCIexpress Graphics Transmit - (4) DP-O Power Ground PEG_TX5+ PCIexpress Graphics Transmit + (5) DP-O PEG_TX5- PCIexpress Graphics Transmit - (5) DP-O Power Ground PEG_TX6+ PCIexpress Graphics Transmit + (6) DP-O PEG_TX6- PCIexpress Graphics Transmit - (6)

  • Page 75: Bios Operation

    » BIOS Date: mm/dd/yyyy hh:mm:ss » BIOS Version: CCR6RXXX BIOS Update Kontron provides continuous BIOS updates for Computer-on-Modules. The updates are provided for download on http://emdcustomersection.kontron.com with a detailed change description within the according Product Change Notification (PCN). Please register for EMD Customer Section to get access to BIOS downloads and PCN service.
  • Page 76 COMe-bIP6 / BIOS Operation Backup the BIOS / Create a BIOS with custom defaults: » Change your BIOS settings according your needs » Save and Exit Setup with option “Save as User Defaults”. Your customized settings are now stored inside the flash in a second area additional to the manufacturer defaults »...

  • Page 77: Setup Guide

    COMe-bIP6 / BIOS Operation Setup Guide The Aptio Setup Utility changes system behavior by modifying the Firmware configuration. The setup program uses a number of menus to make changes and turn features on or off. Functional keystrokes in POST: Function Enter Setup Enter Setup Boot Menu...
  • Page 78 COMe-bIP6 / BIOS Operation Item Specific Help Window The Help window on the right side of each menu displays the Help text for the selected item. It updates as you move the cursor to each field. General Help Window Pressing <F1> on a menu brings up the General Help window that describes the legend keys and their alternates. Press <Esc>...

  • Page 79: Bios Setup

    COMe-bIP6 / BIOS Operation BIOS Setup 8.5.1 Main Feature Options Description System Language English Choose the system default language System Date [mm/dd/yyyy] Set the Date. Use 'Tab' to switch between Date elements System Time [hh:mm:ss] Set the Time. Use 'Tab' to switch between Time elements...
  • Page 80 COMe-bIP6 / BIOS Operation Platform Information...

  • Page 81: Advanced

    COMe-bIP6 / BIOS Operation 8.5.2 Advanced...

  • Page 82: Pci Subsystem Settings

    COMe-bIP6 / BIOS Operation PCI Subsystem Settings Feature Options Description PCI ROM Priority Legacy ROM In case of multiple Option ROMs (Legacy and EFI Compatible), specifies what PCI Option ROM to launch EFI Compatible ROM PCI Latency Timer Value to be programmed into PCI Latency Timer Register 32 …...

  • Page 83: Acpi Settings

    COMe-bIP6 / BIOS Operation ACPI Settings Feature Options Description Enable ACPI Auto Congiguration Enables or Disables BIOS ACPI Auto Configuration Disabled Enabled Enable Hibernation Disabled Enables or Disables System ability to Hibernate (OS/S4 Sleep State) Enabled ACPI Sleep State Suspend Disabled Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed S3 (StR)

  • Page 84: Trusted Computing

    COMe-bIP6 / BIOS Operation Trusted Computing Feature Options Description TPM Support Enables or Disables TPM support. O.S. will not show Disable Security Device. TCG EFI protocol and INT1A interface Enable will not be available TPM State Enable/Disable Security Device. Note: Your Computer Disabled will reboot during restart in order to change Sate of the Enabled...

  • Page 85: Cpu Configuration

    COMe-bIP6 / BIOS Operation CPU Configuration Feature Options Description Hyper-Threading Disabled Enables/Disables the Intel® Hyper Threading Technology HTT supported by Core i7/i5 Enabled Active Proc Cores Number of cores to enable in each processors package Execute Disable Bit Disabled XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS Enabled Hardware Prefetcher...
  • Page 86 COMe-bIP6 / BIOS Operation CPU Information...
  • Page 87 COMe-bIP6 / BIOS Operation Miscellaneous Feature Options Description S5 Eco Reduce supply current in Soft Off State S5 to less than Disabled 1mA. If enabled, power button is the only wakeup Enabled source in S5. See chapter S5 Eco for more details Reset Button Behavior Select the behavior of Reset Button.
  • Page 88 COMe-bIP6 / BIOS Operation Onboard I2C Bus Configuration Feature Options Description Onboard I2C Speed Select I2C Bus Speed in kHz, min. 1kHz, max 400kHz … …...
  • Page 89 COMe-bIP6 / BIOS Operation Watchdog Feature Options Description Auto-reload Enable automatic reload of watchdog timers on timeout Disabled Enabled Global Lock If set to enabled, all Watchdog registers (except Disabled WD_KICK) become read only until the board is reset Enabled Stage 1 Mode Select Action for first Watchdog stage Disabled...
  • Page 90 COMe-bIP6 / BIOS Operation Smart Battery Configuration Feature Options Description M.A.R.S. Disabled Preset M.A.R.S. Smart Battery System mode. System must be restarted to reflect mode changes AUTO Charger Manager...
  • Page 91 COMe-bIP6 / BIOS Operation Battery Information...
  • Page 92 COMe-bIP6 / BIOS Operation Generic LPC Decode Ranges Feature Options Description Generic LPC Decode 1 Enable generic LPC decode range Disabled Enabled - Base Address Base address of the generic decode range. Valid 0100h between 0100h - FFF0h. Must be 8-byte alligned - Length Length of the generic decode range.
  • Page 93 COMe-bIP6 / BIOS Operation Thermal Configuration Feature Options Description...
  • Page 94 COMe-bIP6 / BIOS Operation Critical Trip Point 111°C This value controls the temperature of the ACPI Critical 15°C … 119°C Trip Point - the point in which the OS will shut the system off. Note: 100°C is the Plan Of Record (POR) for all Intel mobile processors Passive Trip Point Disabled...
  • Page 95 COMe-bIP6 / BIOS Operation Passive Cooling The ACPI OS assesses the optimum CPU performance change necessary to lower the temperature using the following equation ΔP[%] = TC1(Tn-Tn-1) + TC2(Tn-Tt) ΔP is the performance delta, Tt is the target temperature = passive cooling trip point. The two coefficients TC1 and TC2 and the sampling period TSP are hardware dependent constants the end user must supply.
  • Page 96 COMe-bIP6 / BIOS Operation Intel Fast Flash Standby Feature Options Description iFFS Disabled Enable/Disable Intel Fast Flash Standby / Intel Rapid Enabled Start Technology Entry on S3 RTC Wake Disabled iFFS invocation upon S3 RTC wake Enabled Entry After Enable RTC wake timer at S3 entry Immediately 1 minute 2 minutes...
  • Page 97 COMe-bIP6 / BIOS Operation PCH-FW Configuration Feature Options Description MDES BIOS Status Code Enable/Disable MDES BIOS Status Code Disabled Enabled...

  • Page 98: Firmware Update Configuration

    COMe-bIP6 / BIOS Operation Firmware Update Configuration Feature Options Description Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function Disabled Enabled...
  • Page 99 COMe-bIP6 / BIOS Operation USB Configuration Feature Options Description Legacy USB Support Enables Legacy USB support. AUTO option disables Enabled legacy support if no USB devices are connected. Disabled DISABLE option will keep USB devices available only for AUTO EFI applications. USB3.0 Support Enabled Enable/Disable USB3.0 (XHCI) Controller support.
  • Page 100 COMe-bIP6 / BIOS Operation Module COM Port Configuration...
  • Page 101 COMe-bIP6 / BIOS Operation Super IO Configuration This setup option is available if a LPC SuperI/O Nuvoton 83627 is present on the baseboard. By default the COMe-bIP6 supports the legacy interfaces of a 5V 83627HF(J) or 3.3V 83627DHG-P on external LPC. The SIO hardware monitor is not supported in setup.

  • Page 102: Serial Port 1 Configuration

    COMe-bIP6 / BIOS Operation Serial Port 1 Configuration Feature Options Description Serial Port Disabled Enable or Disable Serial Port (COM) 0 Enabled Change Settings Select an optimal setting for SuperIO device. AUTO IO=3F8h; IRQ=4; IO=3F8h, IRQ=3,4,5,6,7,10,11,12; IO=2F8h, IRQ=3,4,5,6,7,10,11,12; IO=3E8h, IRQ=3,4,5,6,7,10,11,12; IO=2E8h, IRQ=3,4,5,6,7,10,11,12;...

  • Page 103: Serial Port 2 Configuration

    COMe-bIP6 / BIOS Operation Serial Port 2 Configuration Feature Options Description Serial Port Disabled Enable or Disable Serial Port (COM) 1 Enabled Change Settings Select an optimal setting for SuperIO device. AUTO IO=2F8h; IRQ=3; IO=3F8h, IRQ=3,4,5,6,7,10,11,12; IO=2F8h, IRQ=3,4,5,6,7,10,11,12; IO=3E8h, IRQ=3,4,5,6,7,10,11,12; IO=2E8h, IRQ=3,4,5,6,7,10,11,12;...

  • Page 104: Parallel Port Configuration

    COMe-bIP6 / BIOS Operation Parallel Port Configuration Feature Options Description Parallel Port Disabled Enable or Disable the Parallel Port (LPT/LPTE) Enabled Change Settings Select an optimal setting for SuperIO device. AUTO IO=378h; IRQ=5; IO=378h, IRQ=5,6,7,10,11,12; IO=278h, IRQ=5,6,7,10,11,12; IO=3BCh, IRQ=5,6,7,10,11,12; IO=378h; IO=278h;...

  • Page 105: Serial Port 3 Configuration

    COMe-bIP6 / BIOS Operation Serial Port 3 Configuration Feature Options Description Serial Port Disabled Enable or Disable COMe Serial Port 0 (COM3) Enabled...
  • Page 106 COMe-bIP6 / BIOS Operation Serial Port 4 Configuration Feature Options Description Serial Port Disabled Enable or Disable COMe Serial Port 1 (COM4) Enabled...
  • Page 107 COMe-bIP6 / BIOS Operation H/W Monitor Hardware Monitor measurements and configuration for the onboard Nuvoton NCT7802Y. Feature Value/Options Description CPU Temperatue xx°C Shows the measured temperature of the CPU Diode with onboard HWM PCH Temperature xx°C Shows the internal Platform Controller Hub temperature Module Temperature xx°C Shows the internal hardwaremonitor temperature...

  • Page 108: Serial Port Console Redirection

    COMe-bIP6 / BIOS Operation Serial Port Console Redirection Feature Options Description Console Redirection Enable/Disable Serial Port COM1 Console Redirection Disabled Enabled Console Redirection Enable/Disable Serial Port COM2 Console Redirection Disabled Enabled Console Redirection Enable/Disable Serial Port COM3 Console Redirection Disabled Enabled Console Redirection Enable/Disable Serial Port COM4 Console Redirection...

  • Page 109: Console Redirection Settings

    COMe-bIP6 / BIOS Operation Console Redirection Settings Feature Options Description Terminal Type VT100 VT100: ASCII char set. VT100+ VT100+: Extends VT100 to support color, function keys, VT_UTF8 etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars ANSI onto 1 or more bytes ANSI: Extended ASCII char set.

  • Page 110: Intel Icc

    COMe-bIP6 / BIOS Operation Intel ICC Feature Options Description Use Wdog Timer w/ ICC Enable Watchdog Timer operation for ICC. If enabled, Disabled Watchdog Timer will be started after ICC-related Enabled changes. This timer detects platform instability caused by wrong clock settings Unused Clocks off Disabled: all clocks turned on.
  • Page 111 COMe-bIP6 / BIOS Operation Clock Spread Spectrum Feature Options Description New SSC spread /0.01% Request SSC percentage in 0.01% increments. Changes will not be applied until any of the 'Apply settings …' choices is pressed. Apply settings immediately Changes will be applied immediately, but forgotten after reboot.
  • Page 112 COMe-bIP6 / BIOS Operation CPU PPM Configuration Feature Options Description CPU DTS Disabled Enable/Disable CPU DTS SMI. If disabled, ACPI can't provide current temperature and passive cooling is not Enabled possible EIST Disabled Enable/Disable the Intel Speedstep Technology Enabled Turbo Mode Disabled Enables/Disables the Intel Processor Turbo Mode 2.0 Enabled...

  • Page 113: Chipset

    COMe-bIP6 / BIOS Operation 8.5.3 Chipset...
  • Page 114 COMe-bIP6 / BIOS Operation PCH-IO Configuration Feature Options Description Launch Storage OpROM Disabled Enable or Disable Boot Option for Legacy Mass Storage Devices with Option ROM Enabled Launch Video OpROM Disabled Enable or Disable execution of the legacy Option ROM for video devices Enabled CLKRUN# logic...

  • Page 115: Lan Configuration

    COMe-bIP6 / BIOS Operation LAN Configuration Feature Options Description PCH LAN Controller Enable/Disable onboard NIC Enabled Disabled Launch PXE OpROM Enable/Disable Boot Option for Legacy Network Devices Disabled Enabled Wake on LAN Enable/Disable integrated LAN to wake the system Disabled Enabled...

  • Page 116: Sata Configuration

    COMe-bIP6 / BIOS Operation SATA Configuration Feature Options Description SATA Controller(s) Enable/Disable SATA Device Enabled Disabled SATA Mode Selection Determines how SATA controller(s) operate AHCI RAID SATA Test mode Enable or disable Test Mode Disabled Enabled OROM UI Delay If enabled, indicates the delay of the OPROM UI Splash 2 Seconds Screen in a normal status 4 Seconds...
  • Page 117 COMe-bIP6 / BIOS Operation HDA Configuration Feature Options Description High Definition Audio Disabled Control Detection of the High definition audio (Azalia) Enabled device. Disabled = HDaudio will be unconditionally disabled. Enabled = HDaudio will be unconditionally Auto enabled. Auto = HDaudio will be enabled if present, disabled otherwise HDA PME Enable Enable/Disable Power Management capability of Audio...
  • Page 118 COMe-bIP6 / BIOS Operation USB Configuration Feature Options Description xHCI Pre-Boot Driver Enabled Enable or disable xHCI Pre-Boot Driver support. When Enabled, the xHCI protocol is established already from Disabled the beginning of POST (PEI). When Disabled, the xHCI protocol is not used by BIOS, only by OS if supported by its drivers xHCI Mode Enables or Disables XHCI for COMe USB 0-3.

  • Page 119: Pci Express Configuration

    COMe-bIP6 / BIOS Operation PCI Express Configuration Feature Options Description PCIe Clock Gating Disabled Enable or Disable PCI Express Clock Gating for each root port Enabled DMI Link ASPM Control Disabled Controls Active State Power Management on both NB side and SB side of the DMI Link Enabled DMI Link Ext Synch Controls Extended Synch on SB side of the DMI Link...
  • Page 120 COMe-bIP6 / BIOS Operation PCI Express Root Port 0/1/2/3/4/5/6 Feature Options Description PCI Express Root Port Disabled Control the PCI Express Root Port Enabled ASPM Support Automatically enable ASPM based on reported Disabled capabilities and known issues L0sL1 Auto Enable or Disable PCI Express Unsupported Request Disabled Reporting Enabled...
  • Page 121 COMe-bIP6 / BIOS Operation SystemAgent Configuration Feature Options Description VT-d Disabled Check to enable Intel® Virtualization Technology for Directed I/O (VT-d) Capability function for SA Enabled...

  • Page 122: Graphics Configuration

    COMe-bIP6 / BIOS Operation Graphics Configuration Feature Options Description Gfx Turbo IMON Curr Graphics turbo IMON current values supported (14-31) Primary Display Select which of IGFX/PEG/PCI Graphics device should be Auto Primary Display IGFX Internal Graphics Keep IGFX enabled based on the setup options Auto Disabled Enabled...

  • Page 123: Lcd Control

    COMe-bIP6 / BIOS Operation LCD Control Feature Options Description Prim IGFX Boot Disp Select the Integrated Graphics Video Device which will Auto be activated during POST. This has no effect if external graphics devices are present LVDS EFP 1 EFP 2 EFP 3 LFP2 Sec IGFX Boot Disp...
  • Page 124 COMe-bIP6 / BIOS Operation Mode Persistence Disabled Enables/Disables Mode Persistence Enabled For SDVO2DVI solutions select 'SDVO - DVI 1.0' or 'SDVO - DVI-I'. For SDVO2CRT select 'SDVO - DVI-I'.
  • Page 125 COMe-bIP6 / BIOS Operation SystemAgent PCIe Configuration Feature Options Description PEG0 - Gen X Configure PEG0 B0:D1:F0 Auto Gen1 Gen2 Gen3 PEG ASPM Disabled Control ASPM support for the PEG Device. This has no Auto effect if PEG is not the currently active device ASPM L0s ASPM L1 ASPM L0sL1...

  • Page 126: Memory Configuration

    COMe-bIP6 / BIOS Operation Memory Configuration Feature Options Description DIMM Profile Default DIMM profile Select DIMM timing profile that should be used Custom Profile XMP profile 1 XMP Profile 2 Memory Frequency Maximum Memory Frequency Selections in MHz Auto 1067 1333 1600 Max TOLUD...
  • Page 127 COMe-bIP6 / BIOS Operation Custom Memory Profile Control Feature Options Description Memory Frequency 1067 Maximum Memory Frequency Selections in MHz 1333 1600 1867 2133 2400 2667 Cas Latency Range 4-18 tRCD Row to Col Delay Range 1-38 Ras Precharge Range 1-38 tRAS Ras Active Time 1-586 Min Write Recovery Time Range 1-38...
  • Page 128 COMe-bIP6 / BIOS Operation GT - Power Management Control Feature Options Description RC6 (Render Standby) Disabled Check to enable render standby support Enabled RC6+ (Deep RC6) Disabled Check to enable Deep RC6 (RC6+) support Enabled...

  • Page 129: Boot

    COMe-bIP6 / BIOS Operation 8.5.4 Boot Feature Options Description Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means idefinite waiting. 0 means no wait (not recommended) Bootup NumLock State Select the keyboard NumLock state Quiet Boot Enables/Disables Quiet Boot option (Boot logo) Disabled...
  • Page 130 COMe-bIP6 / BIOS Operation Boot Option Priority By default, AMI APTIO uses following boot priority if at least one device of a group is connected: » Boot Option #1: Prio 1 Hard Disk » Boot Option #2: Built-in EFI Shell »...

  • Page 131: Security

    COMe-bIP6 / BIOS Operation 8.5.5 Security Feature Options Description Set Administrator Password Set the Administrator Password for Setup Access User Password Set User Password HDDx Set HDD Password...
  • Page 132 COMe-bIP6 / BIOS Operation Set HDD Password Feature Options Description Set User Password Set HDD User Password. Advisable to Power Cycle System after Setting Hard Disk Passwords Set Master Password Set HDD Master Password. Advisable to Power Cycle System after Setting Hard Disk Passwords...

  • Page 133: Save & Exit

    COMe-bIP6 / BIOS Operation 8.5.6 Save & Exit Feature Options Description Save Changes and Exit Exit system setup after saving the changes Discard Changes and Exit Exit system setup without saving any changes Save Changes and Reset Reset system after saving the changes Discard Changes and Reset Reset system without saving any changes Save Changes...
