- Page 1 USER GUIDE KBox B-202-CFL Doc. User Guide, Rev 1.0 Doc. ID: 1065-5686 www.kontron.com // 1...
- Page 2 KBox B-202-CFL - User Guide, Rev 1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 SCADA/MES applications, artificial intelligence and machine learning. In addition, the KBox B-202-CFL meets Class B meets stricter RFI limits makes it suitable not only for use in industrial environments, but also for use in residential and business areas or in their immediate vicinity, making the KBox B-202-CFL the ideal computer for architecture and graphics offices as well as music studios.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
KBox B-202-CFL - User Guide, Rev 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
KBox B-202-CFL - User Guide, Rev 1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. - Page 10 KBox B-202-CFL - User Guide, Rev 1.0 Thermal Considerations ................................. 42 7.1. Active Cooling ......................................42 7.2. Mount Orientation ....................................43 7.3. Minimum Clearance (Keep Out Area) ..............................43 7.4. Third Party Components ..................................43 Installation Instructions ................................. 44 8.1. Chassis Feet ....................................... 45 8.1.1.
-
Page 11: List Of Tables
KBox B-202-CFL - User Guide, Rev 1.0 14.1. Returning Defective Merchandise ..............................74 Storage, Transportation and Maintenance ..........................75 15.1. Storage ........................................75 15.2. Transportation ......................................75 15.3. Maintenance ......................................75 15.3.1. Replacing the Lithium Battery ................................. 75 Warranty ......................................76 16.1. -
Page 12: List Of Figures
Figure 33: Mounting Brackets Wall Mount Options with Top Cover facing the Mounting Surface ........49 Figure 34: Block Diagram of KBox B-202-CFL Smart Variant without Wi-Fi ................53 Figure 35: Block Diagram of KBox B-202-CFL Value Variant without Wi-Fi ................54 Figure 36: Dimensions Front Panel................................ -
Page 13: 1/ General Safety Instructions For It Equipment
Kontron is exempt from accident liability, this also applies during the warranty period. The product has been built and tested according to the basic safety requirements for low voltage (LVD) applications and has left the manufacturer in safety-related, flawless condition. -
Page 14: Electrostatic Discharge (Esd) Precautions
KBox B-202-CFL - User Guide, Rev 1.0 Additional safety instructions for DC power supply circuits To guarantee safe operation of products with DC power supply voltages larger than 60 volts DC or a power consumption larger than 120 VA, observe that: ... -
Page 15: Instructions For The Lithium Battery
KBox B-202-CFL - User Guide, Rev 1.0 1.3. Instructions for the Lithium Battery The KBox B-202-CFL’s mainboard is equipped with a lithium battery. When replacing the battery observe the instructions described in Chapter 15.3.1: Replacing the Lithium Battery. Danger of explosion when replacing with wrong type of battery. Replace only with the same or equivalent type recommended by the manufacturer. -
Page 16: 2/ Introduction
New users are recommended to study the instructions within this user guide before switching on the product. Figure 1: KBox B-202-CFL The KBox B-202-CFL is part of Kontron’s Box PC family designed for high performance, system expandability and low noise needs, intended for 24/7 continuous operation and longtime industrial applications. All components are chosen to ensure a long lifetime, and a broad selection of mounting options guarantees flexibility for user applications. -
Page 17: 3/ Scope Of Delivery
Counter sink screws for mounting brackets or vertical stand 3.1. Packaging The KBox B-202-CFL is packaged together with all standard parts listed in Table 1: Scope of Delivery, in a product specific cardboard package designed to provide adequate protection and absorb shock. -
Page 18: 4/ Product Overview
KBox B-202-CFL - User Guide, Rev 1.0 4/ Product Overview Before working with the KBox B-202-CFL, Kontron recommends that users take a few minutes to learn about the various parts of the product. The KBox B-202-CFL is a high performance PC Box with 8 generation Intel®... -

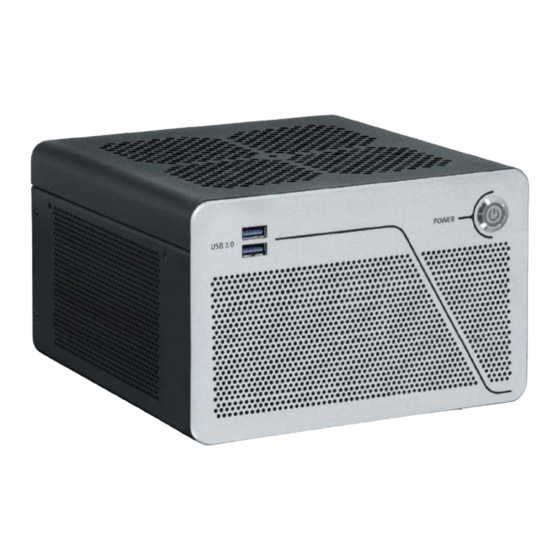

Page 19: Front Side View
4.1.1. Front Connectors and Buttons 4.1.1.1. Power-On Button The power-on button switches on/off the KBox B-202-CFL. The power-on button includes an integrated power LED that lights up blue to indicate the powered on state. Pressing the power-on button for longer than four seconds initiates a forced system shutdown, before switching off the power. -
Page 20: Rear Side Views
The rear panel contains the mainboard I/O interfaces, two PCIe slots, ventilation holes for air-output, two top cover fastening screws, two Wi-Fi antenna breakouts and power connector. The KBox B-202-CFL Smart (Figure 5) and the KBox B-202-CFL Value (Figure 6) support different I/O interfaces. -
Page 21: Rear Panel Connectors
KBox B-202-CFL - User Guide, Rev 1.0 Figure 6: Rear Panal KBox B-202-CFL (Value) PS/2 Keyboard 2x USB 2.0 15 PCIe Slot 1 (Default slot) shown with expansion card PS/2 Mouse 2 x USB 3.1 Gen 1 16 24 VDC (future option) USB 2.0... - Page 22 The KBox B 202-CFL Smart supports two DP V 1.2 ports and the KBox B 202-CFL Value supports one DP V 1.2 port KBox B-202-CFL Smart -supports up to three displays(2x DP+1x DVI-D) KBox B-202-CFL Value -supports up to two displays (1x DP+1x DVI-D) Using an adapter to convert a DP signal to DVI or HDMI may cause disturbance.
- Page 23 4.2.1.8. USB 3.1 Gen 2 Ports The USB 3.1 Gen 2 ports are backward compatible enabling the connection of USB 3.0 or USB 2.0 devices. Kontron recommends the use of USB 3.1 Gen 2 compliant devices and cables only. The use of devices and cables that violate the USB 3.1 Gen 2 specification may cause non-recognition of the device or read/write errors.
- Page 24 KBox B-202-CFL - User Guide, Rev 1.0 4.2.1.11. DC-IN Connector The 12 VDC Power Jack connects directly to the supplied external AC/DC Power Supply. For more power specification information, see Chapter 10.6: Power Specification. Only connect the KBox B-202-CFLto the supplied external AC/DC power supply chosen to meet the products electrical specification, power consumption, power protection requirements and comply with the safety standards as stipulated by IEC 62368-1.
-
Page 25: Left And Right Side Views
KBox B-202-CFL - User Guide, Rev 1.0 4.3. Left and Right Side Views The right and left sides contain ventilation holes for air-output. The ventilation holes on the right side are contained within a removable PCIe expansion card door. The two pairs of threaded screw holes available on both sides (Figure 7, pos. 3) lower and (Figure 7, pos. 4) upper, are used to attach wall mount brackets, see Chapter 8.2: Mounting Brackets (option). -
Page 26: Top Cover And Bottom Side Views
KBox B-202-CFL - User Guide, Rev 1.0 4.4. Top Cover and Bottom Side Views The top cover consisting of a metal plate with ventilation holes for air-intake and a separate metal plate underneath with a circular opening above the internal fan. -
Page 27: 5/ System Extension
KBox B-202-CFL - User Guide, Rev 1.0 5/ System Extension Kontron recommends expanding the KBox B-202-CFL, before installing the product in the end environment. 5.1. System Storage and Expansion Card Combinations The supported drives and expansion cards depend on the technical specification of the mainboard variants (Smart or Value), and space limitation on the mainboard and within the chassis. -
Page 28: Table 3: M.2 Ssd Module And Mpcie Expansion Card Combinations
Up to 2x internal 2.5” SSD drive(s) with Chipset RAID KBox B-202-CFL Value supports only one PCIe x16 slot. The up to two internal 2.5” SSD drive(s) limits the number of usable PCIe slots to one. www.kontron.com // 28... -
Page 29: Mass Storage Devices
Table 3: M.2 SSD Module and mPCIe Expansion Card Combinations. For the KBox B-202-CFL Wi-Fi option the mPCIe socket is populated with a half-size mPCIe Wi-Fi card and the M.2 socket is restricted to a 2242 M.2 SSD module. -
Page 30: Expansion Cards
M.2 socket. For the allowed M.2 SSD module/mPCIe card combinations, see Table 3: M.2 SSD Module and mPCIe Expansion Card Combinations. For the KBox B-202-CFL Wi-Fi option the mPCIe socket is populated with a half-size mPCIe Wi-Fi card and the M.2 socket use is restricted to a 2242 M.2 SSD module. -
Page 31: 6/ Accessing Components
This chapter contains important information that users must read before opening the KBox B-202-CFL to access internal components. Additionally, read and observe the General Safety Instructions for IT-Equipment contained in this user guide. . Kontron recommends expanding the KBox B-202-CFL, before installing the product in the end environment. -
Page 32: Figure 11: Top Cover Fastening Screws
To install the top cover, perform the following: Place the KBox B-202-CFL on a flat, clean and ESD-safe surface. Hold the top cover over the main chassis and move downwards until the top cover is almost in the correct position above the main chassis. -
Page 33: Installing And Removing An On-Board Mpcie Expansion Card
KBox B-202-CFL - User Guide, Rev 1.0 6.1.1. Installing and Removing an On-board mPCIe Expansion Card To install an mPCIe card on the mainboard, perform the following: Remove the top cover as described in Chapter 6.1: Removing and Installing the Top Cover. -
Page 34: Installing And Removing A Pcie Card
KBox B-202-CFL - User Guide, Rev 1.0 Pull the M.2 SSD module out of the M.2 socket carefully. Close the Chassis as described in Chapter 6.1: Removing and Installing the Top Cover. 6.2. Installing and Removing a PCIe Card Before opening the PCIe expansion card door, observe the safety instructions within this chapter. -
Page 35: Figure 15: Pcie Slot Front Pin
KBox B-202-CFL - User Guide, Rev 1.0 Figure 15: PCIe Slot Front Pin Front pin slot 2 Front pin slot 1 Figure 16: PCIe Expansion Slot Holding Latch Holding latch for the PCIe card’s bracket tab Aline the expansion card with the corresponding internal PCIe slot. Push the expansion card carefully into the PCIe connector, while ensuring the expansion card’s bracket inserts into the holding latch (Figure 16, pos. -
Page 36: Opening And Closing The Drive Bay Cover
KBox B-202-CFL - User Guide, Rev 1.0 Insert an empty slot bracket if the PCIe slot is to remain unused, else proceed as described in the previous steps 5 to 6 to install a PCIe expansion card. Secure the PCIe expansion card door as described in the previous step 7. -
Page 37: Installing And Removing A 2.5" Ssd Drive
KBox B-202-CFL - User Guide, Rev 1.0 6.3.1. Installing and Removing a 2.5” SSD Drive Before installing a 2.5” SSD drive, observe the SSD drive manufacturer’s instructions. To install a 2.5” SSD in the drive bay, perform the following: Close all applications. Shut down the product properly using the power-on button and disconnect the mains power supply. -
Page 38: Installing And Configuring The 2.5" Ssd Dual M.2 Raid Module
KBox B-202-CFL - User Guide, Rev 1.0 6.3.2. Installing and Configuring the 2.5” SSD dual M.2 RAID Module The 2.5” SSD dual M.2 RAID module is factory installed and hardware configured as a RAID 1 array (default). Do not press the RAID module’s reset switch (Figure 21, pos. 3) without considering if a backup of the data is required. -
Page 39: Table 5: Raid Module Jumper Settings
SATA data and SATA power connectors and the reset button must be pressed for approximately 3 seconds. To perform this, use either (a) the KBox B-202-CFL’s drive bay or (b) an external SATA adapter and SATA source: Insert the 2.5” SSD dual M.2 RAID module into the SATA connector in the external drive bay with the side of the 2.5”... -
Page 40: Replacing A M.2 Ssd Module
To replace a faulty M.2 SSD module on the 2.5” SSD dual M.2 RAID module, perform the following: Remove the 2.5”SSD dual M.2 RAID module from the KBox B-202-CFL, see Chapter 6.3.2: Installing and Configuring the 2.5” SSD dual M.2 RAID Module. - Page 41 M.2 SSD module’s screw hole with the 2.5” SSD dual RAID module’s nut and secure with the screw retained in step 4. Kontron recommends replacing a faulty drive with a drive of the same capacity and type as the mirrored drive. When different capacity drives are used, the working capacity is only as large as the smallest drive’s capacity.
-
Page 42: 7/ Thermal Considerations
7.1. Active Cooling The KBox B-202-CFL is actively fan cooled. An internal fan draws in air through the top cover’s air-intake ventilation holes (Figure 23, pos. 1) and distributes the incoming air over the mainboard and other internal components before the air exits the ventilation holes on the right, left, front and rear sides (Figure 24, pos. -
Page 43: Mount Orientation
(top side facing upward) and vertical (all possible mount orientations). Do not mount the KBox B-202-CFL with the top cover facing downwards. When the top cover faces downwards not enough air is taken in to cool the processor adequately; causing overheating and/or melting. Hence, this creates a possible fire hazard due to hot substances exiting through the top cover’s ventilation holes. -
Page 44: 8/ Installation Instructions
KBox B-202-CFL - User Guide, Rev 1.0 8/ Installation Instructions The KBox B-202-CFL can be operated horizontally (top side facing upward) and vertical in all possible mount orientations. Before Installing the KBox B-202-CFL, observe the following instructions. Danger of Fire Mounting the KBox B 202-CFL with the top cover facing downward, may cause overheating or melting and hence may causing a fire hazard or personal injury. -
Page 45: Chassis Feet
To improve stability, positioning the chassis feet between mounting hole and outside edge of the corners. 8.1.1. Chassis Feet Mount (option) The KBox B-202-CFL with chassis feet can be operated in the upwards horizontal position only. Figure 26: Chassis Feet Mount Option Danger of Fire Mounting the KBox B 202-CFL with the top cover facing downward, may cause overheating or melting and hence may causing a fire hazard or personal injury. -
Page 46: Mounting Brackets (Option)
Front and rear panel: 10 mm (0.394") Bottom side ( no keep out area) To mount the KBox B-202-CFL using mounting brackets, perform the following: Consider which set of mounting brackets holes is required for the mounting option: ... -
Page 47: Figure 28: Keep Out Areas - With Top Cover Facing The Mount Surface
KBox B-202-CFL - User Guide, Rev 1.0 Fasten both mounting bracket to using a torx (08 X 60) screwdriver to the sides of the chassis. Use the mounting bracket’s key mounting holes (Figure 27, pos. 3), to mount on a wall or desktop while observing the specified clearance of 10 mm (keep out area) shown in Figure 28 and Figure 29. -
Page 48: Mounting Brackets On A Desktop
Use the lower mounting brackets holes on the left and right sides (Figure 7, Pos. 3) to mount on a desktop. To mount on a desktop no keep out area is required between the KBox B-202-CFl and the mount surface and the mounting bracket holes (Figure 27, pos. -
Page 49: Mounting Brackets On A Wall
Use the lower mounting holes on the left and right sides (Figure 7, pos. 3) to mount with the top cover facing outwards. No keep out area is required between the KBox B-202-CFl and the mount surface and the mounting bracket holes (Figure 27, pos. -
Page 50: Connecting The Wi-Fi Antenna (Option)
To use the Wi-Fi feature, install the two Wi-Fi antennas included in the scope of delivery to the two Wi-Fi antenna connectors on the rear side of the KBox B-202-CFL. Note that installing the Wi-Fi antenna increases the original keep out area on the rear side from 10 mm to approximately 45 mm. -
Page 51: 9/ Starting Up
KBox B-202-CFL - User Guide, Rev 1.0 9/ Starting Up Before switching on, observe the instructions in Chapter 1/: General Safety Instructions for IT Equipment and the instructions within this chapter. Operate in closed condition only It is only ensured that users do not have access to internal components during operation when the top cover is properly secured with the two top cover fastening screws. -
Page 52: Switching On /Off
Before switching on, read and observe the safety instructions at the start of this chapter. The power-on button switches on/off the KBox B-202-CFL. The power-on button includes an integrated power LED that lights up blue to indicate the powered on state. -
Page 53: 10/ Technical Data
KBox B-202-CFL - User Guide, Rev 1.0 Technical Data 10.1. Block Diagrams Figure 34: Block Diagram of KBox B-202-CFL Smart Variant without Wi-Fi KBox B-202-CFL (Smart) 2x DisplayPort Dual Channel 8th & 9th Den. DDR4-2666 Lntel® /ore™ UDIMM i3 /i5/i7... -
Page 54: Figure 35: Block Diagram Of Kbox B-202-Cfl Value Variant Without Wi-Fi
KBox B-202-CFL - User Guide, Rev 1.0 Figure 35: Block Diagram of KBox B-202-CFL Value Variant without Wi-Fi KBox B-202-CFL (Value) 1x DisplayPort Dual Channel 8th & 9th Den. DDR4-2666 Lntel® /ore™ UDIMM i3 /i5/i7 1x DVI-D (up to 32 GB) 2x LAN (GbE) 2x USB 3.1 Gen 1... -
Page 55: Technical Specification
KBox B-202-CFL - User Guide, Rev 1.0 10.2. Technical Specification Table 6: Mainboard Specification KBox B-202-CFL (Smart) KBox B-202-CFL (Value) Mainboard Type D3633-S D3634-S Form Factor Mini-ITX ( 170mm x 170 mm ) ( 6.7“ x 6.7“) Processor Gen. Intel® Core™ i3/i5/i7 Gen. -
Page 56: Table 9: External Interface Specifications
Mouse & Keyboard DC-In +12 V DC or Industrial 24 VDC (future option) Wi-Fi 2x Antenna (option) Factory configured with Kontron reference mPCIe Wi-Fi expansion card (half-size) Table 10: Internal Expansion Slots KBox B-202-CFL (Smart) KBox B-202-CFL (Value) Type mPCIe... -
Page 57: Table 11: External Expansion Slots
Due to internal space restrictions, the installation of internal 2.5” SSD drive(s) limits the number of usable PCIe slots to one. The KBox B-202-CFL Value variant supports only one PCIe slot (1x PCIe x16). Table 12: Software Specification KBox B-202-CFL (Smart) -
Page 58: Mechanical Specification
KBox B-202-CFL - User Guide, Rev 1.0 10.3. Mechanical Specification Table 14: Mechanical Specifications KBox B-202-CFL Dimensions Depth 190 mm (7.48”) Width 190 mm (7.48”) Height 120 mm (4.72”) Weight (Without package) 2.8 kg (6.17 1 lbs.) approx. Mounting Bracket 187 mm x 45 mm x 20 mm (7.36”... -
Page 59: Figure 38: Dimensions Top Cover
KBox B-202-CFL - User Guide, Rev 1.0 Figure 38: Dimensions Top Cover 190 mm 190 mm Figure 39: Dimensions Bottom Side 190 mm 130 mm 190 mm 130 mm www.kontron.com // 59... -
Page 60: Environmental Specification
KBox B-202-CFL - User Guide, Rev 1.0 Figure 40: Dimensions Right Side Figure 41: Dimensions Left Side 120 mm 138 mm 37 mm 138 mm 26 mm 190 mm 8.8 mm 11 mm 201 mm Figure 42: Dimensions with Mounting Brackets... -
Page 61: Directives And Standards
KBox B-202-CFL - User Guide, Rev 1.0 10.5. Directives and Standards The KBox B-202-CFL complies with the European Council Directive and the approximation of the laws of the member states. When supplied with optional Wi-Fi, the KBox B-202-CFL complies with the Radio Equipment Directive (RED) and the approximation of the laws of the member states. -
Page 62: Power Specification
10.6. Power Specification The external AC/DC Power Supply delivered with the KBox B-202-CFL is an AC/DC, 150 W PSU, supplying a nominal output voltage of 12 VDC. Only use the power supply delivered with the product and chosen to meet the product’s electrical power specification, power consumption and power protection requirements. -
Page 63: Power Protection
KBox B-202-CFL - User Guide, Rev 1.0 10.6.2. Power Protection The external AC/DC Power Supply delivered with the KBox B-202-CFL supports the power protection features required to protect the KBox B-202-CFL from damage or loss of data. Power protection features such as holdup time and brownout protect against peaks, fluctuations and interruptions in the mains power supply voltage, and help ensure operation without loss of data or damage to the product. -
Page 64: 11/ External Interface - Pin Assignments
KBox B-202-CFL - User Guide, Rev 1.0 11/ External Interface - Pin Assignments 11.1. DC IN Power Connector Pin Assignment The DC IN power connector is a barrel jack (5.5 mm/ 2.5 mm) with center pole and an input voltage of 12 V only. -
Page 65: Usb 2.0 Port Pin Assignment
KBox B-202-CFL - User Guide, Rev 1.0 11.3. USB 2.0 Port Pin Assignment Table 22: USB 2.0 Connector Pin Assignment Signal Name USB 2.0 Connector( Type A) +5 V (fused protected) Data- Data+ Low-active signals are indicated by a minus sign. -
Page 66: Display Port (Dp) V1.2 Connector Pin Assignment
KBox B-202-CFL - User Guide, Rev 1.0 11.5. Display Port (DP) V1.2 Connector Pin Assignment Table 25: Display Port (DP) Connector Pin Assignment Signal Name DP1 and DP 2 Connector Signal Name Link0+ Link0- Link1+ Link1- Link2+ Link2- Link3+ Link3-... -
Page 67: Ps/2 Keyboard Connector Pin Assignment
KBox B-202-CFL - User Guide, Rev 1.0 11.7. PS/2 Keyboard Connector Pin Assignment Table 27: PS/2 Keyboard Connector Pin Assignment Signal Name PS/2 KBD Connector Data +5V (fuse protected) Clock Keyboard_On (low asserted pulse) 11.8. PS/2 Mouse Connector Pin Assignment... -
Page 68: Serial Port Connector Pin Assignment
KBox B-202-CFL - User Guide, Rev 1.0 11.10. Serial Port Connector Pin Assignment Table 30: Serial Interface COM port (RS232) Connector Pin Assignment Signal Name Description 9-pin D-SUB Connector Data Carrier Detect Signal IN SOUT Signal OUT Data Terminal Ready... -
Page 69: 12/ Bios
KBox B-202-CFL - User Guide, Rev 1.0 BIOS The KBox B-202-CFL uses the AMI Aptio 5.x (UEFI) BIOS supported by the D3633-S and D3634-S mainboards and featuring a variety of enhanced functions specifically tailored to the KBox B-202-CFL’s hardware features: ... -
Page 70: Bios Update
If the <DEL> key is not press the POST continues with the test routines. The KBox B-202-CFL uEFI BIOS setup program uses a hot key navigation system. The hot key legend bar is located at the bottom of the setup screens. The following table provides a list of navigation hot keys available in the legend bar. - Page 71 Run the update file “Flash BIOS Update – Desk Flash Instant”. Perform the on-screen instructions. If the product fails to boot, the updated BIOS maybe damaged, contact Kontron Support. To update the BIOS using a FAT32 formatted USB stick, perform the following: Click on BIOS Update –...
-
Page 72: 13/ Raid
RAID The KBox B-202-CFL supports up to two RAID array options. The 2.5” SSD dual M.2 RAID module with two M.2 SSDs is installed in the external drive bay and is hardware configured to RAID 1 or 0. The two 2.5” SSD drives are installed in the internal card cage and are hardware configured as RAID 1 or 0. -
Page 73: Notifications
KBox B-202-CFL - User Guide, Rev 1.0 13.1.2. Notifications Notifications enables users to set an email address to receive notification emails for typical RAID events, when a specified threshold level is reached. Table 34: Notifications Examples Notifications RAID Broken RAID Created... -
Page 74: 14/ Technical Support
RMA number. The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the equipment is repaired or replaced within the stipulated warranty period. -
Page 75: 15/ Storage, Transportation And Maintenance
15.3.1. Replacing the Lithium Battery The lithium battery CR 2032 must be replaced with an identical 3 Volt battery or a Kontron recommended battery. To replace the on-board Lithium battery, perform the following: Remove the lithium battery from the holder by pulling the ejector spring outwards. -
Page 76: 16/ Warranty
16.1. Limitation/Exemption from Warranty Obligation In general, Kontron shall not be required to honor the warranty, even during the warranty period, and shall be exempted from the statutory accident liability obligations in the event of damage caused to the product due to failure to observe the following: ... -
Page 77: Appendix A: List Of Acronyms
KBox B-202-CFL - User Guide, Rev 1.0 Appendix A: List of Acronyms Table 36: List of Acronyms ACPI Advanced Configuration Power Interface Operating System AHCI Advanced Host Controller Interface Power Supply Unit BIOS Basic Input Output System RAID Redundant Array of Independent Disks... -
Page 78: About Kontron
KBox B-202-CFL – User Guide, Rev 1.0 About Kontron Kontron is a global leader in embedded computing technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
