10. Accessing Internal Components
6. For better accessibility of the internal PCIe slots, PCIe slot for Mini card and the mSATA SSD connectors you may also
remove the right side cover of the KBox C-101 (Fig. 33). Loosen the externally accessible fastening screws that secure
the right side cover (Fig. 32 and Fig. 22, pos. 2 and 3), Pull the right side cover out, to detach it from the sideways
mounted bolts. Put the right side cover and the screws aside for later use.
1
2
3
4
5
1 Fixing bolts to secure the the PCIe Mini card
2 1x Mini PCIe slot for PCIe Mini card
3 Screws to fix the PCIe slot bracket or the I/O
bracket of the PCIe card
4 Riser card with 2x PCIe x4 slots
36

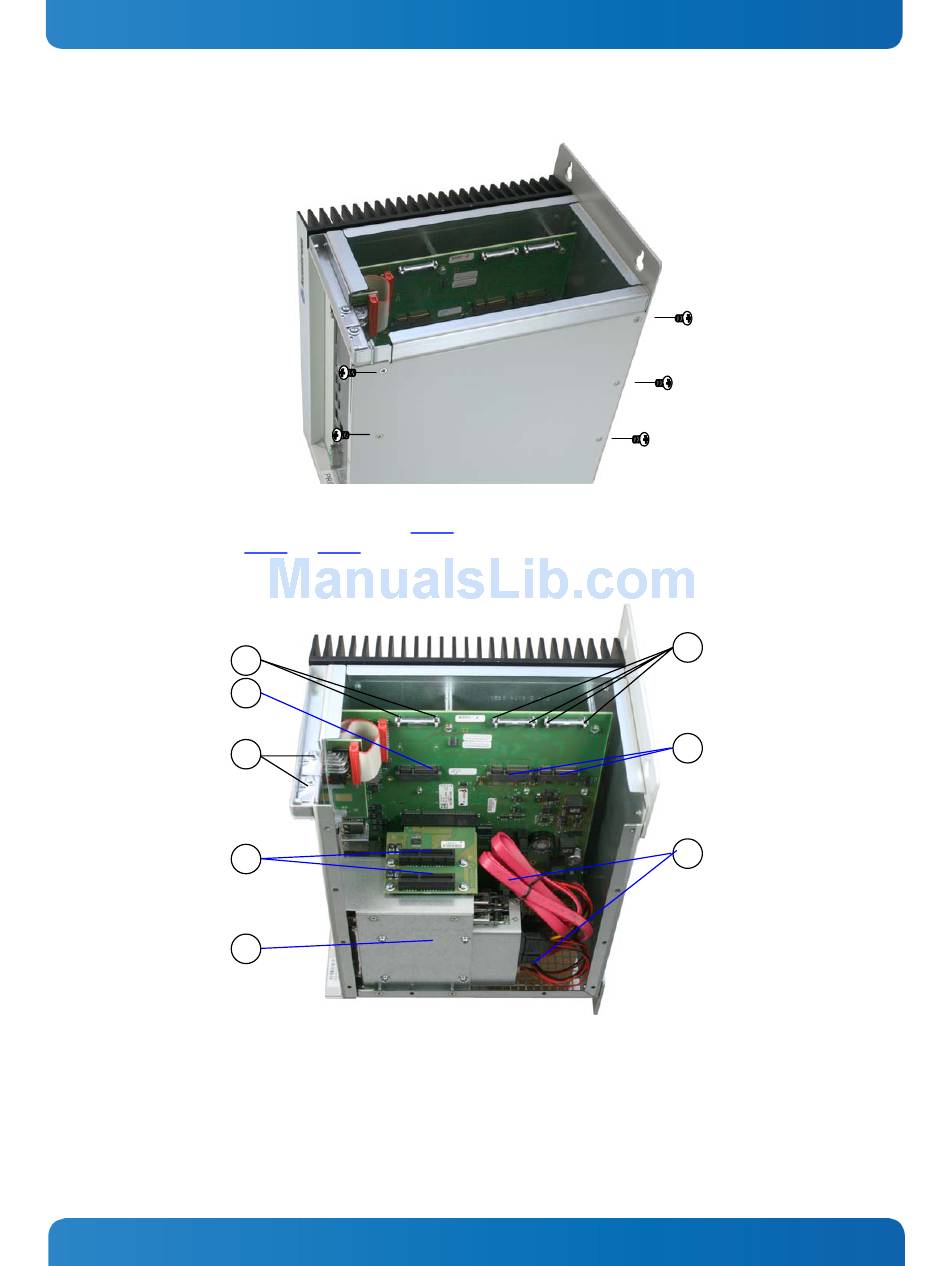

Fig. 32: KBox C-101 without top cover - removing the rihgt side cover

Fig. 33: KBox C-101 without top and right side cover
5 Mounting frame for removable SATA 2.5"HDD/SSD
6 SATA cable connections (power and data)
7 2x mSATA slots
8 Fixing bolts to secure the 2x 2.5" mSATA SSD
KBox C-101 – User's Guide (Version 2.00)
8
7
6
