Rear Panel Components

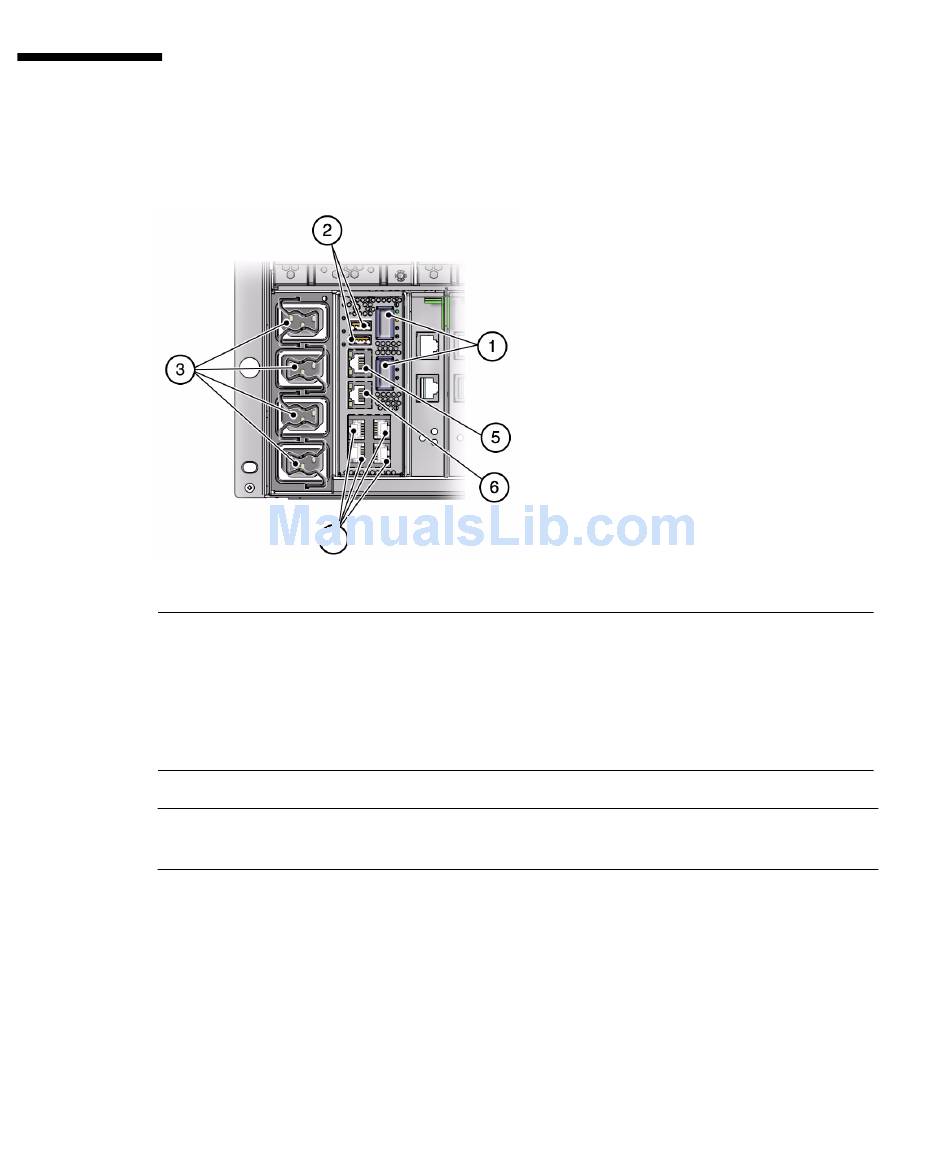

FIGURE:
Figure Legend
1
2
3
4
5
6
Note – You must follow the proper sequence when connecting cables to the server.
Do not connect the power cords until all data cables have been connected.
Related Information
"Front Panel Components" on page 3
■
"Cabling Requirements" on page 35
■
"Install the CMA" on page 32
■
"Secure Cables Using the CMA" on page 42
■
4
SPARC T4-4 Server Installation Guide • May 2014
Rear Panel Connectors
QCFP ports
USB ports
AC power ports
10-Gigabit Ethernet ports
SER MGT port
NET MGT Port
