Removing And Installing Rear Door Trim - Volkswagen Golf Variant 2007 Workshop Manual

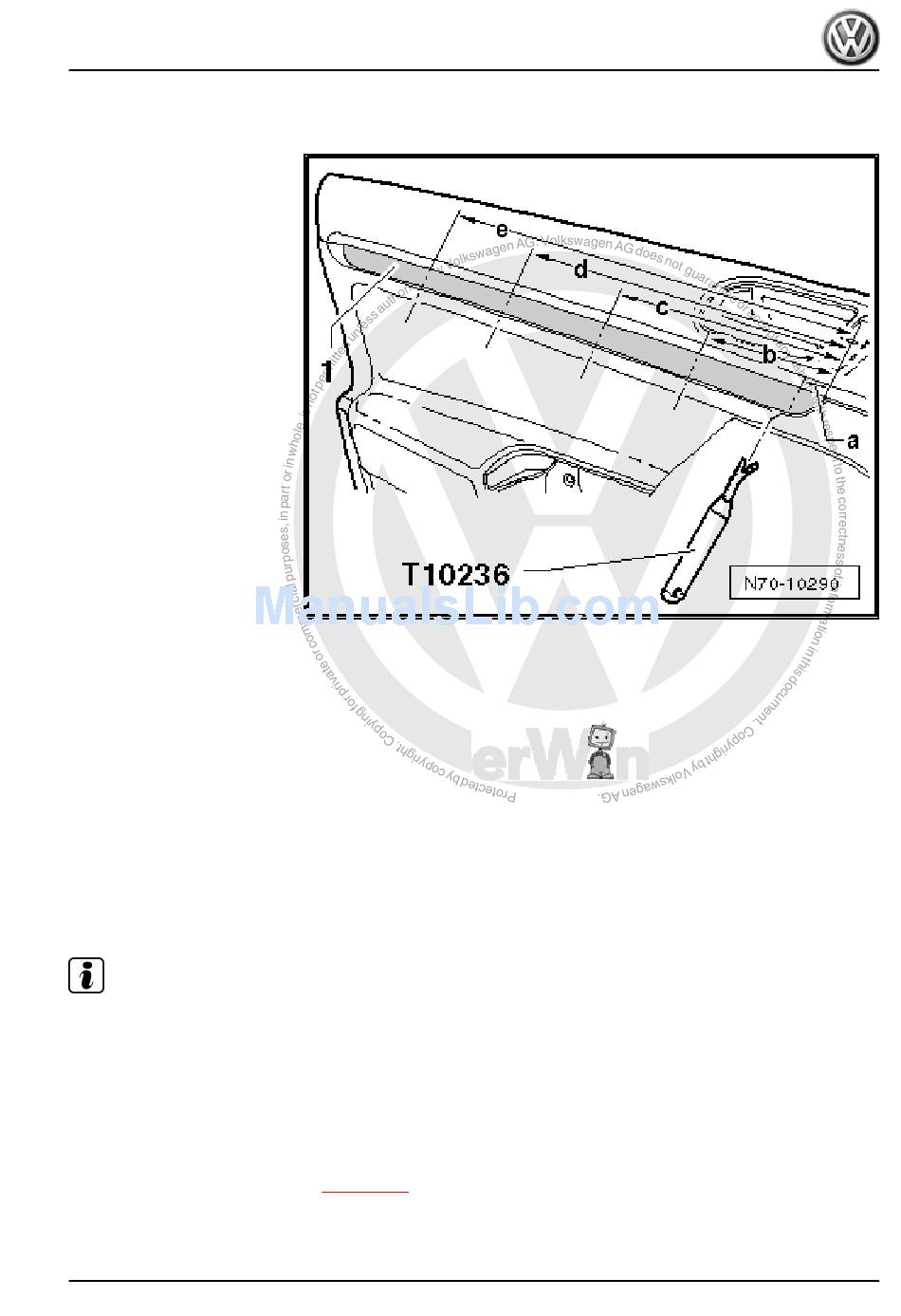

– Carefully lever trim strip -1- out of mountings 24 mm from front
edge -dimension a- using release tool -T10236- .
– Lever trim strip out of remaining mountings as described. Di‐
mensions:
♦ -Dimension b = 120 mm-
♦ -Dimension c = 230 mm-
♦ -Dimension d = 338 mm-
♦ -Dimension e = 445 mm-
– Pull trim strip out of door trim in direction of travel.
2.4.2 Installing
– Install in reverse order of removal.
2.5

Removing and installing rear door trim

Note
Removal and installation of trim is described for the rear right
door. Follow same instructions for rear left door trim as appropri‐
ate.
2.5.1 Removing
– Switch off ignition.
Only vehicles with manual window regulators
– Remove window crank handle
– Using a removal wedge -3409- , lever upper part of grip mould‐
ing -1- out of door handle in door trim.
