4: Advanced Node Board Setup
38
4. Align pin 1 of the CPU (the corner marked with a triangle) with the notched corner of the
CPU socket.
Caution: In step 5, do not drop the CPU on the socket. Do not move the CPU
!
horizontally or vertically, and do not rub the CPU against any surface or any of the
contacts which may damage the CPU and/or contacts.
5. Once aligned, carefully lower the CPU straight down into the socket.

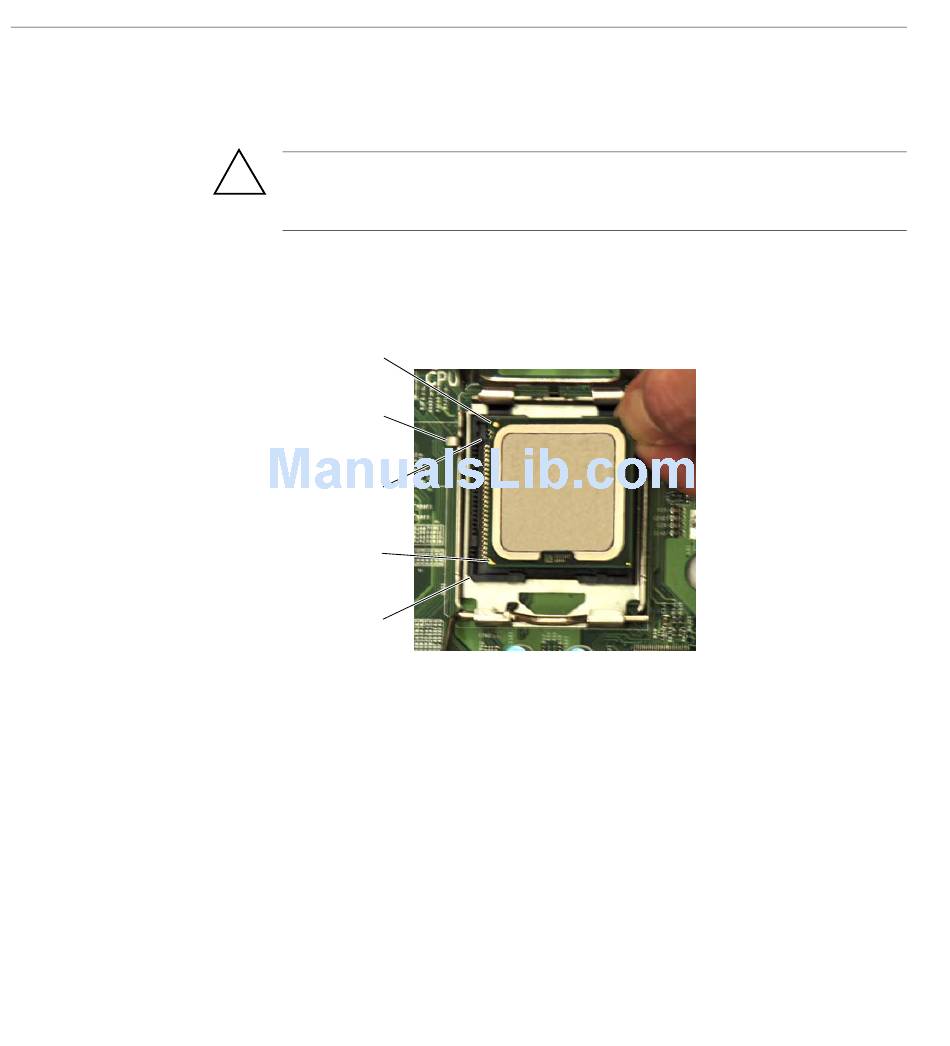

6. Find the corner of the CPU that has a semi-circle cutout below a gold dot (CPU key). This
corner should be aligned with the cutout on the socket (socket key).
Gold dot
Socket key Socket key
CPU key
CPU pin 1
Notched corner
7. With the CPU in the socket, inspect the four corners of the CPU to make sure that it is
properly installed.
