InfiniBand Link/Activity LEDs (LE2/LE3)

007-5466-001
Table 4-34 InfiniBand Link/Activity LED Descriptions (LE2/LE3)
Notes
Two InfiniBand LED Indicators (LE2/LE3) are
located near the InfiniBand connector (refer to
Figure 4-18). The green LED (LE2) is the
InfiniBand Link LED while the yellow LED
(LE3) indicates activity.
InfiniBand VGA COM2
LE3 LE2
BIOS
ATI
Speaker
ES1000
JPG1
JP1
JP7
JWOL
Battery
JBT1
JWOR
J18
JI2C1
JI2C1
SGPIO
JPL1
JPL2
South Bridge
ESB2
JUSB2
JL1
North Bridge
5400P
LE1
JWD
JF1
CPU2 CPU1
Secondary Primary
ATX power header ATX power header
J17

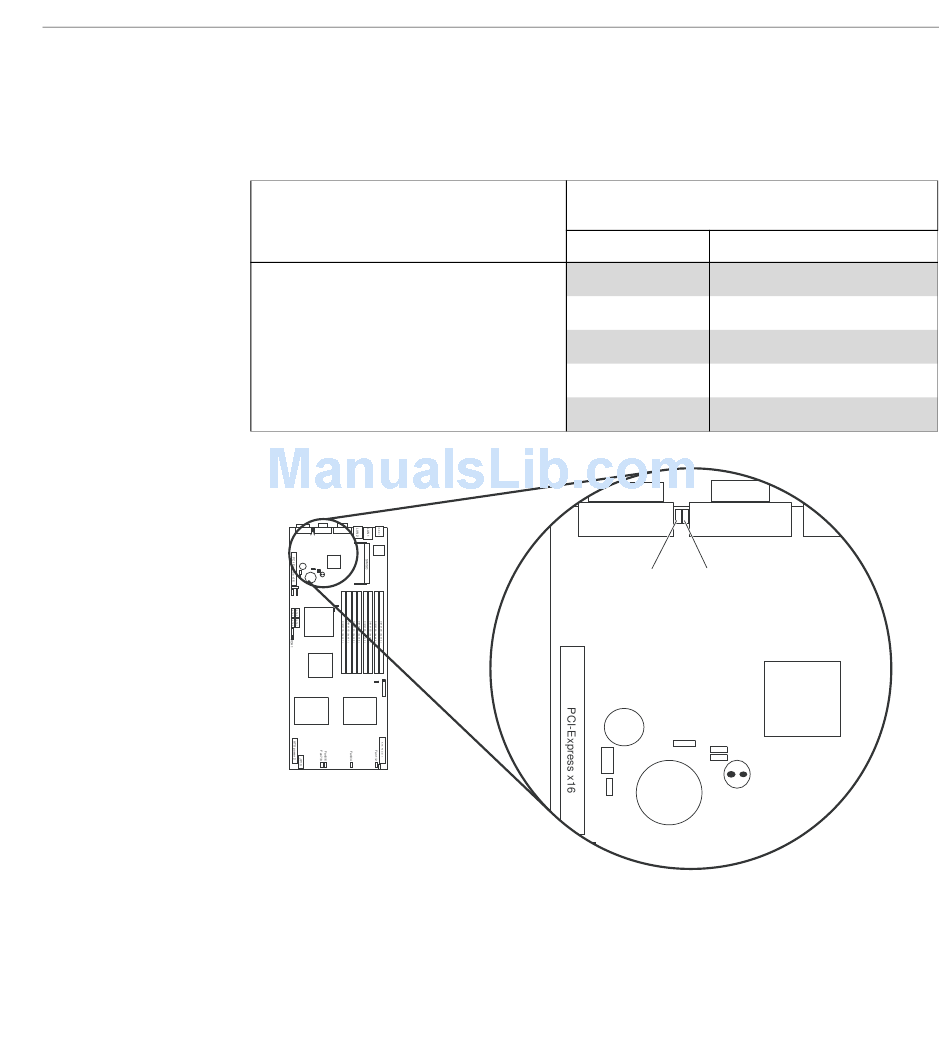

Figure 4-18 InfiniBand Link LED Location (LE2)
Node Board LED Descriptions
InfiniBand Link/Activity LEDs
LE2/LE3
LED Color
LE2 Green (solid) InfiniBand connected
LE2 (Off) No connection
LE3 Yellow (solid) InfiniBand active
LE3 Yellow (dim) InfiniBand connected but idle
Off No connection
InfiniBand VGA
LE2
LE3
Speaker
JPG1
JP1
JP7
JWOL
Battery
JBT1
JWOR
J18
JI2C1
Description
COM2
ATI
ES1000
