Remote Console Options

007-5466-001
6. Power On: Click this icon to power on the remote server.
7. Power down: Click this icon to power down the remote server.
8. Reset: Click this icon to reset the remote server.
9. Remote Console Preview Screen: This window displays the preview of the remote console
screen. Click on this window to go to the remote console screen.
After the remote console screen is displayed, click on the Options button in the upper right corner
to display the Options Menu (refer to Figure B-24).

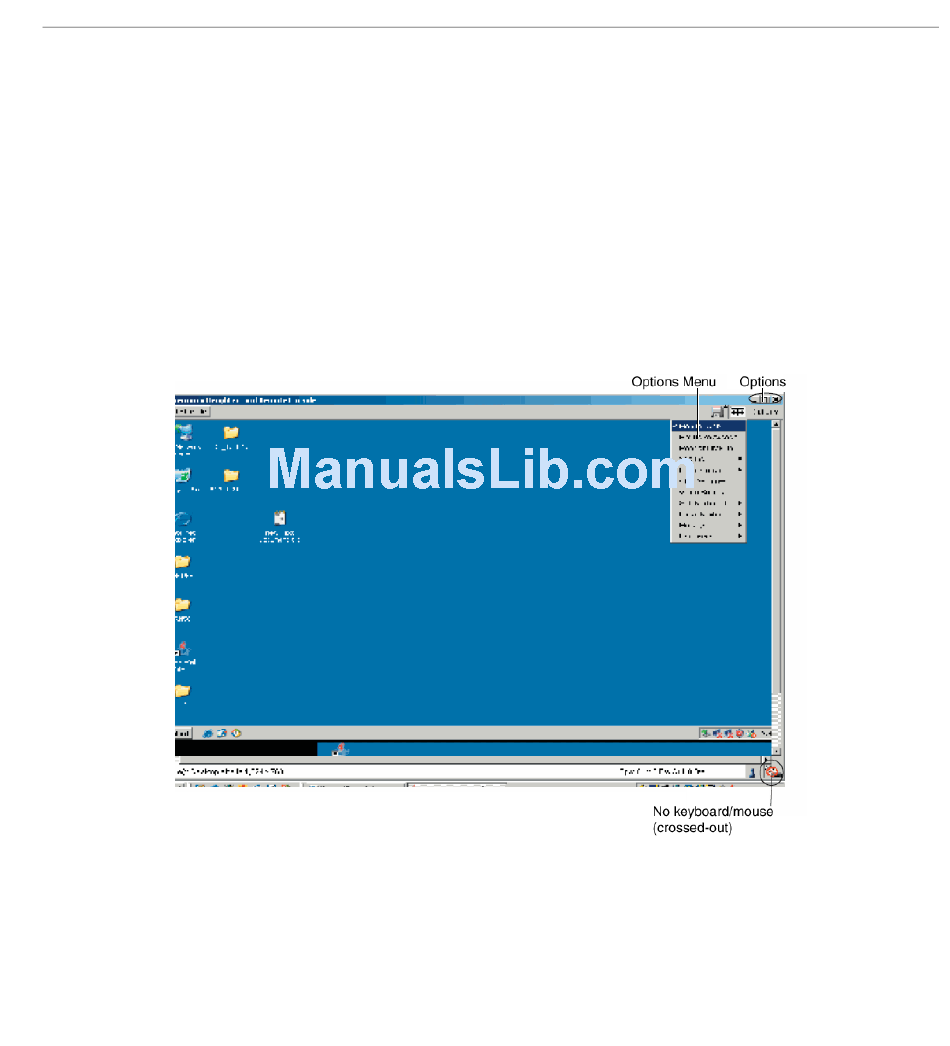

Figure B-24 Remote Console Options
Remote Console Main Page
193
