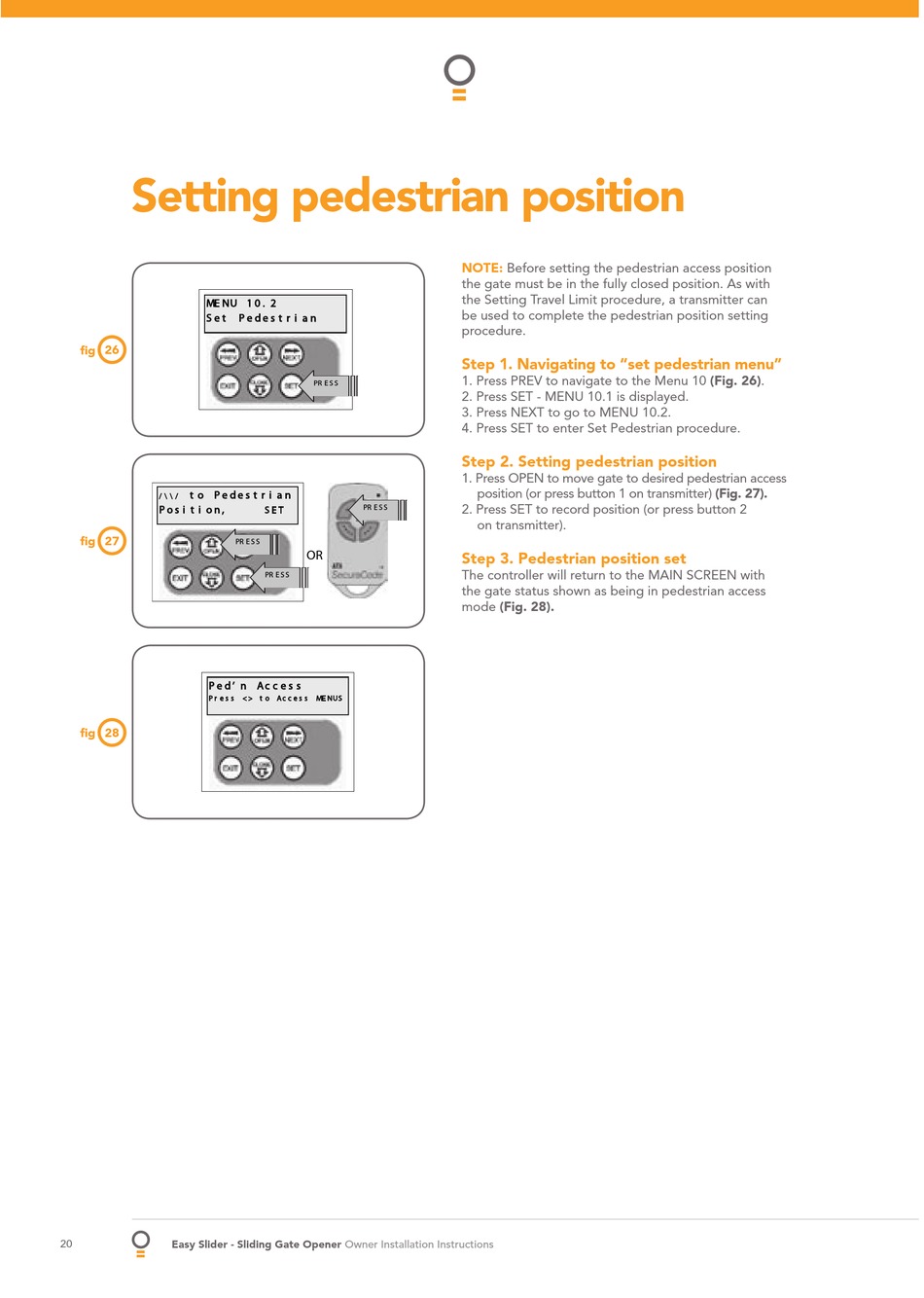

Setting pedestrian position

� � � � � � � �
� � �
fig 26
� � � � � � � � � � � �
� � � �
� � � � � � � � �
fig 27
� � � � � � � � � � �
� � � � �
fig 28
20 Easy Slider - Sliding Gate Opener
� � � � � � � � � �
�� � � �
�� � � �
� � �
�� � � �
��
�� � � �
� � � � � � � � � � � � � � �
Owner Installation Instructions
NOTE: Before setting the pedestrian access position
the gate must be in the fully closed position. As with
the Setting Travel Limit procedure, a transmitter can
be used to complete the pedestrian position setting
procedure.
Step 1. Navigating to "set pedestrian menu"
1. Press PREV to navigate to the Menu 10 (Fig. 26).
2. Press SET - MENU 10.1 is displayed.
3. Press NEXT to go to MENU 10.2.
4. Press SET to enter Set Pedestrian procedure.
Step 2. Setting pedestrian position
1. Press OPEN to move gate to desired pedestrian access
position (or press button 1 on transmitter) (Fig. 27).
2. Press SET to record position (or press button 2
on transmitter).
Step 3. Pedestrian position set
The controller will return to the MAIN SCREEN with
the gate status shown as being in pedestrian access
mode (Fig. 28).
