Removing the lower bezel

When your work with some devices, such as the drives in bays 4 through 7, you
must first remove the lower bezel to access the devices.
To remove the lower bezel, complete the following steps.
1. Read the safety information that begins on page vii and "Installation guidelines"
2. If you are replacing a non-hot-swap component, turn off the server and all
3. Unlock the side cover.

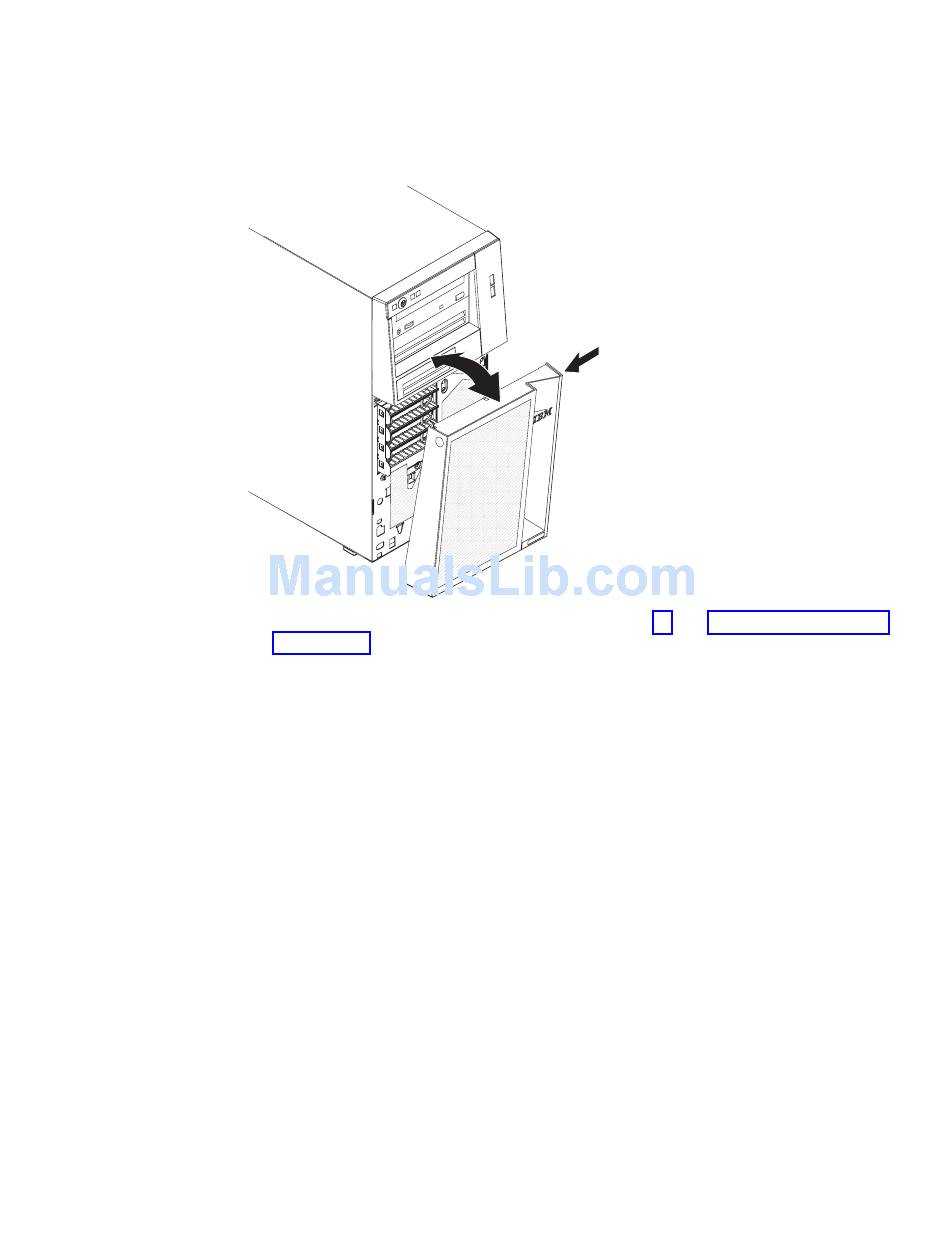

4. Press the round blue release button on the right side of the lower bezel and tilt
5. If you are instructed to return the lower bezel, follow all packaging instructions,
on page 73.
attached devices; then, disconnect all power cords and external cables.
Note: You do not have to remove the side cover to remove the lower bezel.
the lower bezel forward to disengage and remove it from the chassis.
and use any packaging materials for shipping that are supplied to you.
