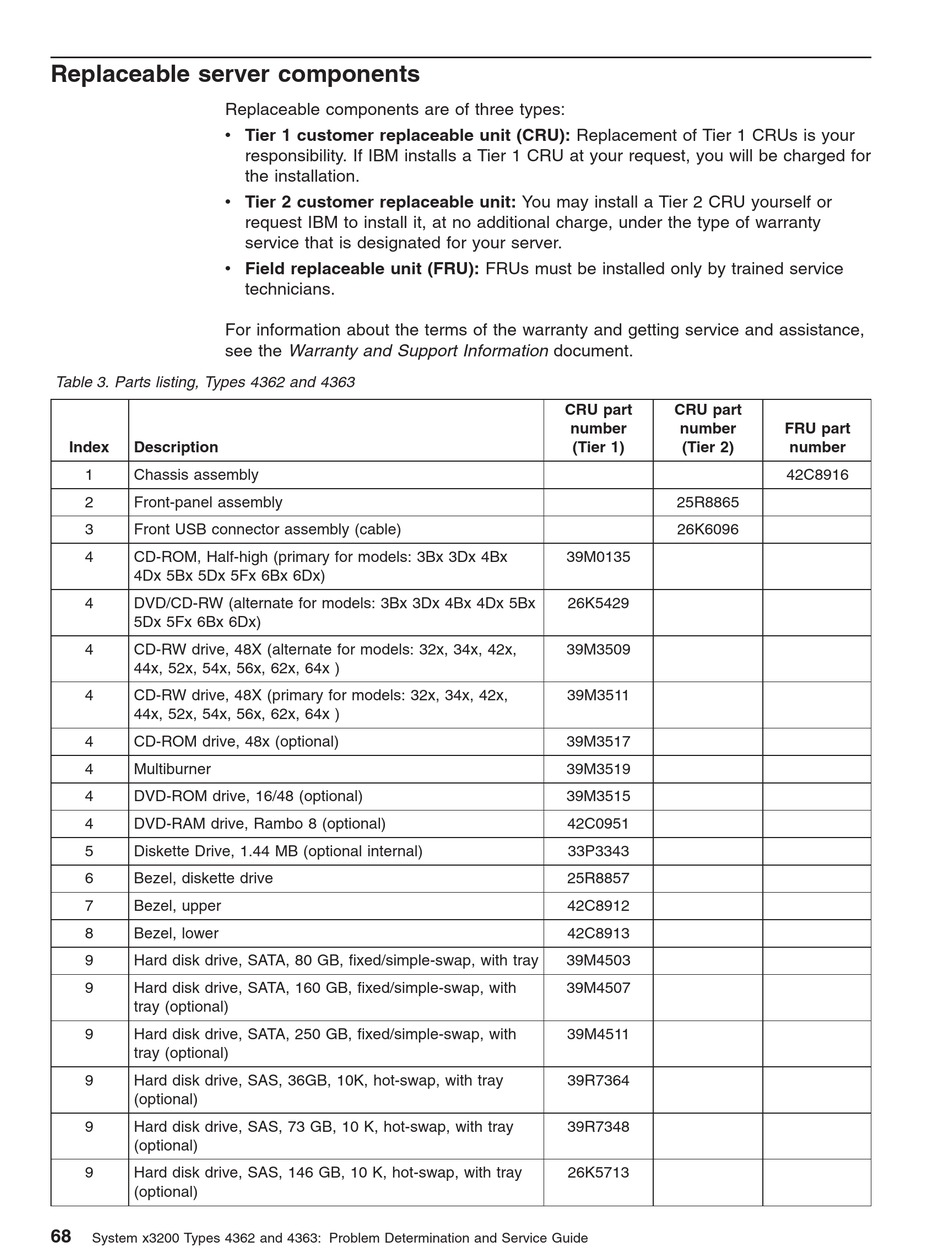

Replaceable server components

Replaceable components are of three types:
v Tier 1 customer replaceable unit (CRU): Replacement of Tier 1 CRUs is your
v Tier 2 customer replaceable unit: You may install a Tier 2 CRU yourself or
v Field replaceable unit (FRU): FRUs must be installed only by trained service
For information about the terms of the warranty and getting service and assistance,
see the Warranty and Support Information document.
Table 3. Parts listing, Types 4362 and 4363
Index Description
1 Chassis assembly
2 Front-panel assembly
3 Front USB connector assembly (cable)
4 CD-ROM, Half-high (primary for models: 3Bx 3Dx 4Bx
4Dx 5Bx 5Dx 5Fx 6Bx 6Dx)
4 DVD/CD-RW (alternate for models: 3Bx 3Dx 4Bx 4Dx 5Bx
5Dx 5Fx 6Bx 6Dx)
4 CD-RW drive, 48X (alternate for models: 32x, 34x, 42x,
44x, 52x, 54x, 56x, 62x, 64x )
4 CD-RW drive, 48X (primary for models: 32x, 34x, 42x,
44x, 52x, 54x, 56x, 62x, 64x )
4 CD-ROM drive, 48x (optional)
4 Multiburner
4 DVD-ROM drive, 16/48 (optional)
4 DVD-RAM drive, Rambo 8 (optional)
5 Diskette Drive, 1.44 MB (optional internal)
6 Bezel, diskette drive
7 Bezel, upper
8 Bezel, lower
9 Hard disk drive, SATA, 80 GB, fixed/simple-swap, with tray
9 Hard disk drive, SATA, 160 GB, fixed/simple-swap, with
tray (optional)
9 Hard disk drive, SATA, 250 GB, fixed/simple-swap, with
tray (optional)
9 Hard disk drive, SAS, 36GB, 10K, hot-swap, with tray
(optional)
9 Hard disk drive, SAS, 73 GB, 10 K, hot-swap, with tray
(optional)
9 Hard disk drive, SAS, 146 GB, 10 K, hot-swap, with tray
(optional)
68
System x3200 Types 4362 and 4363: Problem Determination and Service Guide
responsibility. If IBM installs a Tier 1 CRU at your request, you will be charged for
the installation.
request IBM to install it, at no additional charge, under the type of warranty
service that is designated for your server.
technicians.
CRU part CRU part
number number
(Tier 1) (Tier 2)
25R8865
26K6096
39M0135
26K5429
39M3509
39M3511
39M3517
39M3519
39M3515
42C0951
33P3343
25R8857
42C8912
42C8913
39M4503
39M4507
39M4511
39R7364
39R7348
26K5713
FRU part
number
42C8916
