System-board external connectors

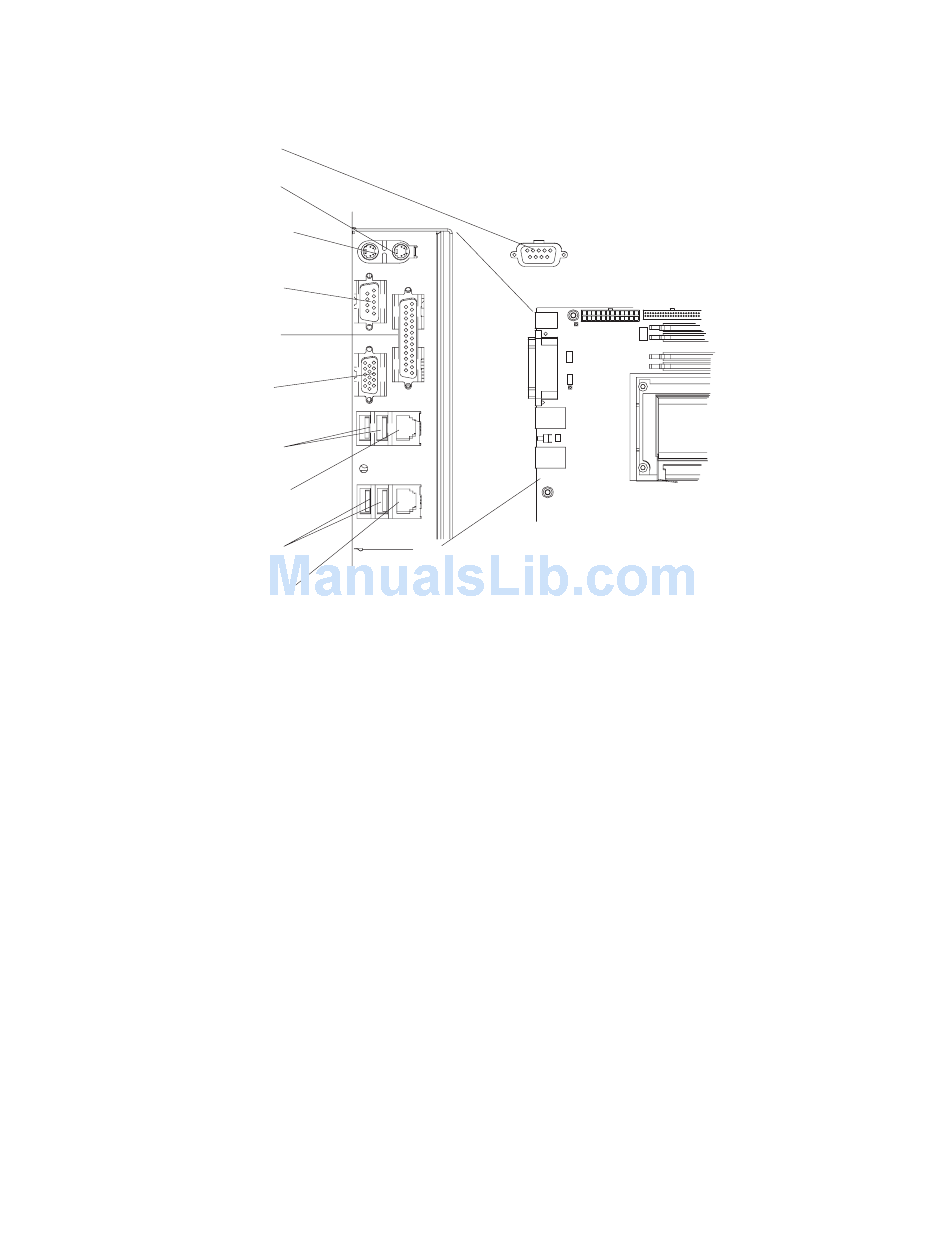

The following illustration shows the external input/output (I/O) connectors on the
system board.
Serial 2
Mouse
Keyboard
Serial 1
Parallel
Video
USB (2)
Ethernet
USB (2)
Remote Supervisor
Adapter II SlimLine
Ethernet
10
System x3200 Types 4362 and 4363: Problem Determination and Service Guide
