Removing a simple-swap hard disk drive
This procedure applies only to server models that have simple-swap SATA hard disk
drives.
Attention:
power from the server before you remove or install a simple-swap hard disk drive.
To remove a simple-swap hard disk drive, complete the following steps.
1. Read the safety information that begins on page vii and "Installation guidelines"
2. Turn off the server and all attached devices; then, disconnect all power cords
3. Unlock the side cover. The side cover does not have to be removed.
4. Remove the lower bezel (see "Removing the lower bezel" on page 79).

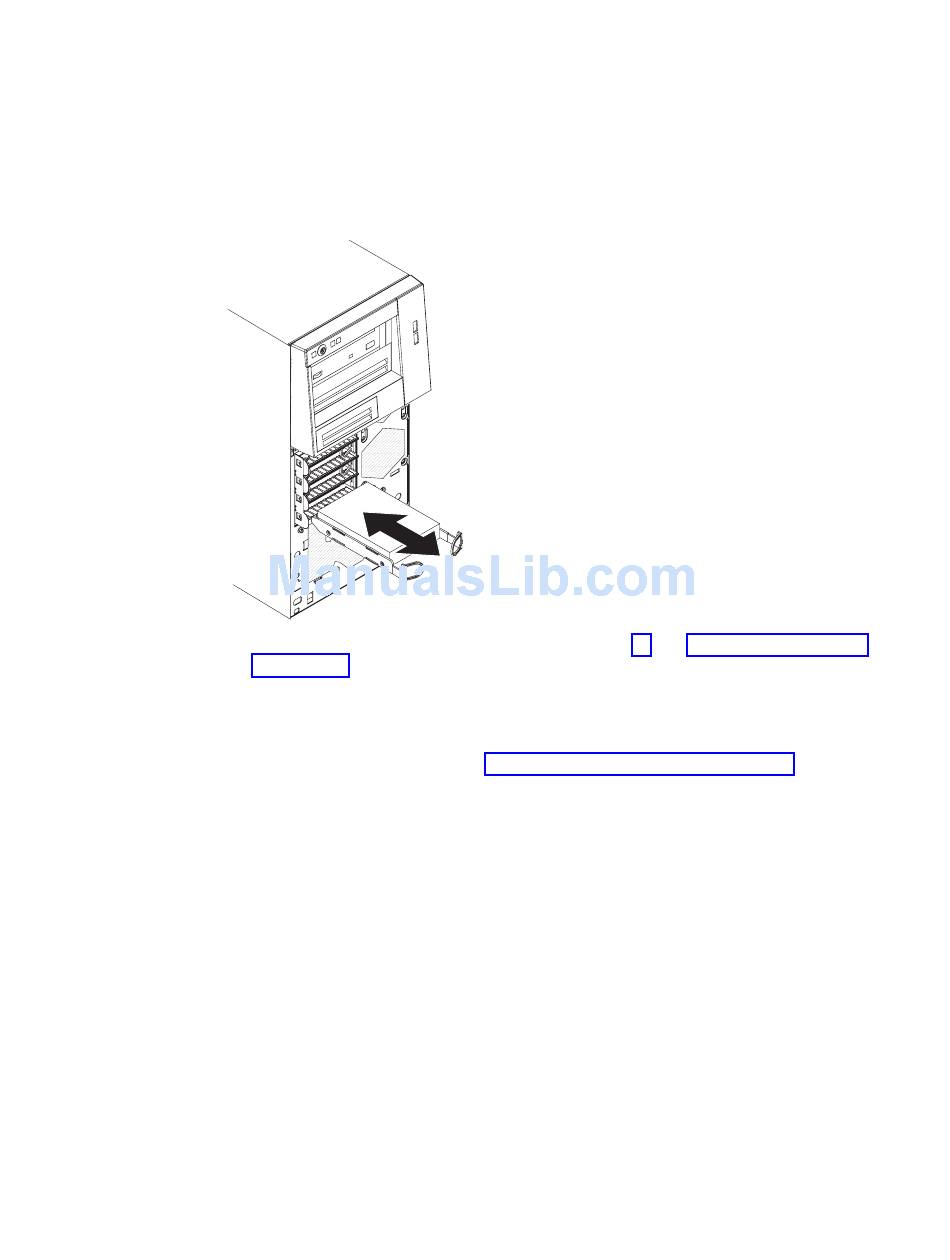

5. Pull the loops of the drive assembly that is to be removed toward each other;
6. If you are instructed to return the drive assembly, follow all packaging
96
System x3200 Types 4362 and 4363: Problem Determination and Service Guide
Simple-swap hard disk drives are not hot-swappable. Disconnect all
on page 73.
and external cables.
then, pull the assembly out of the bay.
instructions, and use any packaging materials for shipping that are supplied to
you.
