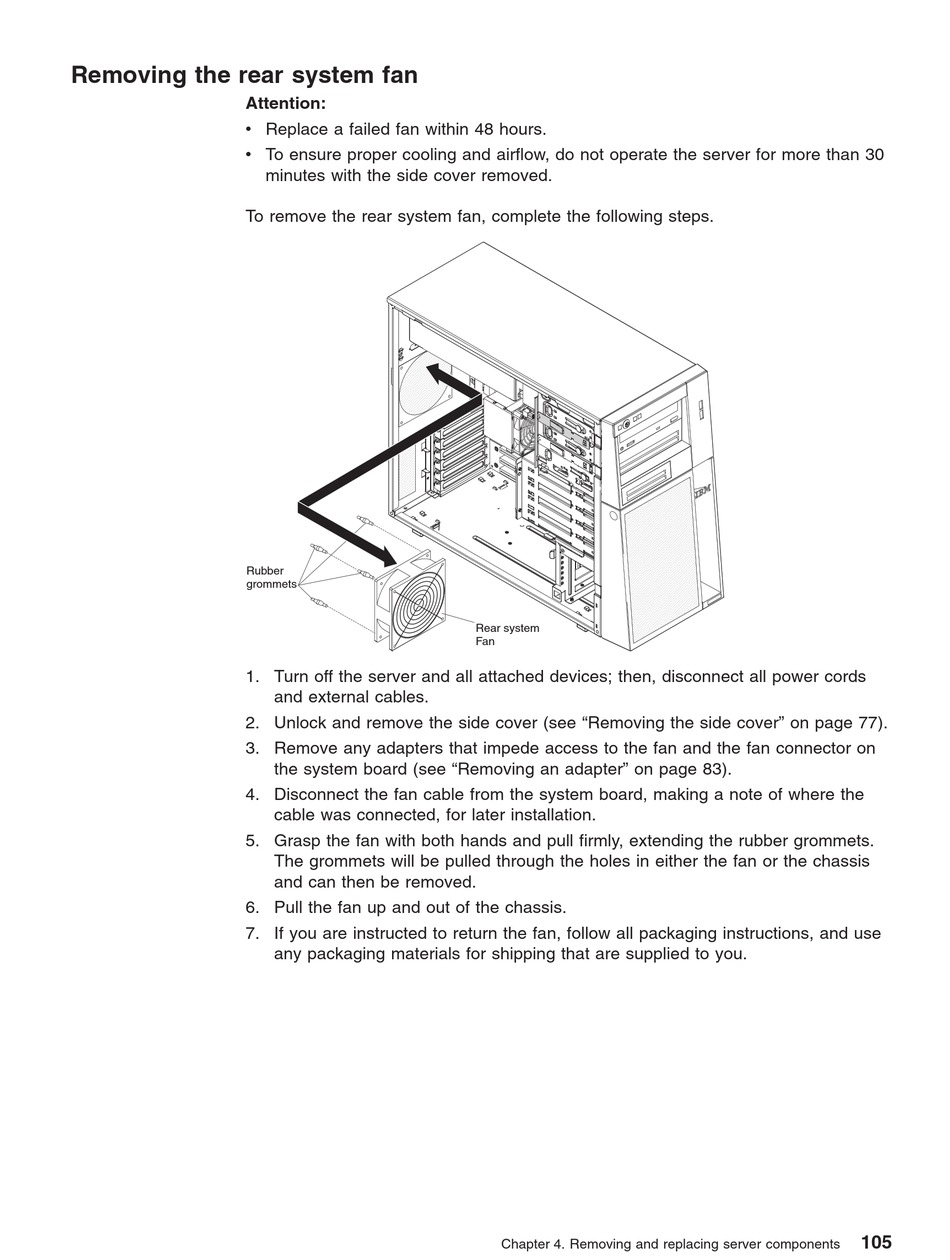

Removing the rear system fan

Attention:
v Replace a failed fan within 48 hours.
v To ensure proper cooling and airflow, do not operate the server for more than 30
To remove the rear system fan, complete the following steps.
Rubber
grommets
1. Turn off the server and all attached devices; then, disconnect all power cords
2. Unlock and remove the side cover (see "Removing the side cover" on page 77).
3. Remove any adapters that impede access to the fan and the fan connector on
4. Disconnect the fan cable from the system board, making a note of where the
5. Grasp the fan with both hands and pull firmly, extending the rubber grommets.
6. Pull the fan up and out of the chassis.
7. If you are instructed to return the fan, follow all packaging instructions, and use
minutes with the side cover removed.
and external cables.
the system board (see "Removing an adapter" on page 83).
cable was connected, for later installation.
The grommets will be pulled through the holes in either the fan or the chassis
and can then be removed.
any packaging materials for shipping that are supplied to you.
Rear system
Fan
