When installing:
The wording on the belt must be legible from the
outside
•
Make sure the belt is correctly seated
•
Install belt complete with driven variator
•
Check by turning variator manually, to ensure
that belt is not trapped
X
Tightening torque:
Fastener, driven variator ............................... 60 Nm

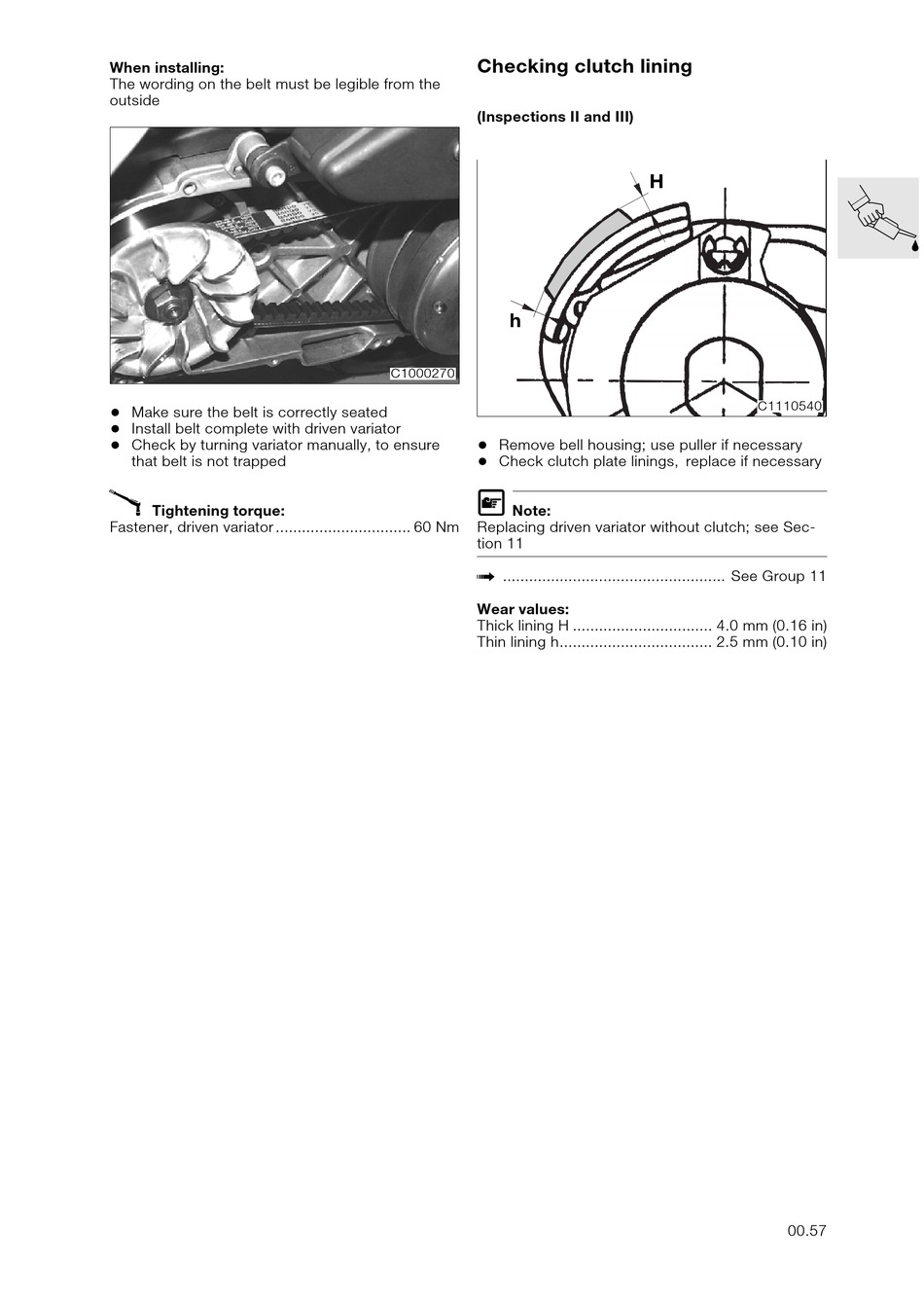

Checking clutch lining

(Inspections II and III)
h
C1000270
•
Remove bell housing; use puller if necessary
•
Check clutch plate linings, replace if necessary
L
Note:
Replacing driven variator without clutch; see Sec-
tion 11
................................................... See Group 11
a
Wear values:
Thick lining H ................................ 4.0 mm (0.16 in)
Thin lining h................................... 2.5 mm (0.10 in)
H
C1110540
00.57
